That new NVMe drive can cut game load times, speed up Windows boot, and give your library room to grow - but only if it is installed in the right M.2 slot and initialized correctly. Learning how to install nvme ssd storage is usually a quick upgrade, yet a few details matter: motherboard compatibility, PCIe lane sharing, heatsinks, and whether you are adding a drive or replacing your main boot drive.

For most gaming PCs, plan on 20 to 40 minutes. Take your time with the tiny mounting screw. It is far easier to install an M.2 drive carefully than to hunt for a dropped screw inside a case full of RGB cables.

Before You Install an NVMe SSD

An NVMe SSD uses the M.2 physical form factor, but not every M.2 drive is NVMe. Some older M.2 drives use the SATA protocol instead. They may look similar, yet their supported motherboard slots and real-world speeds can be very different. Check the label on the drive and your motherboard manual before opening the system.

Your motherboard should list its M.2 slots as PCIe, NVMe, SATA, or a combination. A PCIe M.2 slot supports NVMe drives. Most current gaming boards support PCIe Gen 4 NVMe SSDs, while newer platforms may offer Gen 5. Generations are backward compatible, so a Gen 4 drive works in a Gen 3 slot, but it will run at Gen 3 speeds. Likewise, a Gen 5 SSD can run in a Gen 4 slot, though paying extra for top-end Gen 5 performance may not make sense unless your platform supports it and your workload benefits from it.

Also check for lane-sharing notes in the manual. On certain motherboards, using a specific M.2 slot can disable one or more SATA ports or affect PCIe expansion lanes. This does not mean anything is wrong. It simply means the board is allocating a limited number of chipset lanes. For a gaming PC with one graphics card and a couple of drives, it is usually straightforward, but confirm before you build around every available storage connection.

You will need a small Phillips-head screwdriver, your NVMe SSD, and the motherboard M.2 screw or tool-free latch. If the board includes an M.2 heatsink, keep its screw and thermal pad handy. Avoid using random screws from a case accessory box because the thread can be different.

Shut Down and Prepare the PC

Turn off the PC completely, switch off the power supply, and remove the power cable. Press the case power button once after unplugging to discharge residual power. Move the system onto a clean, stable surface with good lighting.

Remove the side panel and touch an unpainted metal part of the case before handling components. You do not need to overthink static electricity, but avoid working on carpet, avoid handling the gold connector pins, and do not force any part into place.

Locate the M.2 slot. It is a slim horizontal connector on the motherboard, often positioned between the CPU socket and graphics card or below the GPU area. Higher-end boards commonly hide it under a long metal heatsink labeled with the motherboard or gaming brand. If your graphics card blocks access to the preferred slot, remove the card first. This adds a few minutes, but it prevents you from installing the drive at an awkward angle or damaging the GPU.

Choose the Best M.2 Slot

The top M.2 slot, usually closest to the CPU, is commonly the best choice for a primary boot drive. On many current boards, it connects directly to CPU PCIe lanes and offers the strongest performance. That said, read the motherboard manual instead of relying only on slot location. Some boards reserve certain slots for Gen 5 drives, while others have different lane arrangements.

If this is a secondary game-storage drive, a chipset-connected slot is normally more than fast enough. Modern NVMe performance will not suddenly make every game deliver more FPS, but it can reduce loading screens, improve large file transfers, and keep a nearly full older drive from becoming a storage headache.

How to Install NVMe SSD Hardware

If there is an M.2 heatsink, remove its retaining screw and lift the cover away. Check the thermal pad underneath. Many pads have a clear protective film that must be peeled off before the heatsink goes back on. Forgetting this film can trap heat and reduce the value of the heatsink.

Find the standoff position matching your drive length. Most consumer NVMe SSDs are 2280, meaning 22 mm wide and 80 mm long. The motherboard may have markings for 2242, 2260, 2280, and 22110. The standoff must align with the semicircular mounting notch at the end of the SSD.

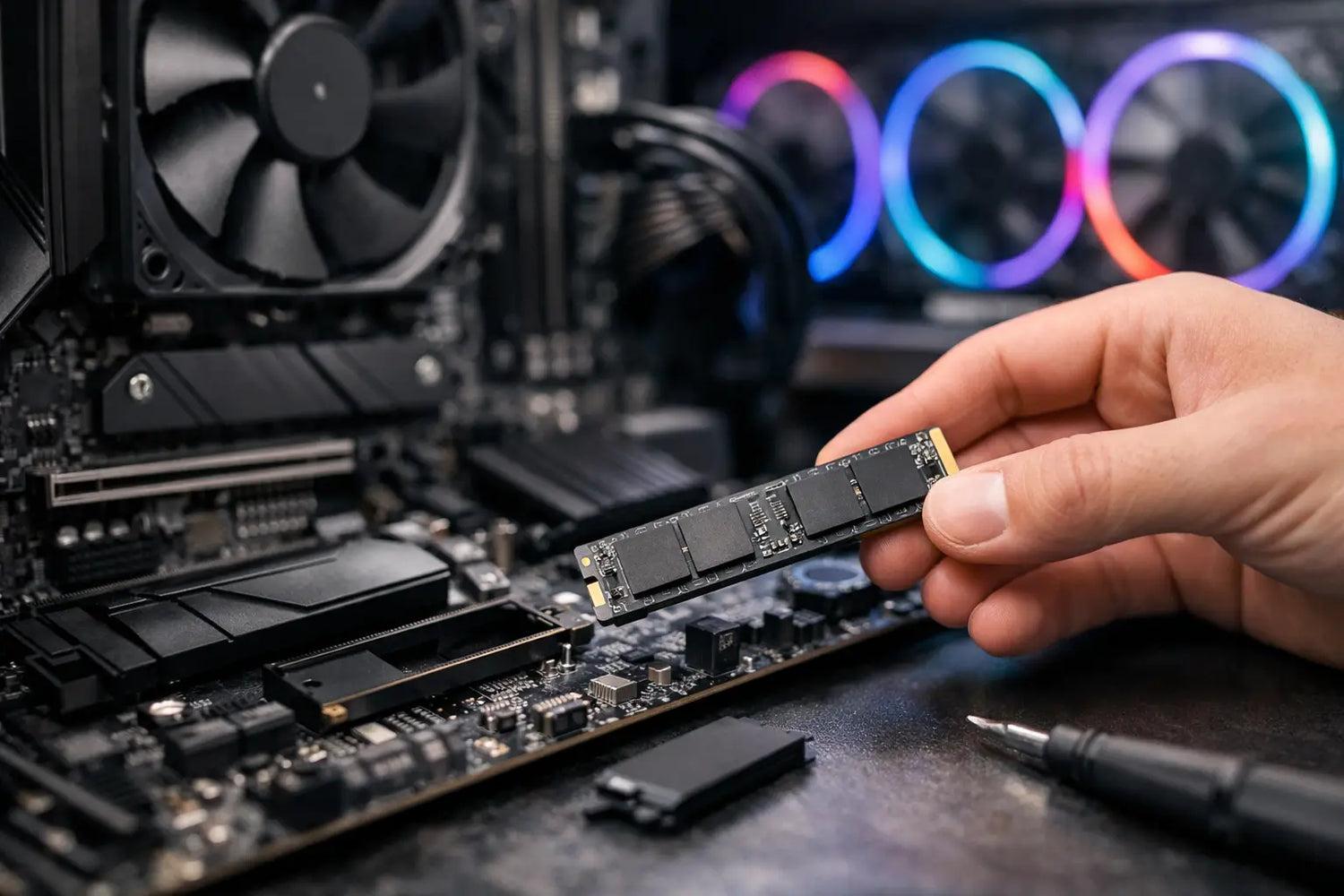

Insert the NVMe SSD into the M.2 connector at roughly a 20 to 30-degree angle. The key notch makes the orientation obvious. It should slide in with gentle, even pressure. Do not press hard. If it does not seat cleanly, remove it, check the alignment, and try again.

Once the connector is fully seated, lower the free end of the drive toward the standoff. Secure it with the tiny M.2 screw or engage the motherboard's tool-free retention latch. Tighten only until snug. Overtightening can damage the screw, the standoff, or the SSD circuit board.

Reinstall the heatsink if your board provides one. Make sure the thermal pad contacts the SSD controller and NAND area as designed, then tighten the cover evenly. A heatsink is especially worthwhile for high-performance Gen 4 and Gen 5 drives during long game transfers, video editing, or sustained downloads. For a lower-power drive in an airflow-friendly system, temperatures may be fine without one, but the included board heatsink is usually worth using.

Put the graphics card back in if you removed it, reconnect any PCIe power cables, close the side panel, and reconnect the PC power cable.

Check That BIOS Sees the New Drive

Start the PC and enter BIOS or UEFI, commonly by pressing Delete or F2 during startup. Look for NVMe storage information, M.2 configuration, or the boot menu. Your new SSD should appear by model name and capacity.

If it does not appear, power down and reseat the drive. Then verify that you used an NVMe-compatible M.2 slot rather than a SATA-only slot. Check the motherboard manual for any BIOS setting that controls PCIe storage modes. A BIOS update can help with compatibility on older boards, but do not update BIOS casually during an otherwise simple storage upgrade. Only do it when the manufacturer identifies a relevant fix or your hardware needs it.

If you are keeping your existing Windows installation, make sure the old boot drive remains first in the boot order. A blank new SSD is not bootable until you clone Windows or install it fresh.

Initialize the SSD in Windows

For an additional storage drive, boot into Windows normally. Right-click the Start button, open Disk Management, and Windows should prompt you to initialize the new disk. Choose GPT for nearly every modern Windows 11 gaming PC. MBR is mainly for legacy systems and has partition-size limitations.

After initialization, the drive will show as unallocated space. Right-click that space, create a New Simple Volume, assign a drive letter, and format it as NTFS. Give it a useful label such as Games, Projects, or Media. Once formatting finishes, the drive is ready for Steam libraries, game captures, creative files, and large downloads.

Do not use a benchmark as the only proof that the upgrade worked. Open File Explorer, confirm the capacity is correct, and move a small file to the drive. Then check temperatures with your preferred hardware-monitoring software after installing a few games or transferring a large folder.

Moving Windows to the New SSD

Replacing your old boot drive takes more planning than adding storage. You have two good paths: clone the existing drive or perform a clean Windows installation.

Cloning preserves your programs, settings, game launchers, and files. It is convenient when the new drive has enough capacity for all used space on the old drive. Before cloning, back up important files, update critical drivers if needed, and confirm the cloning software supports your source and destination drives. After cloning, shut down and set the new NVMe SSD as the first boot device in BIOS. Keep the old drive disconnected for the first successful boot if you want to avoid Windows selecting the wrong boot entry.

A clean install takes longer, but it can be the better move if your old Windows installation has years of unused software, startup clutter, or persistent issues. Install Windows onto the new drive, update chipset and graphics drivers, then restore your games and files from backup. For a fresh gaming build, this is often the cleanest route.

If any part of the upgrade feels uncertain, DOTATECH technicians can help verify compatibility, install the drive, and make sure the system is tested before it goes back to your setup. A fast SSD should feel like an upgrade from the first boot, not another troubleshooting mission.

Once the drive is visible, formatted, and running at the expected speed, start moving the games you actually play. Save the biggest capacity for the titles, recordings, and creative projects that deserve the fastest storage - then power up, game on.
