A CPU cooler can look perfectly installed and still deliver disappointing temperatures, loud fan ramps, or sudden thermal throttling mid-match. The usual culprit is not the cooler itself. It is uneven mounting pressure, a forgotten protective film, the wrong standoffs, or a case airflow plan that was never considered. Knowing how to mount CPU cooler hardware correctly protects your processor, your frame rates, and the money you put into your build.

This is one job worth slowing down for. Whether you are fitting a compact tower air cooler onto a budget gaming build or installing a 360 mm AIO on a high-end Ryzen or Intel system, the mounting process decides whether that cooler performs like it should.

Before You Mount the Cooler, Confirm Compatibility

Do not start with thermal paste. Start with the parts list. CPU coolers are platform-specific at the mounting level, even when the cooler box supports multiple sockets. Check that the mounting kit includes the correct hardware for your motherboard socket, such as AMD AM4 or AM5, or Intel LGA 1700, LGA 1851, and other supported platforms.

Also check physical clearance. A tall dual-tower air cooler can conflict with RGB RAM, a top-mounted radiator can run into motherboard heatsinks, and a front-mounted radiator can reduce graphics card clearance. Your case specification matters just as much as the cooler specification.

For an air cooler, compare its height against the case's maximum CPU cooler clearance. For an AIO, confirm that the radiator size, thickness, and fan configuration fit the intended top or front mounting position. A 360 mm radiator is not automatically better if it forces awkward tubing, blocks airflow, or simply does not fit.

Have a Phillips-head screwdriver, isopropyl alcohol, a lint-free cloth or coffee filter, and the cooler manual ready. Most modern coolers include thermal paste, mounting brackets, screws, and a backplate. Keep each set of screws separated. Many look nearly identical but use different threads or lengths.

Prepare the Motherboard and CPU Socket Area

If you are building from scratch, mount the CPU cooler while the motherboard is outside the case whenever possible. You get a clear view of the backplate, better screwdriver access, and less chance of dropping a screw onto the board. Some cases have a rear CPU cutout that makes later installation possible, but access varies.

Install the CPU first and lock the socket retention arm. If thermal paste is already on the CPU heat spreader from a previous cooler, clean it completely before proceeding. Apply a small amount of isopropyl alcohol to a lint-free material and wipe until the metal surface is clean and dry.

For AMD systems, note whether your cooler uses the motherboard's stock plastic retention clips or requires you to remove them and retain the original AMD backplate. Many aftermarket air coolers and AIOs use the stock backplate but replace the plastic brackets with their own standoffs. Do not let the backplate fall away from the rear of the board when the brackets come off.

For Intel systems, install the supplied backplate behind the motherboard before fitting standoffs on the front. Make sure its adjustable tabs are set to the correct socket position. A backplate fitted for an older Intel socket may appear close enough while leaving the mounting points misaligned. Close enough is not good enough here.

How to Mount CPU Cooler Hardware Step by Step

The exact brackets differ by brand, but the safe mounting logic is nearly universal: secure the correct backplate, apply thermal paste, place the cooler straight down, and tighten each mounting point evenly.

1. Install the backplate and standoffs. Hold the backplate flush against the rear of the motherboard, then hand-tighten the correct standoffs from the front. They should be secure but not forced. Cross-threading a standoff can damage the motherboard mounting hole.

2. Attach the mounting bars. Fasten the metal brackets in the orientation shown by the cooler manual. Before tightening them fully, verify the cooler will face the right direction. An air cooler should normally push air toward the rear exhaust fan, not toward the front intake. With an AIO, plan tube routing before committing to bracket orientation.

3. Apply thermal paste. If the cooler's cold plate has factory-applied paste, leave it alone. If not, place a pea-sized dot in the center of the CPU for most mainstream desktop processors. Large high-end desktop chips may need a slightly different pattern, but do not spread paste thickly across the entire chip unless the manufacturer specifically directs it. Too much paste creates a mess; too little can leave poor coverage.

4. Remove the protective film. Check the bottom of the cooler cold plate immediately before installation. This clear plastic film is easy to miss and guarantees terrible temperatures if left in place. It is one of the most common and most preventable installation mistakes.

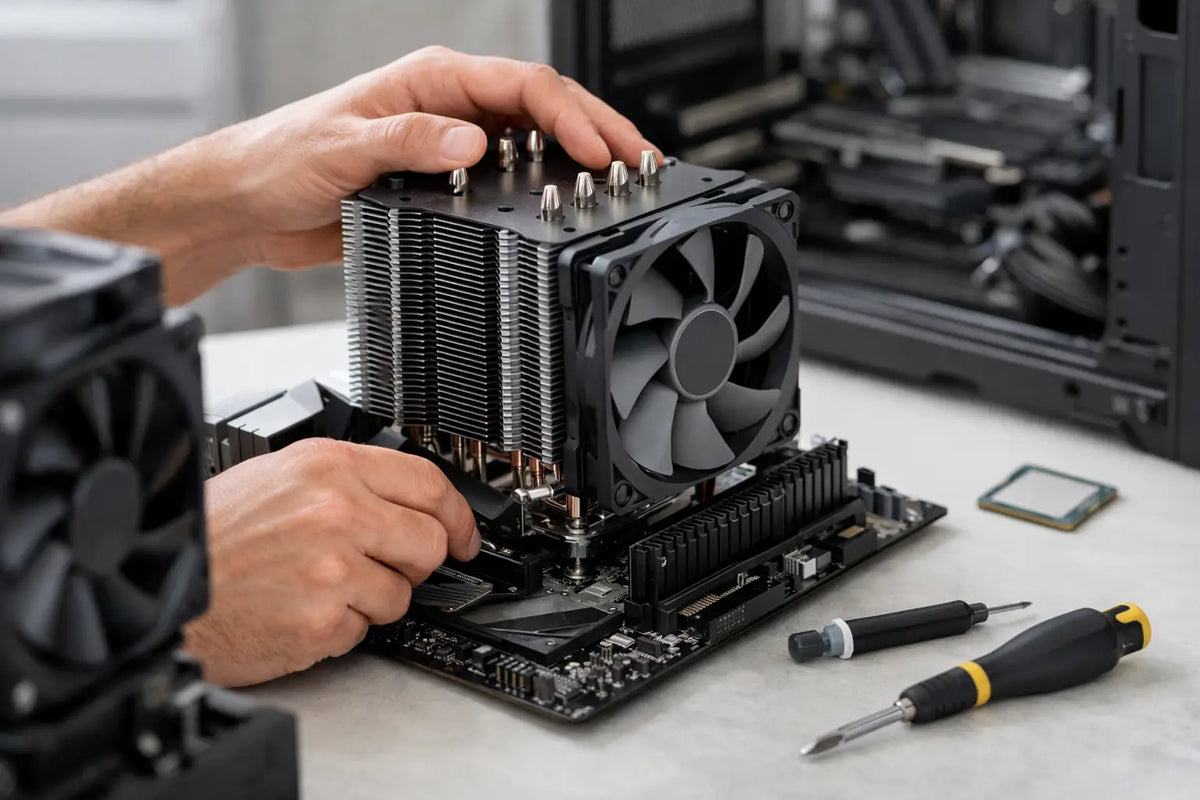

5. Lower and tighten the cooler evenly. Bring the cooler straight down onto the CPU. Avoid sliding it around once it touches the paste. Start all screws a few turns first, then tighten in an X pattern: top left, bottom right, top right, bottom left. Make several light passes rather than fully tightening one corner at a time. Stop when the screws reach their designed limit or feel firmly seated. Do not muscle them tighter.

Even pressure matters because the CPU heat spreader and cooler cold plate need full, consistent contact. A tilted cooler can create hot spots that make a powerful processor throttle under load even with an expensive cooling solution.

Fan Direction and AIO Radiator Placement Matter

A correctly mounted cooler still needs a sensible airflow path. In a standard gaming tower, front and bottom fans usually bring cool air in, while rear and top fans exhaust warm air. Your CPU cooler should work with that path.

On a tower air cooler, the fan frame usually has small arrows showing blade rotation and airflow direction. Position the front fan to pull air through the heatsink toward the rear exhaust. If you have two fans, the second fan typically sits on the rear side of the heatsink and continues pushing air outward.

For an AIO, radiator placement depends on the case and component mix. A top-mounted radiator acting as exhaust is often a clean choice because heat naturally rises and the graphics card still receives fresh front intake air. A front-mounted radiator can provide cooler air to the CPU, but it may send warmer air toward the GPU. Neither arrangement is always best. A GPU-heavy gaming system may favor top exhaust, while a CPU-focused rendering machine may benefit from front intake radiator placement.

Tube orientation deserves attention too. Avoid positioning the pump as the highest point in the loop when possible. For a front-mounted radiator, tubes at the bottom are often preferred because air collects at the top of the radiator rather than near the pump. For a top-mounted radiator, the pump naturally sits below the radiator, which is generally favorable.

Connect the Right Headers Before Closing the Case

Connect a standard air cooler fan to the motherboard header labeled CPU_FAN. For dual-fan coolers, use the included splitter if needed so both fans respond to CPU temperature. If your motherboard has a dedicated CPU_OPT header, that can also be used for a second CPU cooler fan.

AIO wiring varies by model. The pump may connect to AIO_PUMP, PUMP_FAN, or CPU_FAN depending on the cooler and motherboard instructions. The radiator fans should still be controlled based on CPU temperature, either through CPU_FAN, a splitter, or the cooler's controller. If the motherboard warns that no CPU fan is detected, do not ignore it until you have confirmed the pump and fan connections are configured correctly in BIOS.

Route fan and RGB cables before reinstalling side panels. Keep cables away from fan blades, and avoid sharply bending AIO tubes or pinching them against the case frame.

Power On and Verify Temperatures

Your first boot is a functional check, not the finish line. Enter BIOS or UEFI and confirm that the CPU fan or pump reports an RPM reading. Then check the CPU temperature after a few minutes at idle. Exact numbers vary by CPU, room temperature, cooler, BIOS settings, and background activity, but a rapid climb toward thermal limits at idle is a warning sign.

After installing Windows and drivers, run a controlled gaming session or a reputable CPU stress test while monitoring temperatures and clock behavior. Modern CPUs can safely run warmer than older generations, particularly under all-core loads, so do not panic over one number. Look for patterns: sustained throttling, fans stuck at maximum speed, crashes, or temperatures that spike instantly after starting a light workload.

If temperatures are clearly wrong, shut down and inspect the basics: protective film removed, correct standoffs used, paste applied, cooler screws tightened evenly, fans spinning in the intended direction, and pump connected to the right header. Remounting a cooler is normal troubleshooting, not failure.

A clean, correctly mounted cooler gives your CPU the thermal headroom to boost as designed instead of fighting heat every time the action gets intense. If you would rather have that fitment, airflow, cable management, and temperature testing handled by technicians, DOTATECH can help build or service a gaming PC in Klang Valley. Your setup should run hard, stay cool, and look ready for the next upgrade.
