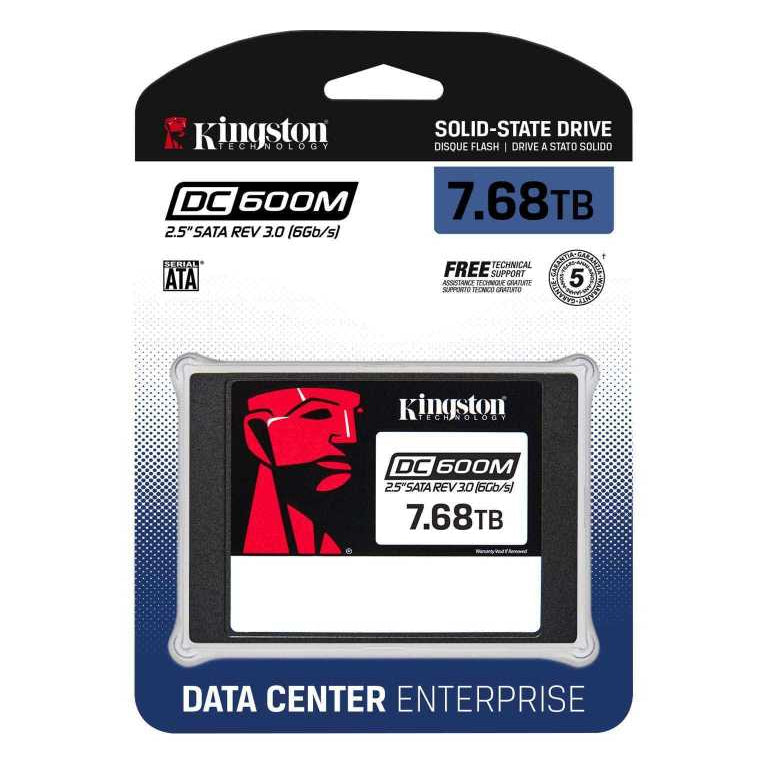

● Designed for data center environments
● On-board power loss protection (PLP)
● Consistent latency and IOPS, reliable QoS
● Includes Acronis cloning software
● TCG Opal 2.0, AES 256-bit encryption
● 560MB/s read, 470MB/s write
Form factor
2.5 inch
Interface
SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s)
Capacities
480GB, 960GB, 1.92TB, 3.84TB, 7.68TB
NAND
3D TLC
DRAM Cache
Yes
Sequential read/write
480GB – 560MBs/470MBs
960GB – 560MBs/530MBs
1.92TB – 560MBs/530MBs
3.84TB – 560MBs/530MBs
7.68TB – 560MBs/530MBs
Steady-state 4k random read/write
480GB – 94,000/41,000 IOPS
960GB – 94,000/65,000 IOPS
1.92TB – 94,000/78,000 IOPS
3.84TB – 94,000/59,000 IOPS
7.68TB – 94,000/34,000 IOPS
Quality of service (latency)2,3,4(99.999)Read/Write
480GB – 180/110 uSec
960GB – 3.84TB – 200/300 uSec
7.68TB – 240/170 uSec
Typical latency - read/write
<200 µs / <30 us2,3,4
Hot-plug capable
Static and dynamic wear levelling
Enterprise SMART tools
Reliability tracking, usage statistics, life remaining, wear levelling, temperature
Hardware-based power loss protection
Yes
Endurance (TBW)
480GB – 876TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
960GB – 1752TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
1.92TB – 3504TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
3.84TB – 7008TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
7.68TB – 14016TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
Power consumption
Idle: 1.30W
Average: 1.45W
Max read: 1.6W
Max write: 3.6W
Storage temperature
-40℃ ~ 85℃
Operating temperature
0℃ ~ 70℃
Dimensions
69.9mm x 100mm x 7mm
Weight
92.34g
Vibration operating
2.17G Peak (7–800Hz)
Vibration non-operating
20G peak (10–2000Hz)
MTBF
2 million hours
UBER
≤10 -17
Warranty/support
Limited 5-year warranty with free technical support
