SPECIFICATIONS

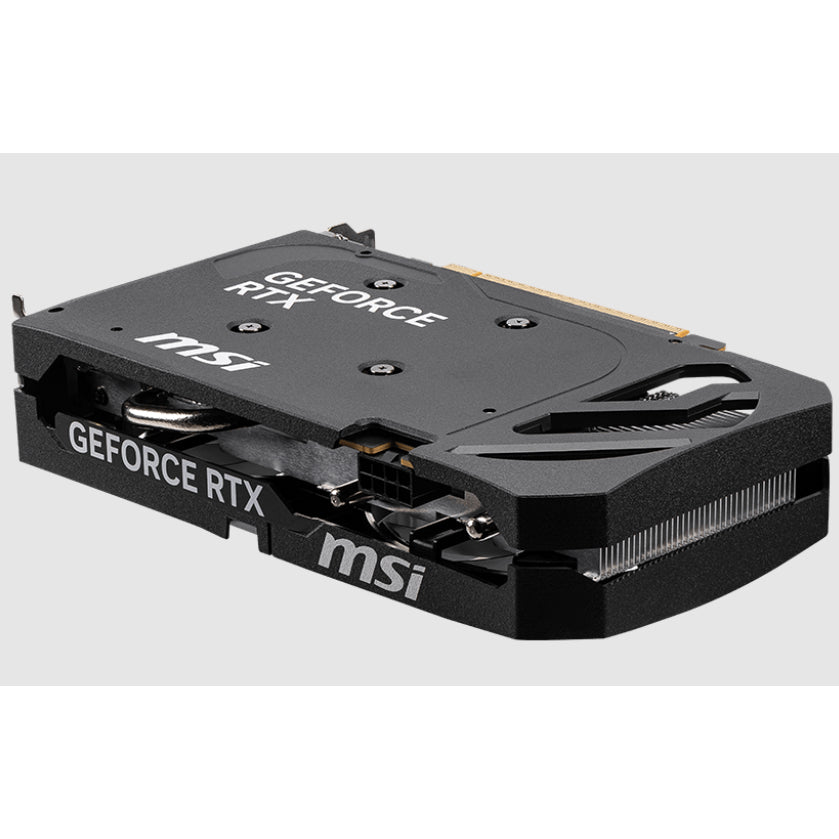

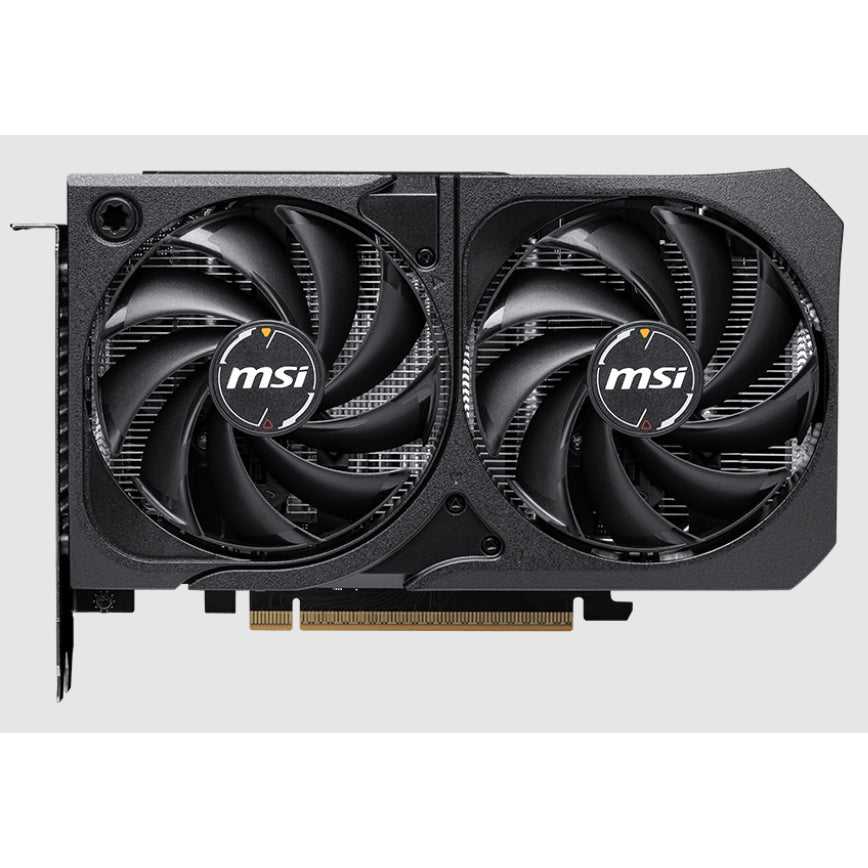

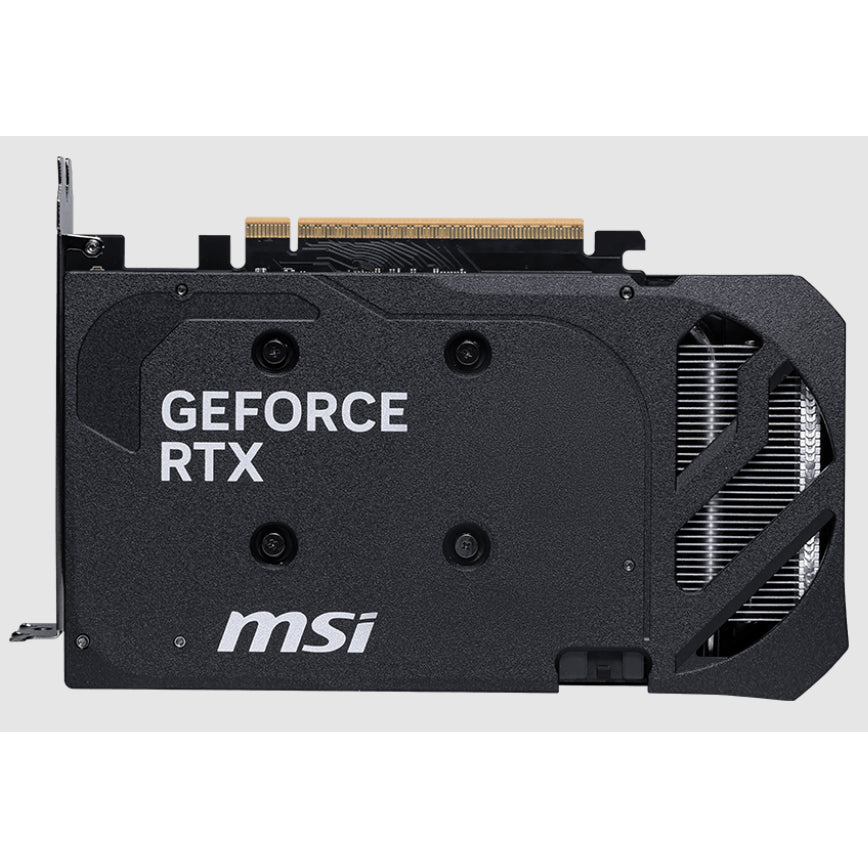

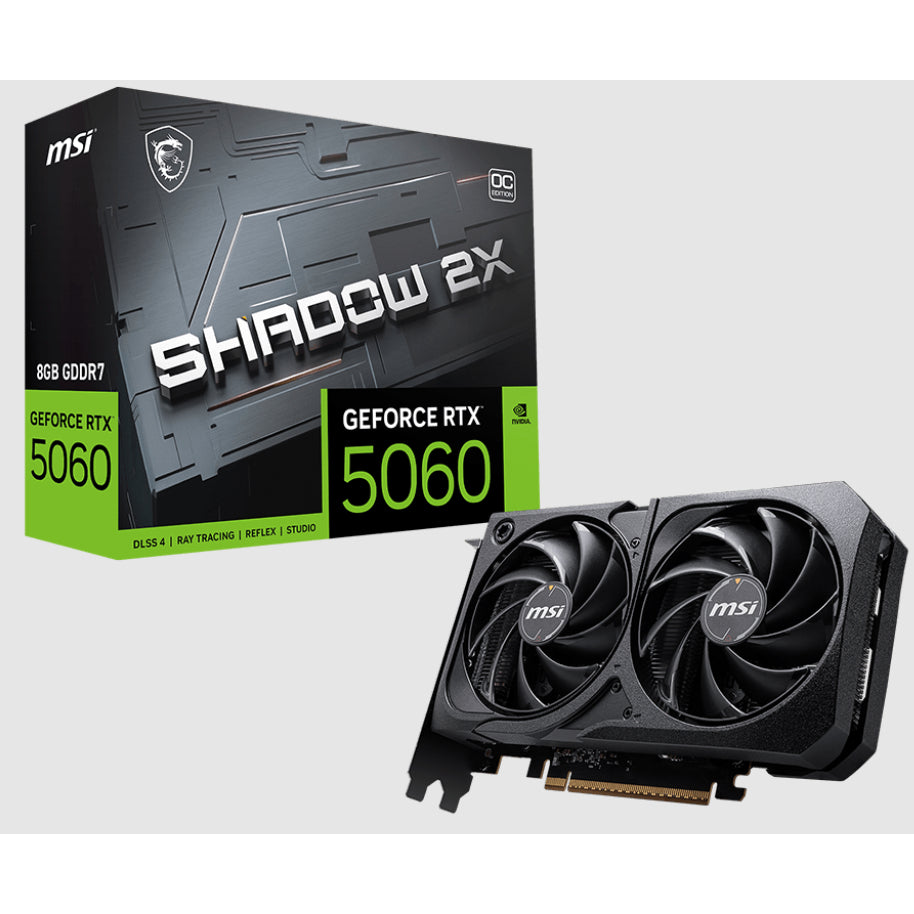

Marketing Name GeForce RTX™ 5060 8G SHADOW 2X OC
Model Name G5060-8S2C
Graphics Processing Unit NVIDIA® GeForce RTX™ 5060
Interface PCI Express® Gen 5 x16 (uses x8)
Core Clocks Extreme Performance: 2535 MHz (MSI Center) Boost: 2527 MHz
CUDA® CORES 3840 Units
Memory Speed 28 Gbps
Memory 8GB GDDR7
Memory Bus 128-bit

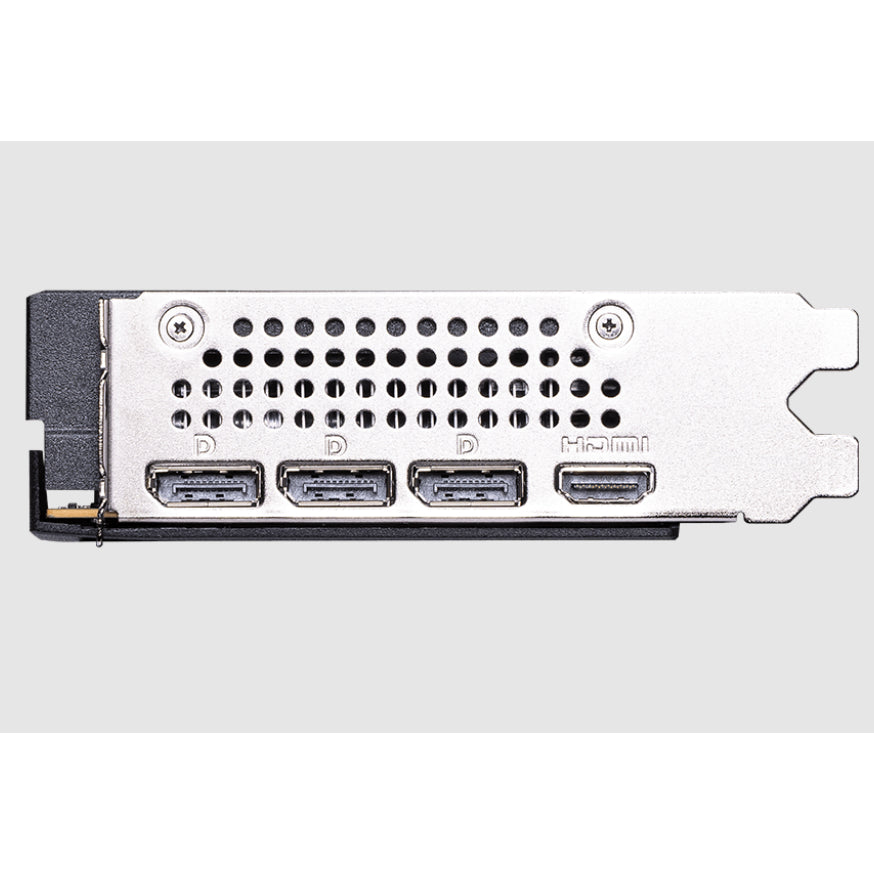

Output DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 145 W
Power connectors 8-pin x 1
Recommended PSU 550 W
Card Dimension (mm) 197 x 120 x 40 mm
Weight (Card / Package) 493 g / 814 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320
