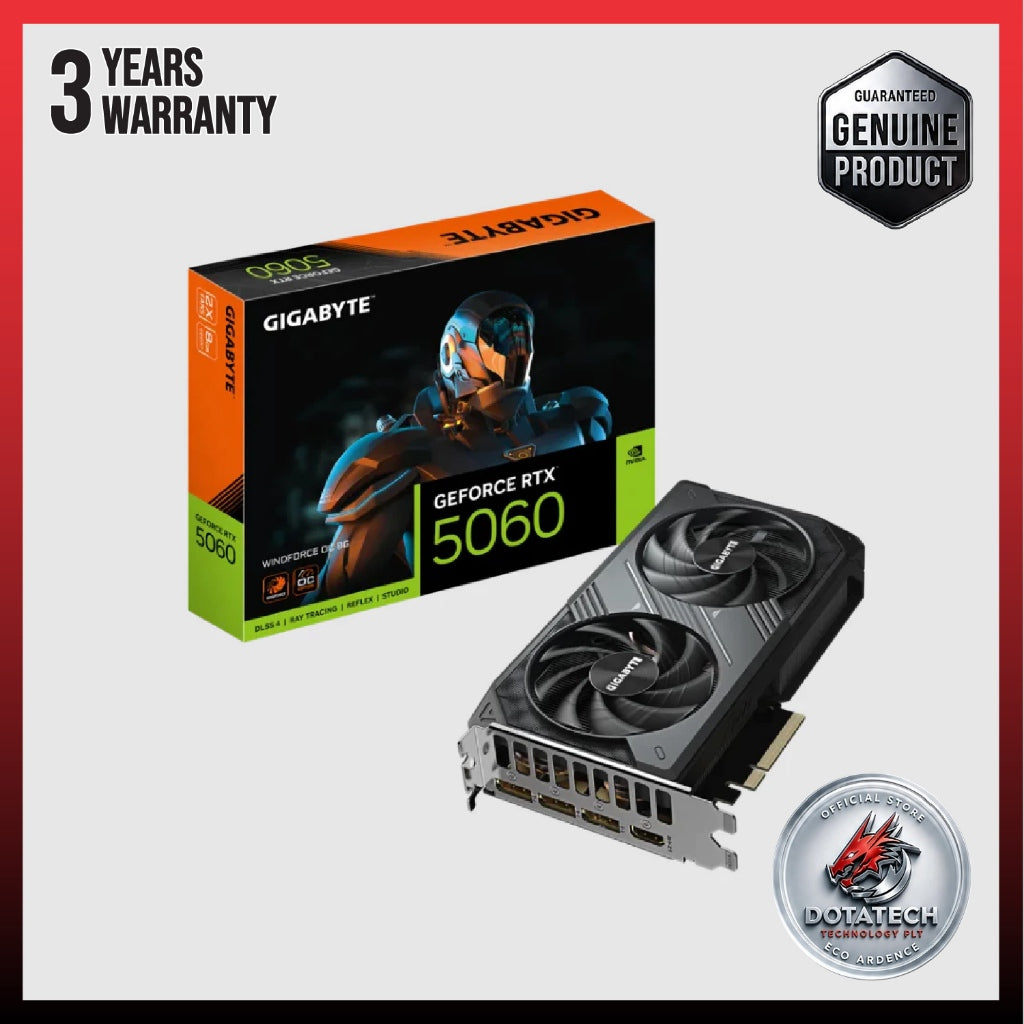

GIGABYTE GeForce RTX 5060 WINDFORCE / OC 8GB GDDR7 28Gbps 128bit PCIe5.0 DX12 DLSS4 GV-N5060WF2OC-8GD / GV-N5060WF2-8GD

FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4

Powered by GeForce RTX 5060

Integrated with 8GB GDDR7 128bit memory interface

WINDFORCE cooling system

Hawk fan

Server-grade Thermal conductive gel

Reinforced structure

Graphics Processing

GeForce RTX 5060

Core Clock

2512 MHz (Reference card : 2497MHz)

CUDA Cores

3840

Memory Clock

28 Gbps

Memory Size

8 GB

Memory Type

GDDR7

Memory Bus

128 bit

Card Bus

PCI-E 5.0

Digital max resolution

7680x4320

Multi-view

4

Card size

L=199 W=116 H=40

PCB Form

ATX

DirectX

DirectX 12 API

OpenGL

4.6

Recommended PSU

550W

Power Connectors

8 Pin*1

Output

DisplayPort 2.1b *3

HDMI 2.1b *1

Accessories

Quick guide
