P/N

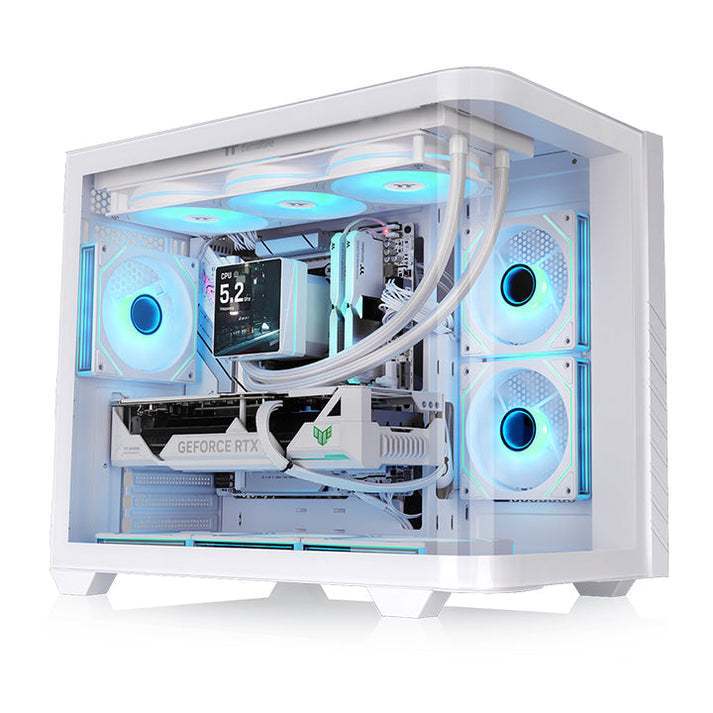

CA-11V-00M6WN-00Case Type
Mid TowerDimensions
388 x 295 x 479.4 mm
(15.28 x 11.61 x 18.87 inch)Side Panel
4mm Curved Tempered Glass x 1Material
SPCCCooling System
Right(intake):
120 x 120 x 25 mm Infinity ARGB Reverse PWM Fan (1500 rpm, 24.9 dBA) x 2
Bottom(intake):
120 x 120 x 25 mm Infinity ARGB Reverse PWM Fan (1500 rpm, 24.9 dBA) x 3
Rear(exhaust):
120 x 120 x 25 mm Infinity ARGB PWM Fan (1500 rpm, 21.8 dBA) x 1Drive Bays
2 x 3.5”, 2 x 2.5”Expansion Slots
6Motherboard
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)Hidden-Connector Motherboard
9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)I/O Port
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1PSU
Standard PS2 PSU (optional)Fan Support
Top:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right (M/B Side):
2 x 120mm, 1 x 120mm
Bottom:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Rear:
1 x 120mm
1 x 140mmRadiator Support
Top:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Right (M/B Side):
1 x 240mm, 1 x 120mmClearance
CPU cooler max height: 175mm
VGA max length: 420mm
PSU max length: 250mm
