GENERAL SPECIFICATIONS
Name

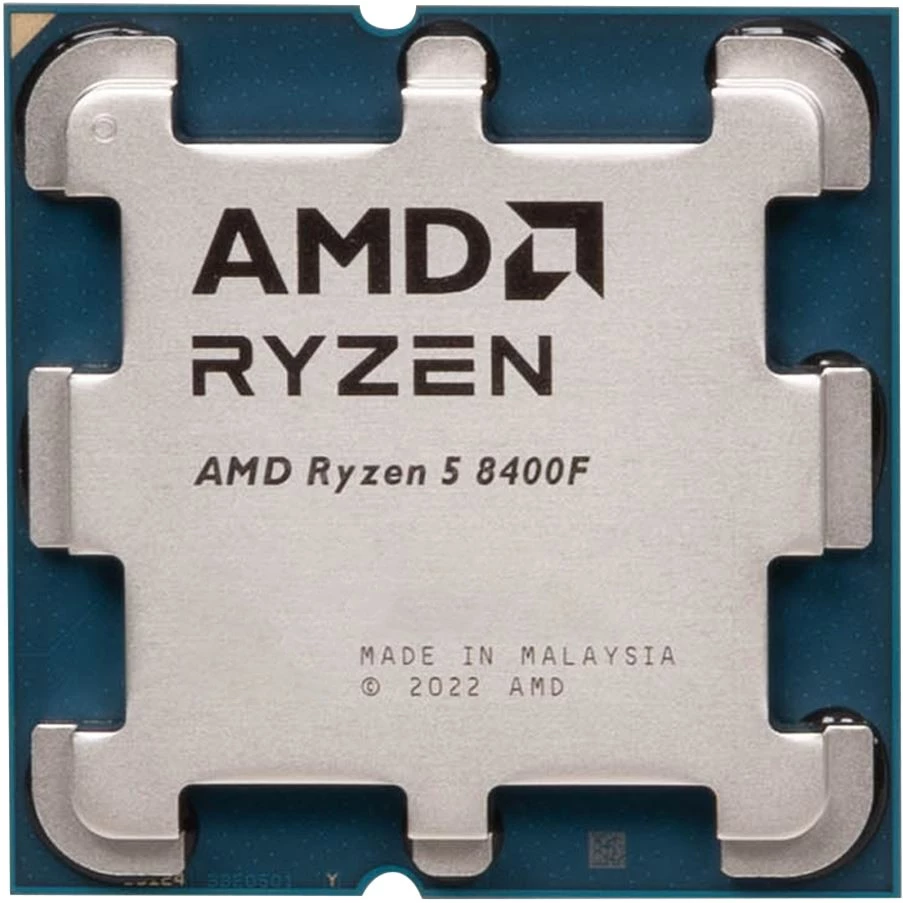

AMD Ryzen™ 5 8400F
Family
Ryzen
Series
Ryzen 8000 Series
Form Factor
Desktops
AMD PRO Technologies
No
Consumer Use
Yes
Regional Availability
Global
Former Codename
Phoenix
Architecture
Zen 4
# of CPU Cores
6
Multithreading (SMT)
Yes
# of Threads
12
Max. Boost Clock
Up to 4.7 GHz
Base Clock
4.2 GHz
L2 Cache
6 MB
L3 Cache
16 MB
Default TDP
65W
AMD Configurable TDP (cTDP)
45-65W
Processor Technology for CPU Cores
TSMC 4nm FinFET
CPU Compute Die (CCD) Size
178mm²
Package Die Count
1
Unlocked for Overclocking
Yes
AMD EXPO™ Memory Overclocking Technology
Yes
Precision Boost Overdrive
Yes
Curve Optimizer Voltage Offsets
Yes
AMD Ryzen™ Master Support
Yes
CPU Socket
AM5
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSSE3 , SSE4.1 , SSE4.2 , SSE4A , x86-64
Max. Operating Temperature (Tjmax)
95°C
Launch Date
04/01/2024
*OS Support
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
************************************************************************
CONNECTIVITY
Native USB 4 (40Gbps) Ports
2
Native USB 3.2 Gen 2 (10Gbps) Ports
2
Native USB 2.0 (480Mbps) Ports
1
PCI Express® Version
PCIe® 4.0
Native PCIe® Lanes (Total/Usable)
20 , 16
NVMe Support
Boot , RAID0 , RAID1
System Memory Type
DDR5
Memory Channels
2
Max. Memory
256 GB
System Memory Subtype
UDIMM
Max Memory Speed
2x1RDDR5-5200
2x2RDDR5-5200
4x1RDDR5-3600
4x2RDDR5-3600
************************************************************************
GRAPHIC CAPABILITIES
Graphics Model
Discrete Graphics Card Required
AMD SmartAccess Memory
Available
************************************************************************
AI ENGINE CAPABILITIES
Brand Name
AMD Ryzen™
AMD Ryzen™ AI
Not Available
************************************************************************
SECURITY, VIRTUALIZATION, AND MANAGEABILITY
AMD Enhanced Virus Protection (NX bit)
Yes
************************************************************************
