Specifications
Platform
Desktop
Product Family
AMD Ryzen™ Processors
Product Line

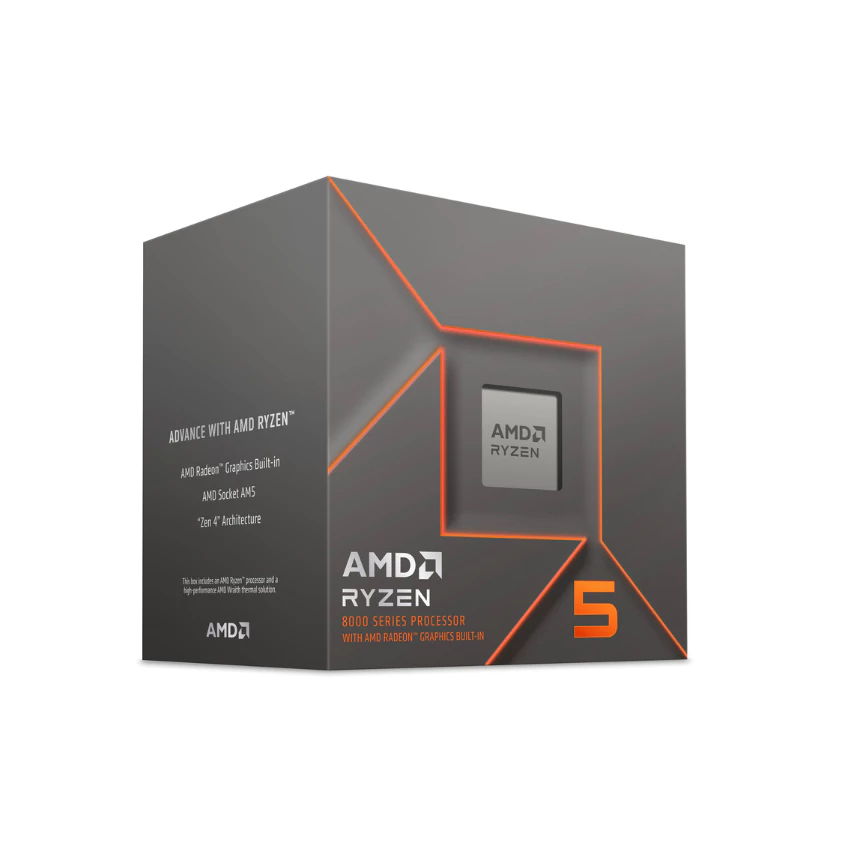

AMD Ryzen™ 5 8000 G-Series Desktop Processors with Radeon™ Graphics
AMD PRO Technologies
No
Consumer Use
Yes
Regional Availability
Global
Former Codename
"Phoenix"
Architecture
2 x "Zen4", 4 x "Zen4c"
# of CPU Cores
6
Multithreading (SMT)
Yes
# of Threads
12
Max. Boost Clock
Up to 5.0GHz
Max Zen4c Clock
Up to 3.7GHz
Base Clock
3.5GHz
Zen4 Base Clock
4.1GHz
Zen4c Base Clock
3.2GHz
L2 Cache
6MB
L3 Cache
16MB
Default TDP
65W
AMD Configurable TDP (cTDP)
45-65W
Processor Technology for CPU Cores
TSMC 4nm FinFET
CPU Compute Die (CCD) Size
137mm²
Package Die Count
1
AMD EXPO™ Memory Overclocking Technology
Yes
Precision Boost Overdrive
Yes
Curve Optimizer Voltage Offsets
Yes
AMD Ryzen™ Master Support
Yes
CPU Socket
AM5
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Max. Operating Temperature (Tjmax)
95°C
*OS Support
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
Native USB 4 (40Gbps) Ports
2
Native USB 3.2 Gen 2 (10Gbps) Ports
2
Native USB 2.0 (480Mbps) Ports
1
PCI Express® Version
PCIe® 4.0
Native PCIe® Lanes (Total/Usable)
14 / 10
NVMe Support
Boot, RAID0, RAID1
System Memory Type
DDR5
Memory Channels
2
Max. Memory
256GB
System Memory Subtype
UDIMM
Max Memory Speed
2x1R
DDR5-5200
2x2R
DDR5-5200
4X1R
DDR5-3600
4x2R
DDR5-3600
Graphics Capabilities
Integrated Graphics
Yes
Graphics Model
AMD Radeon™ 740M
Graphics Core Count
4
Graphics Frequency
2800 MHz
DirectX® Version
12
DisplayPort™ Version
2.1
DisplayPort Extensions
HDR Metadata
Adaptive-Sync
UHBR10
DisplayPort Max Refresh Rates (SDR)
7680x4320 @ 60Hz
3840x2160 @ 240Hz
3440x1440 @ 360Hz
2560x1440 @ 480Hz
1920x1080 @ 600Hz
DisplayPort Max Refresh Rates (HDR)
7680x4320 @ 60Hz
3840x2160 @ 240Hz
3440x1440 @ 360Hz
2560x1440 @ 480Hz
1920x1080 @ 600Hz
HDMI® Version
2.1
HDCP Version Supported
2.3
USB Type-C® DisplayPort™ Alternate Mode
Yes
Multi-Monitor Support
Yes
Max Displays
4
