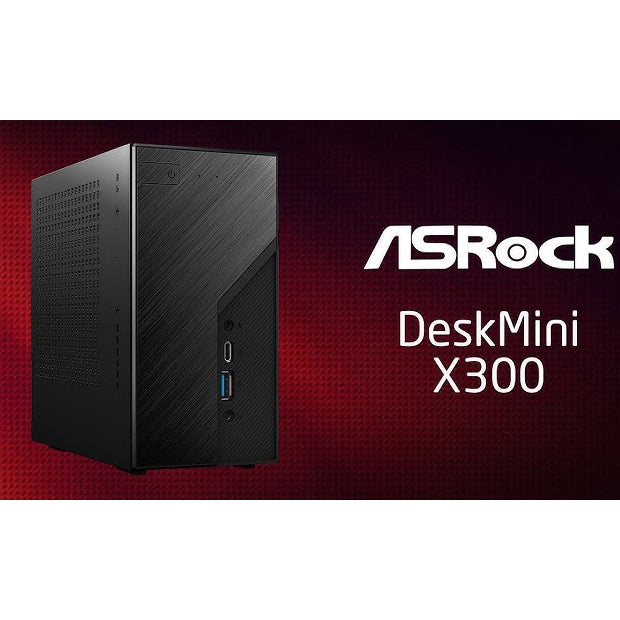

ASRock DeskMini X300W Barebone Mini PC Kit INC CHASIS / MOBO / POWER / COOLER / WiFi/ AMD AM4 Socket

DeskMini X300 Series

AMD AM4 Socket CPU

- Cezanne, Renoir, Picasso, Raven Ridge, up to 65W

- Support MAX Height ≦ 46mm CPU Cooler

Supports Overclocking Option with X300

High-Speed DDR4-3200MHz Memory

Dual Ultra M.2 (NVMe)

- M2_1 M.2 (2280) – PCIe Gen3 x4

- M2_2 M.2 (2280) – PCIe Gen3 x2/x4

2 x 2.5" SATA 6Gb Hard Drive

Support RAID 0/1 function

HDMI, DisplayPort, D-Sub

M.2 For Wi-Fi Module

USB 3.2 Gen1 Type-C

DeskMini X300W Barebone

CPU

- Supports AMD AM4 Socket CPUs (Cezanne, Renoir, Picasso, Raven Ridge, up to 65W)

Chipset

- AMD X300

Cooler

- Supports AMD AM4 CPU Cooler (Max. Height ≦ 46mm)

Memory

- Supports 2 x SO-DIMM DDR4 Memory, Max. 64GB

- AMD Ryzen 5000/4000 series – 3200MHz

- AMD Ryzen 3000/2000 series – 2933MHz

Graphics Output

- HDMI(4K @60Hz)

- DisplayPort, D-Sub

Audio

- 1 x Head Phone with MIC Jack, 1 x MIC-In (RealtekALC233)

Front USB

- 1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen1 Type-A

Rear USB

- 1 x USB 3.2 Gen1 Type-A, 1 x USB 2.0 Type-A,

Storage

- 2 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)

- 1 x Ultra M.2 (2280) PCIe Gen3 x4 SSD Slot

- 1 x Ultra M.2 (2280) Slot

- PCIe Gen3 x4 (Renoir, Picasso and Raven Ridge APU)

- PCIe Gen3 x2 (Athlon 2xxGE series APU)

LAN

- Gigabit LAN (RealtekRTL8111H)

WLAN

- 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module

Connectors

- 1 x USB 2.0 Header

- 1 x Front Panel Header

- 2 x 4-Pin fan connectors (CPU, SYS)

- 1 x DC-In Jack (Supports 19V Power Adapters)

- 1 x Internal Speaker Header (4-Pin)

- 1 x Chassis Intrusion Header (2-Pin)

- 1 x Audio Header (4-Pin)

Accessory

- 2 x SATA Data with Power Cable

- 1 x 120W/19V adapter

- 1 x Screws Pack

- 1 x Intel® AC-3168 Wi-Fi Kit

Dimension

- 155 x 155 x 80 mm (1.92L)

OS

- Microsoft® Windows® 10 64-bit / 11 64-bit

Remark

DeskMini X300 Series don't support S3 function.
