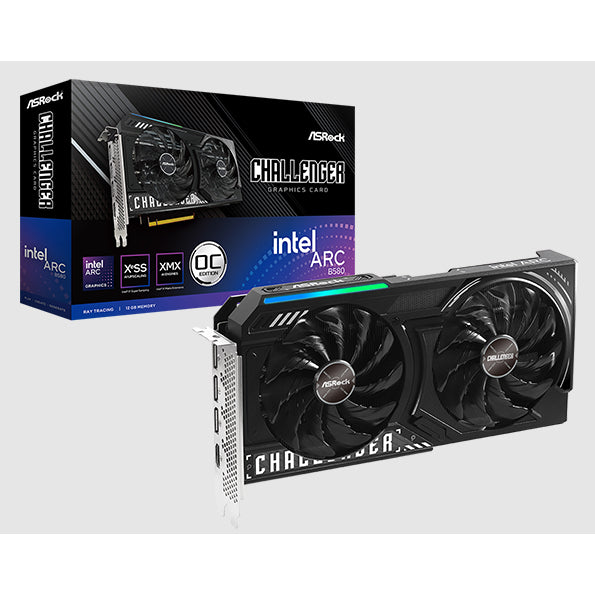

ASRock Intel Arc B580 Challenger 12GB OC GDDR6 192bit 2560SU DX12 Intel Xe2-Core Dual Fan GPU / B580 CL 12GO

Graphics Engine

- Intel® Arc B580

Bus Standard

- PCI® Express4.0 x 8

DirectX

- 12 Ultimate

OpenGL

- 4.6

Memory

- GDDR6 12GB

Engine Clock

- 2740 MHz

Intel® XMX Engines

- 160

Compute Units

- 20

Memory Clock

- 19 Gbps

Memory Interface

- 192-bit

Resolution

- Digital Max Resolution: 7680 x 4320

Interface

- 1 x DisplayPort 2.1 (Primary, up to UHBR13.5)

- 2 x DisplayPort 2.1 (Up to UHBR10)

- 1 x HDMI 2.1a

Graphics Card Interface I/O

HDCP

- Yes

Multi-view

- 4

Recommended PSU

- 650W

Power Connector

- 1 x 8-pin

Accessories

- 1 x Quick Installation Guide

Dimensions

- 249 x 132 x 41mm, 2-slot

Net Weight

- 720 g
