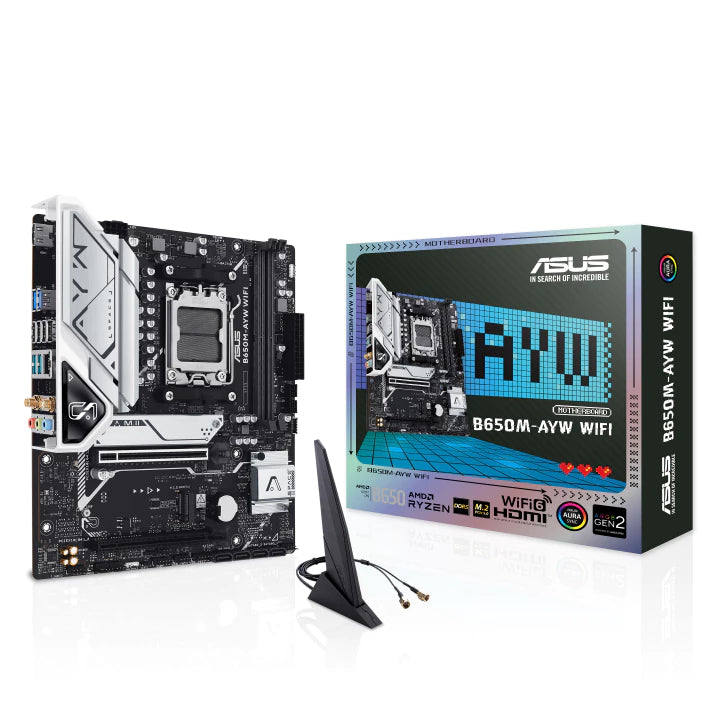

ASUS PRIME B650M-AYW WIFI Motherboard AMD AM5

Model

B650M-AYW WIFI

CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset

AMD B650 Chipset

Memory

2 x DIMM slots, max. 96GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*

Dual Channel Memory Architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

Graphics

1 x HDMI™ port

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*

1 x PCIe 4.0 x16 slot (supports x16 mode)

AMD Ryzen™ 8000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD B650 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

AMD Ryzen™ 8000 Series Desktop Processors

M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)**

AMD B650 Chipset

4 x SATA 6Gb/s ports

Ethernet

1 x Realtek 2.5Gb Ethernet

USB

Rear USB (Total 8 ports)

2 x USB 10Gbps ports (2 x Type-A)

2 x USB 5Gbps ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)

1 x USB 5Gbps connector (supports USB Type-C®)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Back Panel I/O Ports

2 x USB 10Gbps ports (2 x Type-A)

2 x USB 5Gbps ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x HDMI™ port

1 x Wi-Fi Module

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 5Gbps connector (supports USB Type-C® )

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

micro-ATX Form Factor

9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
