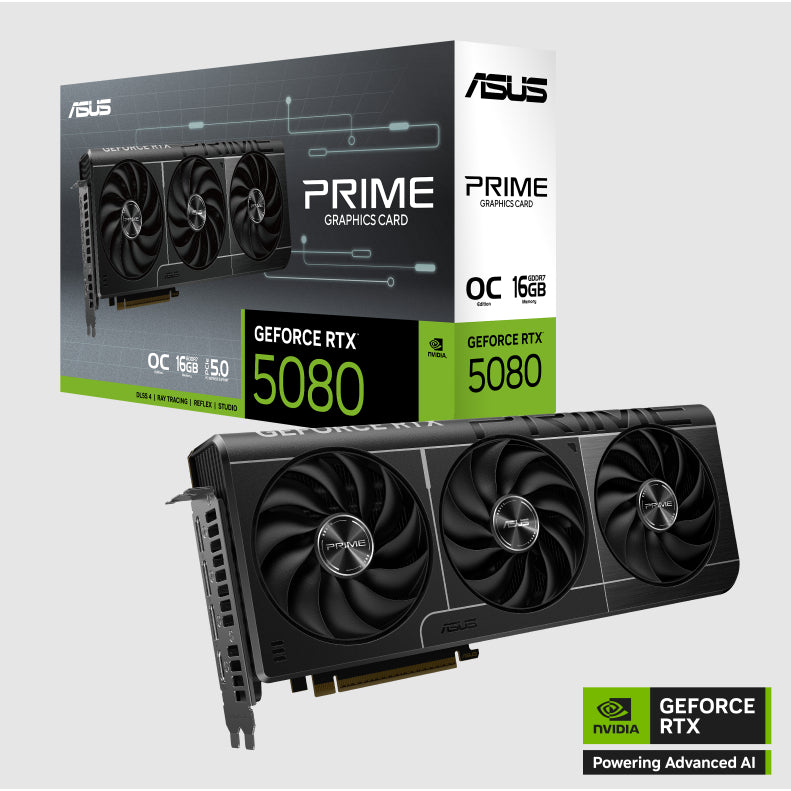

ASUS PRIME GeForce RTX 5080 OC EDITION 16GB GDDR7 256bits 10752CC DX12 NVIDIA DLSS 4 TRIPLE FAN GPU PRIME-RTX5080-O16G

Model

PRIME-RTX5080-16G / PRIME-RTX5080-O16G

Graphic Engine

NVIDIA® GeForce RTX™ 5080

AI Performance

1801 TOPs / 1827 TOPs

Bus Standard

PCI Express 5.0

OpenGL

OpenGL®4.6

Video Memory

16GB GDDR7

Engine Clock - PRIME-RTX5080-16G

OC mode: 2640 MHz

Default mode: 2617 MHz (Boost Clock)

Engine Clock - PRIME-RTX5080-O16G

OC mode: 2685 MHz

Default mode: 2655 MHz (Boost Clock)

CUDA Core

10752

Memory Speed

30 Gbps

Memory Interface

256-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 1 (Native HDMI 2.1b)

Yes x 3 (Native DisplayPort 2.1b)

HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

No

Accessories

1 x Speedsetup Manual

1 x ASUS Velcro Hook & Loop

1 x Thank You Card

1 x Adapter Cable (1 to 3)

Software

ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions

304 x 126 x 50 mm

12 x 5 x 2 inch

Recommended PSU

850W

Power Connectors

1 x 16-pin

Slot

2.5 Slot

SFF Ready

Compatible
