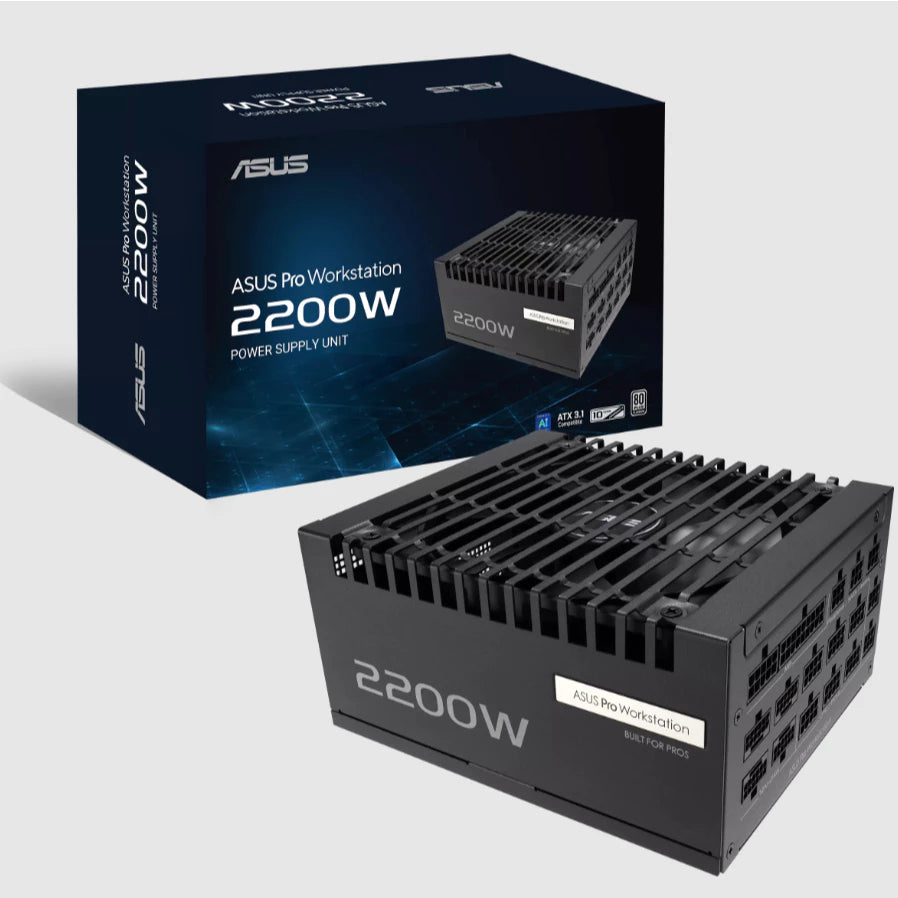

▶ Heavy-duty PSU: Supports up to two GeForce RTX™ 5090 graphics cards via rock-solid voltage stability and advanced power delivery.
▶ Dual-ball fan bearings: Designed to last up to twice as long as sleeve-bearing designs.
▶ Extruded aluminum heatsinks: Cover critical components, delivering lower temperatures and noise versus reference designs.
▶ ATX 3.1 compatible: Compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation.
▶ PCIe® 5.1 ready: Features native 12V-2x6 connectors for cutting-edge graphics card power.
▶ 80 PLUS Platinum certified: Utilizes low-ESR Japanese server grade capacitors and premium components for industry-leading power efficiency.
▶ 10-year warranty: Provides confidence in long-term reliability.
Intel Form Factor
ATX12V
PFC Type
Active PFC
ATX Standard
ATX 3.1
Dimensions
175 x 150 x 86 mm
Efficiency
80Plus Platinum
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
200-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
25A 25A 183.3A 0.8A 3A
Combined Load
130W 130W 2200W 9.6W 15W
Total Output
2200W
Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCIE 5.1 16-pin x 4
PCIE 6+2-pin x 4
SATA x 12
PERIPHERAL x 3
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
PCI-E Gen 5.1 16-pin Cable x 4 (750mm)
PCI-E 1-to-1 Cable x 4 (750mm)
SATA 1-to-3 Cable x 4 (400+120+120mm)
Peripheral 1-to-3 Cable x 1 (400+150+150mm)
Chassis Screws Package x 1
Cable Tie x 6
User Manual x 1
Weight
2.13 kg (single PSU)
0dB Technology
No
