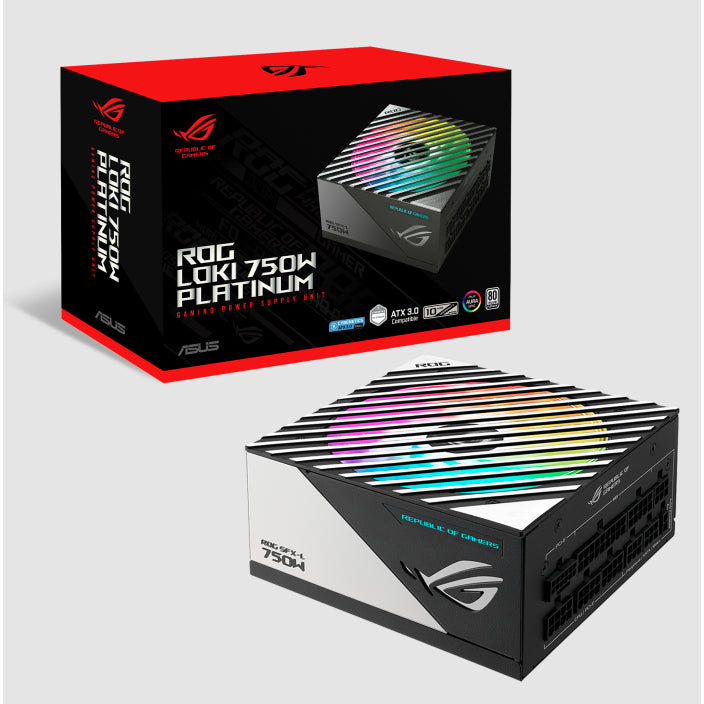

ASUS ROG-LOKI-750P-SFX-L-GAMING
Intel Form Factor
SFX-L
ATX 3.0
Yes
Dimensions
125 x 125 x 63.5 mm
Efficiency
80Plus Platinum
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A 20A 62.5A 0.8A 2.5A
Combined Load
110W 110W 750W 9.6W 12.5W
Total Output
750W
Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 8-pin x 3
SATA x 6
PERIPHERAL x 4
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (450mm)
CPU Cable x 2 (550mm)
PCI-E Gen 5 16-pin Cable x 1 (450mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (450mm)
PCI-E 1-to-1 Cable x 1 (450mm)
SATA 1-to-3 Cable x 2 (300+200+100mm)
Peripheral 1-to-4 Cable x 1 (300+100+100+100mm)
Addressable RGB Cable x 1 (800mm)
User Manual x 1
ATX to SFX adapter bracket x 1
Weight
1.815kg (single PSU)
AURA SYNC
ARGB
0dB Fan Button
No
Cybenetics Noise Level Certification
A+
**************************************
ASUS ROG-LOKI-850P-SFX-L-GAMING
Intel Form Factor
SFX-L
ATX 3.0
Yes
Dimensions
125 x 125 x 63.5 mm
Efficiency
80Plus Platinum
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A 20A 70.8A 0.8A 2.5A
Combined Load
110W 110W 850W 9.6W 12.5W
Total Output
850W
Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 8-pin x 3
SATA x 6
PERIPHERAL x 4
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (450mm)
CPU Cable x 2 (550mm)
PCI-E Gen 5 16-pin Cable x 1 (450mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (450mm)
PCI-E 1-to-1 Cable x 1 (450mm)
SATA 1-to-3 Cable x 2 (300+200+100mm)
Peripheral 1-to-4 Cable x 1 (300+100+100+100mm)
Addressable RGB Cable x 1 (800mm)
User Manual x 1
ATX to SFX adapter bracket x 1
Weight
1.815kg (single PSU)
AURA SYNC
ARGB
0dB Fan Button
No
Cybenetics Noise Level Certification
A
