Model Name
GT-BE98
Network Standard
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IPv4
IPv6
Product Segment
BE25000 ultimate BE performance : 1376+5764+5764+11529 Mbps
WiFi Data Rate
2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps
5G-1Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbps
5G-2Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbps
6GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbps
Antenna
External antenna x 8
Transmit / Receive
2.4GHz 4x4
5GHz-1 4x4
5GHz-2 4x4
6GHz 4x4
Processor
2.6GHz quad-core processor
Memory
256 MB Flash and 2 GB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
4096-QAM high data rate
20/40/80/160/320 MHz bandwidth
Operating Frequency
2.4 GHz / 5 GHz / 6 GHz
Operating Mode
Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge
I/O Ports
1 x 10Gbps for WAN/LAN
1 x 2.5Gbps for WAN/LAN
1 x 10Gbps for LAN
3 x 2.5Gbps for LAN
1 x RJ45 10/100/1000Mbps for LAN
1 x USB 3.2 Gen1
1 x USB 2.0
Buttons
WPS Button, Reset Button, Power Switch, LED control Button
LED Indicator
WAN(Internet) x1
10G LAN x1
1G/2.5G LAN x1
6GHz x1
5GHz-1 x 1
5GHz-2 x 1
2.4GHz x1
Power x1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19.5 V with max. 3.33 A current
Package Content

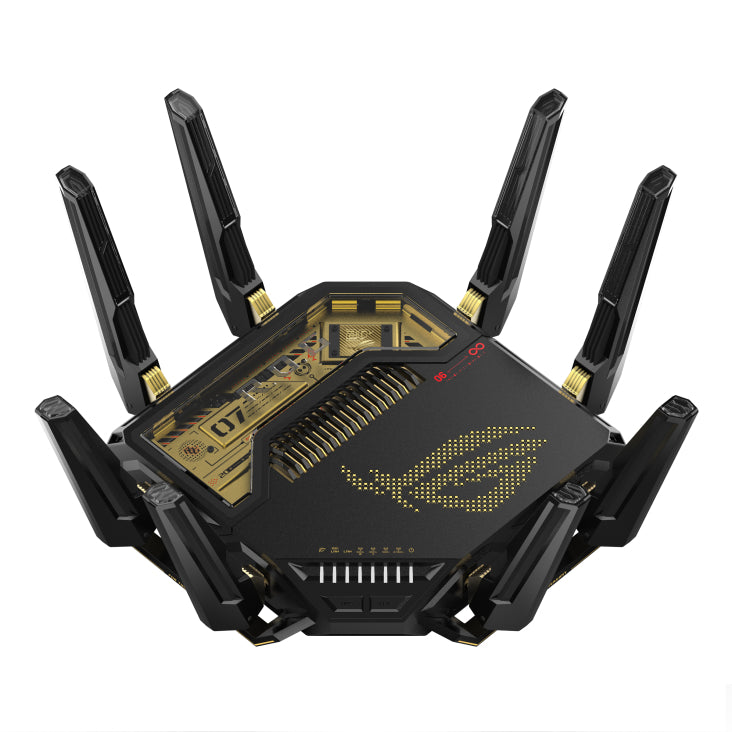

GT-BE98 quad-band gaming router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Weight (g)
2000 g
Product Dimensions
350.41 x 350.41 x 220.6 mm
*Change Of Mind/I Do Not Want The Product Anymore/Return Policy Does NOT Apply For Order(s) & Product(s) Which Has Been Used, Unboxed, Unsealed, Tampered, Not Returned Along Full Documentation/Tax Invoice & Original Retail Box With Shipping Packing
*For Warranty Purposes, Please Refer Our Official Website T&C
