Model

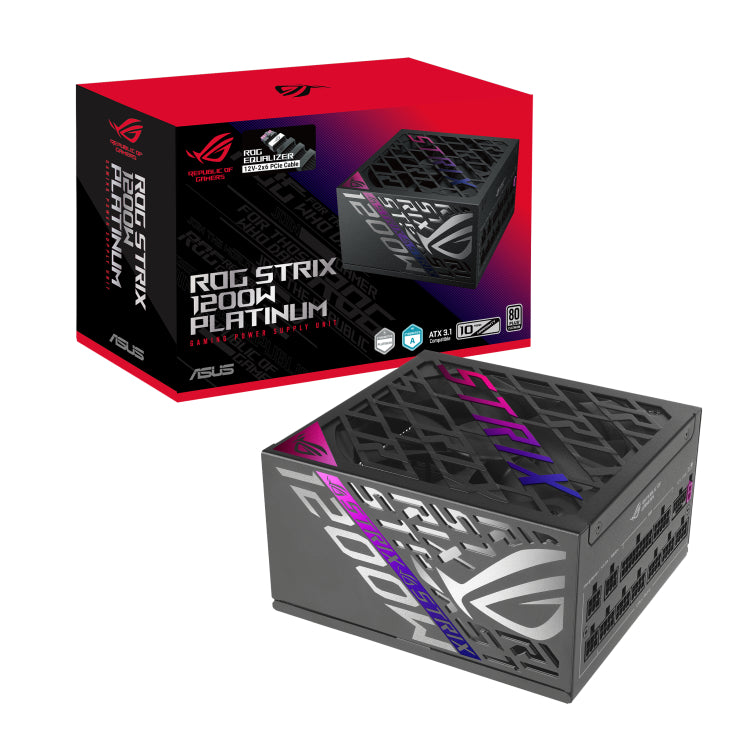

ROG Strix 1200W Platinum (ROG Equalizer)
Intel Form Factor
ATX12V
PFC Type
Active PFC
ATX Standard
ATX 3.1
80 PLUS Efficiency
80Plus Platinum
Cybenetics Efficiency
Platinum (230V) ; Platinum (115V)
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
25A 25A 100A 0.3A 3A
Combined Load
130W 130W 1200W 3.6W 15W
Total Output
1000W / 1200W
Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x1 (12V-2x6)
PCI-E 6+2-pin x 4
SATA x 6
Peripheral x 3
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First x1 (750mm)
PCI-E (8-pin-to-6+2pin) Cable x 4 (750mm)
SATA 1-to-3 Cable x 2 (400+120+120mm)
Peripheral 1-to-3 Cabel x 1 (400+150+150mm)
ROG Strix DIY sticker x 1
User Manual x 1
Dimensions
160 x 150 x 86 mm
Weight
1.84 kg (single PSU)
Cybenetics Noise Level Certification
A
AURA SYNC
No
MTBF
>120,000 hrs @ 25°C
0dB Fan Button
Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
Warranty
10-year
