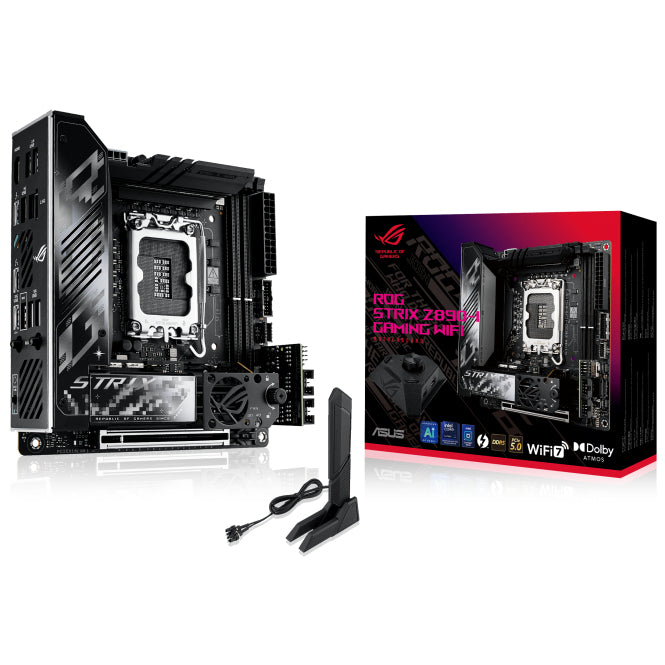

ASUS ROG STRIX Z890-I GAMING WiFi DDR5 mITX Intel Motherboard LGA 1851

CPU

Support Intel® Core™ Ultra Processors

(Series 2)*

Supports Intel® Turbo Boost Technology 2.0

and Intel® Turbo Boost Max Technology 3.0**

Chipset

Intel® Z890 Chipset

Memory

2 x DIMM slots, max. 96GB, DDR5

Support up to 9200+MT/s (OC), Non-ECC,

Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*

Dual channel memory architecture

DIMM Fit

Supports Intel® Extreme Memory Profile

(XMP) memory module

Supports DIMM Flex

ASUS Enhanced Memory Profile III (AEMP III)

Graphics1 x HDMI™ port**

2 x Intel® Thunderbolt™ 4 ports (USB

Type-C®) support DisplayPort and Thunderbolt™ video outputs***

* Graphics specifications may vary between

CPU types. Please refer to www.intel.com for any updates.

** Supports 4K@60Hz as specified in HDMI

2.1.

Storage

Total Supports 2 x M.2 slots and 2 x SATA

6Gb/s ports*

Intel® Core™ Ultra Processors(Series 2)**

M.2_1 slot (Key M), type

2230/2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type

2230/2242/2260/2280 (supports PCIe 5.0 x4 mode)

2 x SATA 6Gb/s ports***

* Intel® Rapid Storage Technology supports

PCIe RAID 0/1, SATA RAID 0/1.

Wireless & Bluetooth

Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 320MHz bandwidth, up to

5.8Gbps transfer rate.

Bluetooth® v5.4***

*Wi-Fi features may vary depending on the

operating system

For

Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions,

Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.

For

Windows 10, only Wi-Fi 6 is supported.

USB

Rear USB (Total 9 ports)

2 x Thunderbolt™ 4 (2 x USB Type-C®)

1 x USB 20Gbps port (1 x USB Type-C®)

3 x USB 10Gbps ports (3 x Type-A)

1 x USB 5Gbps port (1 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 3 ports)

1 x USB 20Gbps connector (supports USB

Type-C®)

1 x USB 5Gbps header supports 2 additional

USB 5Gbps ports

ROG STRIX HIVE II (Total 2 ports)

2 x USB 10Gbps ports ( 1 x USB Type-C®+ 1 x

Type-A)

ROG FPS Card (Total 3 ports)

2 x USB 2.0 headers support additional 3

USB 2.0 ports

* USB Type-C® power delivery output: max.

5V/3A

Operating System

Windows 11 (22H2 later)

Form Factor

Mini-ITX Form Factor

6.7 inch x 6.7 inch (17 cm x 17 cm)
