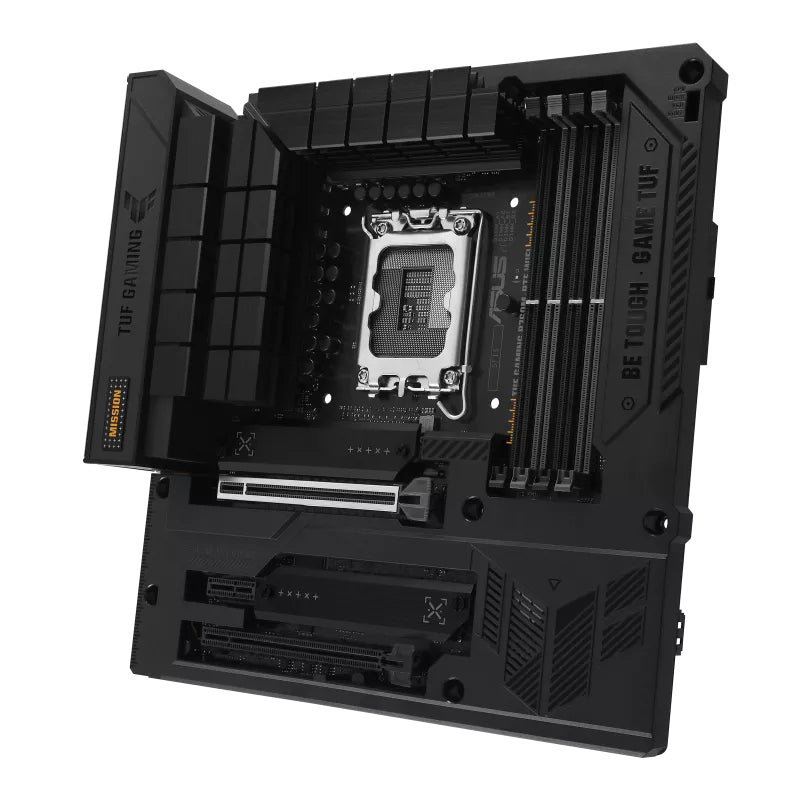

ASUS TUF GAMING B760M-BTF WIFI mATX BTF Intel Motherboard / Socket LGA 1700 & DDR5

PENTING . IMPORTANT . 注意

KEPADA PELANGGAN YANG DIHORMATI,

SEBELUM MEMBUKA BUNGKUSAN SILA BUAT RAKAMAN VIDEO

BAGI TUJUAN TUNTUTAN KEROSAKAN DAN KEHILANGAN

SEBARANG TUNTUTAN TANPA RAKAMAN TIDAK AKAN DILAYAN.

SEGALA KERJASAMA AMATLAH DIHARGAI

DEAR VALUED CUSTOMER,

BEFORE UNBOXING THE PACKAGE PLEASE MAKE A

VIDEO RECORDING FOR FAULTY AND DAMAGE CLAIM PURPOSES

尊贵的顾客，请在打开包裹之前录制一段视频，

以确保产品损坏的情况有证据。未附带录制视频的索赔将无法受理。

谢谢您的合作

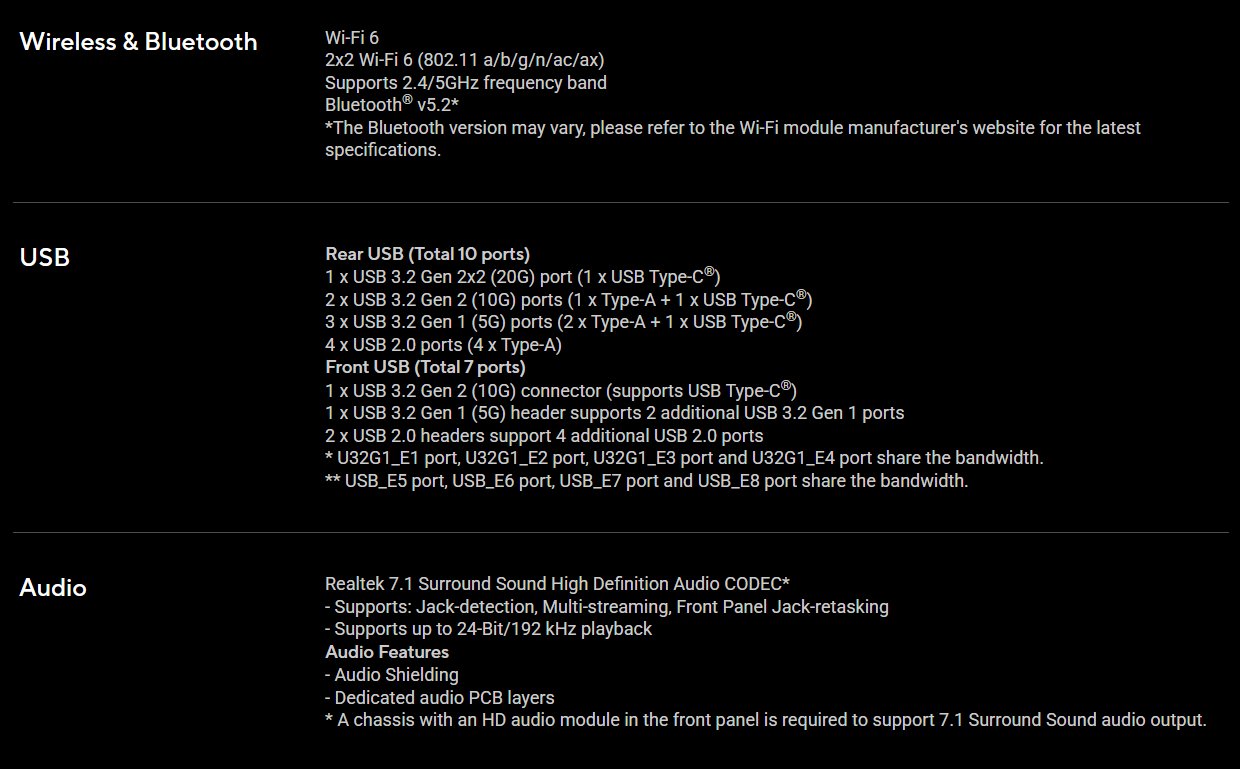

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C®)

2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A, 1 x USB Type-C®)

3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C®)

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort

1 x HDMITM port

1 x Wi-Fi Module

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

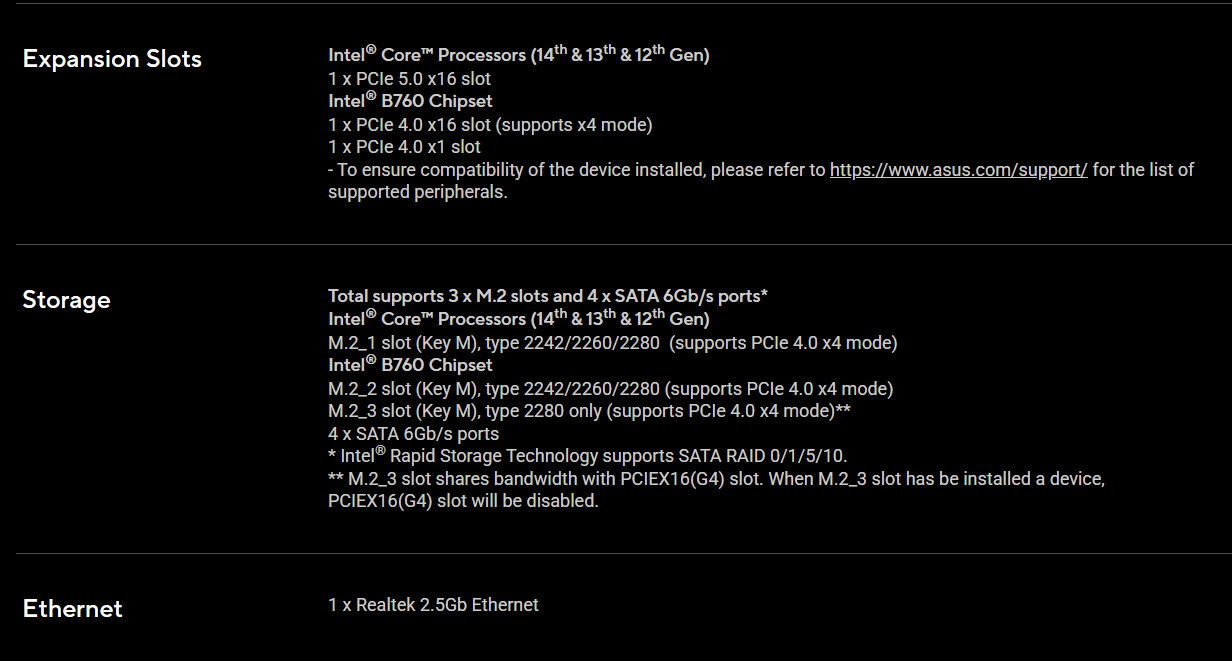

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C® )

1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x 10-1 pin System Panel header

1 x Thunderbolt™ (USB4®) header
