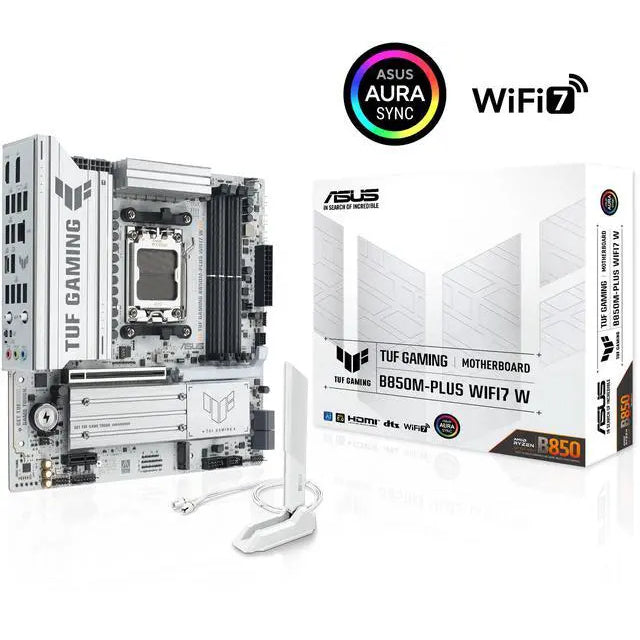

ASUS TUF GAMING B850M-PLUS WIFI7 WHITE mATX AMD Motherboard / Socket AM5 & DDR5

PENTING . IMPORTANT . 注意

KEPADA PELANGGAN YANG DIHORMATI,

SEBELUM MEMBUKA BUNGKUSAN SILA BUAT RAKAMAN VIDEO

BAGI TUJUAN TUNTUTAN KEROSAKAN DAN KEHILANGAN

SEBARANG TUNTUTAN TANPA RAKAMAN TIDAK AKAN DILAYAN.

SEGALA KERJASAMA AMATLAH DIHARGAI

DEAR VALUED CUSTOMER,

BEFORE UNBOXING THE PACKAGE PLEASE MAKE A

VIDEO RECORDING FOR FAULTY AND DAMAGE CLAIM PURPOSES

尊贵的顾客，请在打开包裹之前录制一段视频，

以确保产品损坏的情况有证据。未附带录制视频的索赔将无法受理。

谢谢您的合作

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power Related

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connectors

Storage Related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 10Gbps connector (supports USB Type-C® )

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 3 additional USB 2.0 ports

Miscellaneous

3 x Addressable RGB Gen2 headers

1 x Chassis Intrusion header

1 x COM Port header

1 x Front Panel Audio header (F_AUDIO)

1 x 10-1 pin Front Panel System header

Special Features

ASUS TUF PROTECTION

- DIGI+ VRM (- Digital power design with DrMOS)

- ESD Guards

- TUF LANGuard

- Overvoltage protection

- SafeSlot

- Stainless-steel back I/O

ASUS Q-Design

- M.2 Q-Latch

- PCIe Slot Q-Release

- Q-Antenna

- Q-Dashboard

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

ASUS Thermal Solution

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- ProCool

- Pre-mounted I/O shield

- SafeDIMM

Aura Sync

- Addressable RGB Gen2 headers

Software Features

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

- Fan Xpert 2+

ASUS AI Advisor

ASUS DriverHub

ASUS GlideX

TurboV Core

TUF GAMING CPU-Z

DTS Audio Processing

Adobe Creative Cloud (Free Trial)

Norton 360 for Gamers (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

- ASUS MyHotkey

* For more software features, please visit the asus support site or refer to www.asus.com/support for additional information.

** For detailed information on the supported models and restricted regions for this redemption offer, please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/.

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS WiFi Q-Antenna

1 x TUF GAMING sticker

1 x M.2 rubber package

1 x Screw package for M.2 SSD

Documentation

1 x Quick start guide

Operating System

Windows 11

Form Factor

micro-ATX Form Factor

9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
