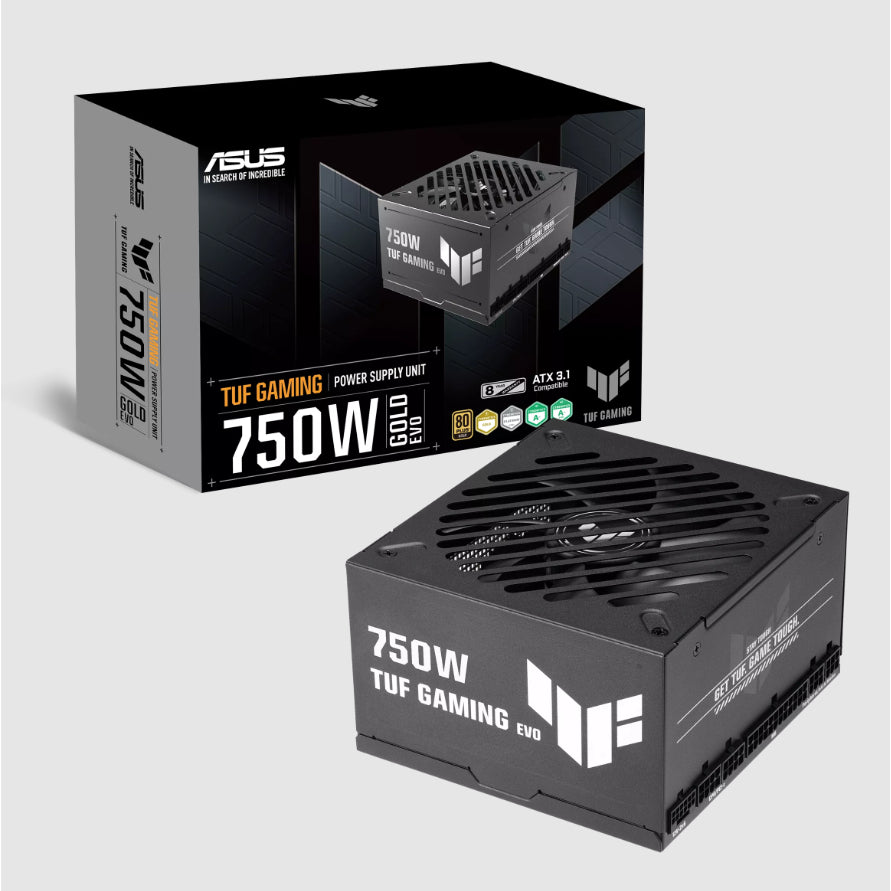

ASUS TUF GAMING EVO / 750W / 850W / 1000W / 1200W / 80+ Gold ATX 3.1(PCIe 5.1) Fully Modular PSU

PENTING . IMPORTANT . 注意

KEPADA PELANGGAN YANG DIHORMATI,

SEBELUM MEMBUKA BUNGKUSAN SILA BUAT RAKAMAN VIDEO

BAGI TUJUAN TUNTUTAN KEROSAKAN DAN KEHILANGAN

SEBARANG TUNTUTAN TANPA RAKAMAN TIDAK AKAN DILAYAN.

SEGALA KERJASAMA AMATLAH DIHARGAI

DEAR VALUED CUSTOMER,

BEFORE UNBOXING THE PACKAGE PLEASE MAKE A

VIDEO RECORDING FOR FAULTY AND DAMAGE CLAIM PURPOSES

尊贵的顾客，请在打开包裹之前录制一段视频，

以确保产品损坏的情况有证据。未附带录制视频的索赔将无法受理。

谢谢您的合作

Model

TUF-GAMING-750G-EVO

Intel Form Factor

ATX12V

PFC Type

Active PFC

ATX Standard

ATX 3.1

Dimensions

140 x 150 x 86 mm

Efficiency

80Plus Gold

MTBF

>120,000 hrs @ 40°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

20A 20A 62.5A 0.3A 3A

Combined Load

110W 110W 750W 3.6W 15W

Total Output

750W

Cable Connectors

MB 20+4pin x 1

CPU 4+4pin x 2

PCI-E 16pin x 1 (12V-2x6)

PCI-E 6+2pin x 2

SATA x 4

PERIPHERAL x 2

Package Contents

Power Cord x 1

Motherboard Power cable x 1 (610mm)

CPU 1-to-2 Cable x 1 (650mm+100mm)

PCI-E Gen 5.1 Cable (16-pin-to-16-pin) x 1 (500mm)

PCI-E 1-to-2 Cable (8-pin-to-6+2pin*2) x 1 (500+100mm)

SATA & Peripheral 1-to-2+1 Cable x 2 (400+120+120mm)

TUF Gaming Cable Tie x 3

User Manual x 1

Weight

1.32 kg (single PSU)
