Model

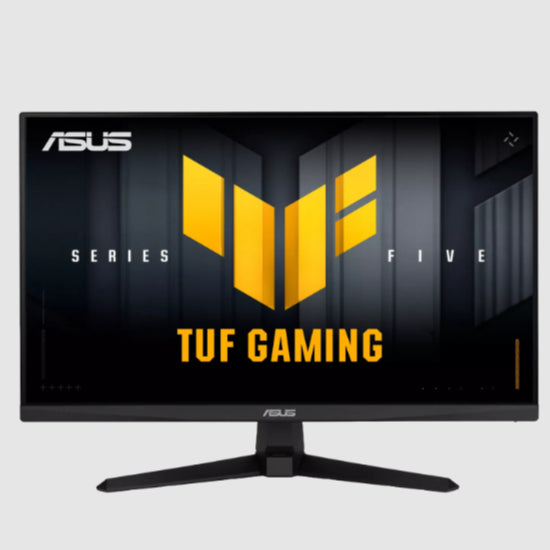

TUF Gaming VG249QM5A
Display
Panel Size (inch) : 23.8
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 527.04 x 296.46 mm
Display Surface : Anti-Glare
Backlight Type : LED
Panel Type : Fast IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.2745mm
Resolution : 1920x1080
Color Space (sRGB) : 99%
Color Space (DCI-P3) : 88%
Brightness (Typ.) : 300cd/㎡
Contrast Ratio (Typ.) : 1000:1
Display Colors : 16.7M
Response Time : 1ms(GTG), 0.3ms(min.)
Refresh Rate (Max) : 240Hz
HDR (High Dynamic Range) Support : HDR10
Flicker-free : Yes
Features
Trace Free Technology : Yes
GameVisual : Yes
Color Temp. Selection : Yes(4 modes)
GamePlus : Yes
HDCP : Yes, 2.3
Extreme Low Motion Blur : Yes
ELMB Sync: Yes
VRR Technology : Yes (Adaptive-Sync)
GameFast Input technology : Yes
Shadow Boost : Yes
DisplayWidget : Yes, DisplayWidget Center
Low Blue Light : Yes
ASUS Power Sync : Yes
Audio
Speaker : Yes(2Wx2)
I/O Ports
DisplayPort 1.4 x 1 (HBR2)
HDMI(v2.0) x 2
Earphone Jack : Yes
Signal Frequency
Digital Signal Frequency : DisplayPort: 267~267 KHz(H) / 48~240 Hz (V)
HDMI: 30~225 KHz (H) / 48~240Hz (V)
Power Consumption
Power Consumption : <15W
Power Saving Mode : <0.5W
Power Off Mode : <0.3W
Voltage : 100-240V, 50/60Hz
Mechanical Design
Tilt : Yes (+23° ~ -5°)
Height Adjustment : No
VESA Wall Mounting : 100x100mm
Kensington Lock : Yes
Dimensions (Esti.)
Phys. Dimension (W x H x D) : 54.10 x 39.40 x 17.40 cm (21.30" x 15.51" x 6.85")
Phys. Dimension without Stand (W x H x D) : 54.10 x 32.30 x 5.80 cm (21.30" x 12.72" x 2.28")
Box Dimension (W x H x D) : 60.00 x 40.50 x 16.80 cm (23.62" x 15.94" x 6.61")
Weight (Esti.)
Net Weight : 3.4 kg (7.50 lbs)
Net Weight without Stand : 2.9 kg (6.39 lbs)
Gross Weight : 5.0 kg (11.02 lbs)
Accessories (vary by regions)
DisplayPort cable
L-shaped Screwdriver
Power cord
Quick start guide
Warranty Card
Certificate
TÜV Flicker-free
TÜV Low Blue Light
VESA AdaptiveSync Display 240Hz
AMD FreeSync Premium
G-SYNC Compatible
FSC MIX
