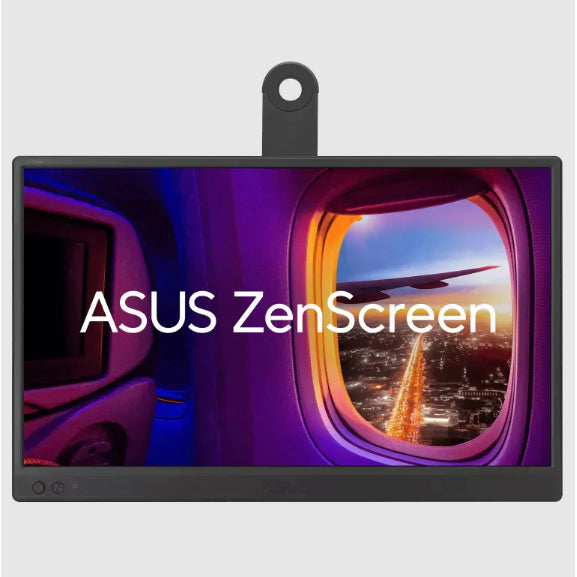

DISPLAY
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Resolution : 1920x1080
Response Time : 5ms(GTG)
Backlight Type : LED
Panel Type : IPS
Contrast Ratio (Typ.) : 800:1
Flicker-free : Yes
Aspect Ratio : 16:9
Display Surface : Anti-Glare
Refresh Rate (Max) : 60Hz
Brightness (Typ.) : 250cd/㎡
Panel Size (inch) : 15.6
Display Colors : 262K
Pixel Pitch : 0.179mm
Display Viewing Area (H x V) : 344.16 x 193.59mm
FEATURES
HDCP : Yes, 1.4
QuickFit : Yes (Photo/Alighment Grid)
DisplayWidget : Yes, DisplayWidget Center
Color Temp. Selection : Yes(4 modes)
GamePlus : Yes
Low Blue Light : Yes
Trace Free Technology : Yes
SPLENDID Technology : Yes
AUDIO
Speaker : No
I/O PORTS
USB-C x 2 (DP Alt Mode)
Mini HDMI x 1
SIGNAL FREQUENCY
Digital Signal Frequency : USB-C: 24~83KHZ (H) / 50~60Hz(V)
HDMI: 24~83KHZ (H) / 50~60Hz(V)
POWER CONSUMPTION
Power Off Mode : <0.3W
Voltage : 100-240V, 50/60Hz
Power Consumption : 7.64 W
Power Saving Mode : <0.5W
MECHANICAL DESIGN
1/4" Tripod Socket : Yes
Height Adjustment : No
DIMENSIONS (ESTI.)
Phys. Dimension without Stand (W x H x D) : 36.0 x 22.6 x 1.2 cm (14.17" x 8.90" x 0.47")
Box Dimension (W x H x D) : 43.4 x 29.0 x 7.6 cm (17.09" x 11.42" x 2.99")
WEIGHT (ESTI.)
Net Weight without Stand : 0.78 kg (1.72 lbs)
Gross Weight : 1.70 kg (3.75 lbs)
Gross Weight : 1.89 kg (4.17 lbs)
ACCESSORIES (VARY BY REGIONS)
ZenScreen sleeve
Warranty Card
USB-C cable
Quick start guide
Power adapter (optional)
Mini HDMI to HDMI cable
360° kickstand
CERTIFICATE
FSC MIX
TÜV Low Blue Light
TÜV Flicker-free
Energy Star
