Model

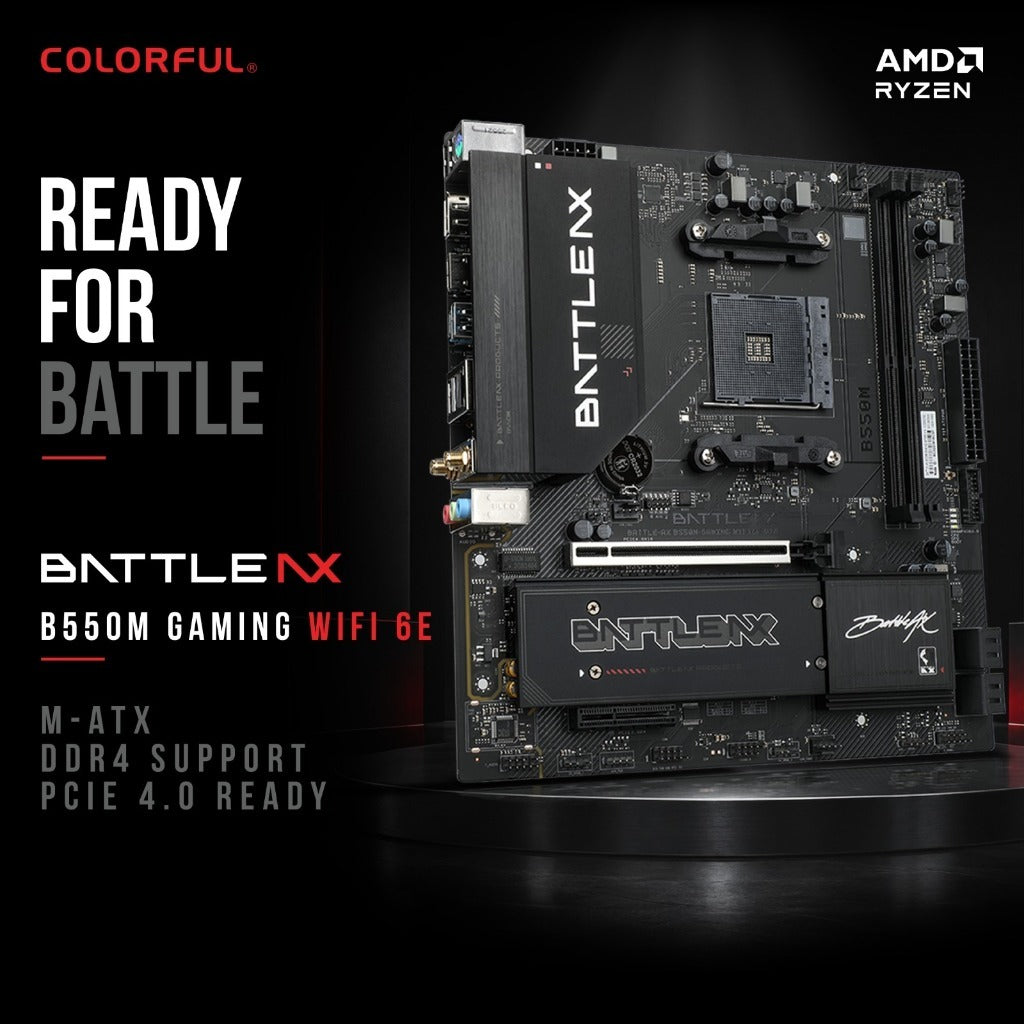

BATTLE-AX B550M-GAMING WIFI6E V14
Product Series
BATTLE-AX series
Chipset
AMD B550
Processor
Supports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard
(*Please visit the Colorful official website www.colorful.cn for the latest processor support list)
Memory
2 DDR4 memory sockets are provided, which can support up to 64GB of memory (a single socket can support up to 32 GB of memory)
- Support DDR4-4000(OC)/3733(OC)/3600(OC)/3466(OC)/3200/3000/2933/2800/2666/2400MHzMHz memory
- Support Extreme Memory Profile (XMP) memory technology
- Supports dual channel memory technology
(* Please visit www.colorful.cn for the latest memory compatibility list)
SATA Ports
2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 disk arrays using SATA hard disk devices
- M.2_1 slot: supports 2242/2280 M.2 SSD (PCIe 4.0 x4/SATA, CPU channel)
- M.2_2 slot: supports 2280 M.2 SSD (PCIe 3.0 x4, Chipset channel)
Board I/O
Rear I/O :
-2×USB 2.0 interfaces
-3×USB 3.2 Gen 1 Type-A interfaces
-1×USB 3.2 Gen 1 Type-C interface
-1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution
-1×DP 1.4 interface, Supports up to 8K 60Hz resolution
-1×PS/2 interface
-2×Wi-Fi 6E antenna interfaces
-1×2.5G network interface
-3×Audio interfaces (audio input/audio output/microphone)
On board:
-1×CPU fan pin
-2×System fan pins
-1×Water cooling pump pin
-1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces
-1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces
-3×5V 3-pin ARGB pins
-1×12V 4-pin RGB pin
-1×Front audio pin
-1×Front panel pin
-1×Speaker pin
-1×COM port pin
Expansion Slots
1×PCIe 4.0 x16 slot
1×PCIe 3.0 x4 slot
BIOS
128M UEFI, support multiple languages
Power Management
Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot
Hardware Monitor
CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
LAN
RTL8125 2.5Gbit LAN, MediaTek MT7902-D Wi-Fi 6E wireless network card, Bluetooth 5.3
Audio
Realtek ALC897 high fidelity decoding chip, Support up to 7.1 channels
Configuration
M-ATX
244mm x 225mm
