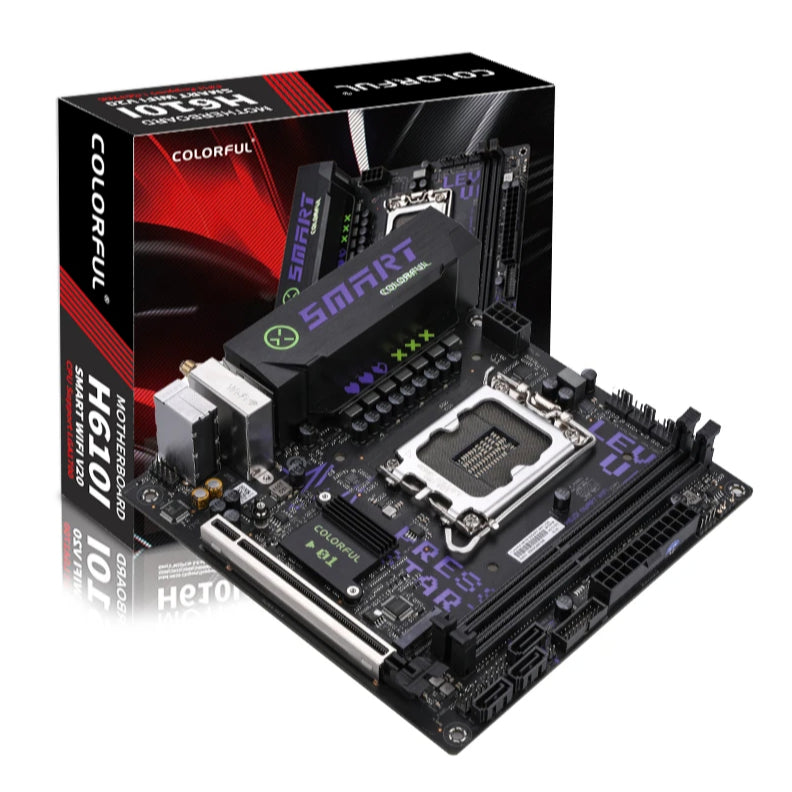

COLORFUL H610I SMART WIFI V20 - ITX Intel Motherboard / LGA 1700

Model Colorful H610I SMART WIFI V20

Product Series COLORFUL series

Chipset Intel H610

Processor Support the 14th/13th and 12th GEN Intel LGA 1700 (* Please visit www.colorful.cn for the latest memory compatibility list)

Memory2 DDR4 memory sockets are provided, which can support up to 64 GB of memory (a single socket can support up to 32 GB of memory)

- Support DDR4-3200/2933/2666/2400MHz memory

- Supports dual channel memory technology

(* Please visit www.colorful.cn for the latest memory compatibility list)

SATA Ports

1 M.2 slot and 3 SATA 6Gb/s hard disk interfaces

- M.2_1 slot: supports 2280 M.2 SSD (PCIe 3.0 x4, PCH channel)

(* See the official BIOS user guide of Colorful for the steps to create a RAID disk array)

Board I/O

Rear I/O :

-4×USB 2.0 interfaces

-2×USB 3.2 Gen 1 Type-A interfaces

-1×DP 1.2 interface, supports up to 4K 60Hz resolution

-1×HDMI 2.0 interface, supports up to 4K 60Hz resolution

-1×2.5G network interface

-2×Wi-Fi 6 antenna interfaces

-1×CMOS clearing key

-3×Audio interfaces (audio input/audio output/microphone)

On board:

-1×CPU fan pin

-2×System fan pins

-1×Water cooling pump pin

-1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces

-1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces

-1×5V 3-pin ARGB pin

-1×Front audio pin

-1×Front panel pin

-1×Speaker pin

-1×Clear CMOS jumper

Expansion Slots1×PCIe 4.0 x16 slot

BIOS128M UEFI, support multiple languages

Power Management Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot

Hardware Monitor CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring

LAN RTL8125BG 2.5Gbit LAN, AX101 WiFi 6 wireless network card, Bluetooth 5.2

Audio Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels

Configuration ITX 170mm x 170mm
