80 Plus Platinum
94% Efficiency
Full Bridge LLC + DC-to-DC
135mm DBB Silent Fan
100% Japanese Capacitors
Fully Modular Flat Cables
16 AWG PCI-e Cables
200 - 240V Input Voltage
7 Years Warranty

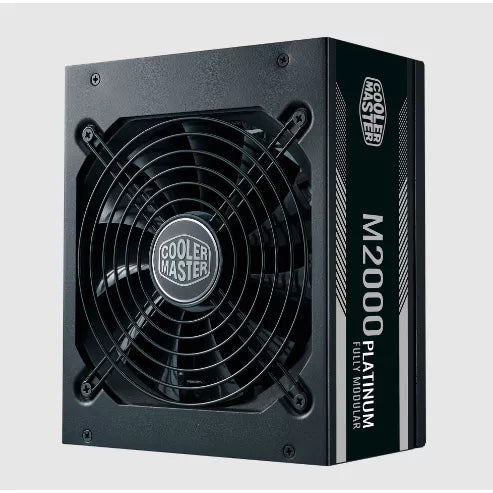

Model MPZ-K001-AFFBP
ATX Version ATX 12V V2.52
PFCActive PFC
Input Voltage 200-240V
Input Current 12A
Input Frequency 50-60Hz
Dimensions (L x W x H) 180 x 150 x 86 mm
Fan Size 135mm
Fan Bearing DBB
Fan Speed 2400 RPM
Efficiency 94% @ Typical Load
80 PLUS Rating 80 PLUS Platinum EU 230V
ErP 2014 Lot 3 Yes
Operating Temperature 50°C
Power Good Signal 100 - 150 ms
Hold Up Time> 16ms
MTBF> 100,000 Hours
Protections OPP, OVP, OCP, UVP, SCP, OTP, Surge and Inrush Protection
Regulatory TUV, cTUVus, CE, CCC, EAC, BIS, UKCA, RoHS2.0
ATX 24 Pin Connectors 1
EPS 4+4 Pin Connectors 2
SATA Connectors 12
Peripheral 4 Pin Connectors 3
FDD Cable 4 Pin Connectors 1
PCI-e 6+2 Pin Connectors 18
Series M Series
80 Plus Platinum
Modular Full Modular
