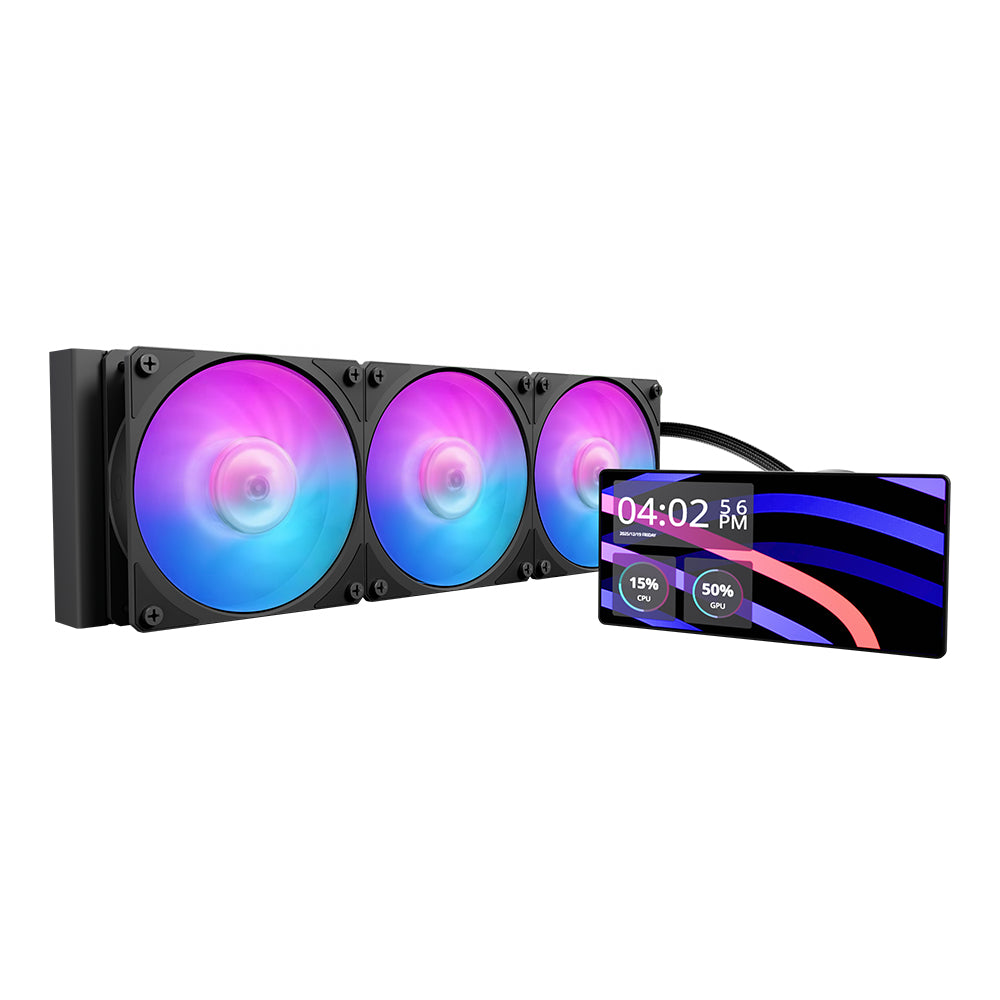

Cooler Master MasterLiquid Core LCD 6” ARGB 360mm AIO CPU Cooler With 6 Inch LCD Screen Black

PENTING . IMPORTANT . 注意

KEPADA PELANGGAN YANG DIHORMATI,

SEBELUM MEMBUKA BUNGKUSAN SILA BUAT RAKAMAN VIDEO

BAGI TUJUAN TUNTUTAN KEROSAKAN DAN KEHILANGAN

SEBARANG TUNTUTAN TANPA RAKAMAN TIDAK AKAN DILAYAN.

SEGALA KERJASAMA AMATLAH DIHARGAI

DEAR VALUED CUSTOMER,

BEFORE UNBOXING THE PACKAGE PLEASE MAKE A

VIDEO RECORDING FOR FAULTY AND DAMAGE CLAIM PURPOSES

尊贵的顾客，请在打开包裹之前录制一段视频，

以确保产品损坏的情况有证据。未附带录制视频的索赔将无法受理。

谢谢您的合作

Specifications - MasterLiquid Core LCD 6" 360 Black ARGB

Model Name

MasterLiquid Core LCD 6" 360 Black ARGB

Model Number

MLW-D36M-A24PA-L1

Exterior Color

Black

Intel CPU Socket

Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket

AMD CPU Socket

AMD® AM5 / AM4 socket

Waterblock Dimensions

153.5 x 84.2 x 83.9 mm (6 x 3.3 x 3.3 inch)

Radiator Dimensions

394 x 119.6 x 27.2 mm (15.5 x 4.7 x 1.1 inch)

Radiator Material

Aluminum

Tube Length

400mm

Fan Dimensions

120 x 120 x 25 mm (4.7 x 4.7 x 1 inch)

Fan Profiles

Addressable RGB

Fan Quantity (pcs)

3 PCS

Fan Speed

0-2400 RPM ± 10%

Fan Air Flow (Max)

127.8 m³/h (75.2 CFM)

Fan Air Pressure (Max)

3.63 mmH₂O

Fan MTTF

>200,000 hours

Fan Noise Level (Max)

30 dB(A)

Fan Bearing

LDB

Fan Connector

7-Pin PWM+ARGB

Fan Rated Voltage

12 VDC

Fan Rated Current

0.2 A

Fan Safety Current

0.4 A

Fan Power Consumption

2.4 W

Pump Profiles

Addressable RGB

Pump Speed

3200±10% RPM

Pump MTTF

> 35,0000 hours

Pump Noise Level (Max)

25 dB(A)

Pump Rated Voltage

12 VDC

Pump Power Consumption

7.2 W

Pump Connector

3-Pin ARGB + 4-Pin PWM

Display Type

TFT LCD

Display Area (Resolution)

6 inch (960*480)

Luminance

300 cd/m²

Display Rated Voltage

5 VDC

Display Rated Current

0.4 A

Display Safety Current

0.6 A

Display Power Consumption

3 W

Display Connector

USB 2.0 9PIN

Orientation

Software-MasterCTRL adjustable

Warranty

6 years
