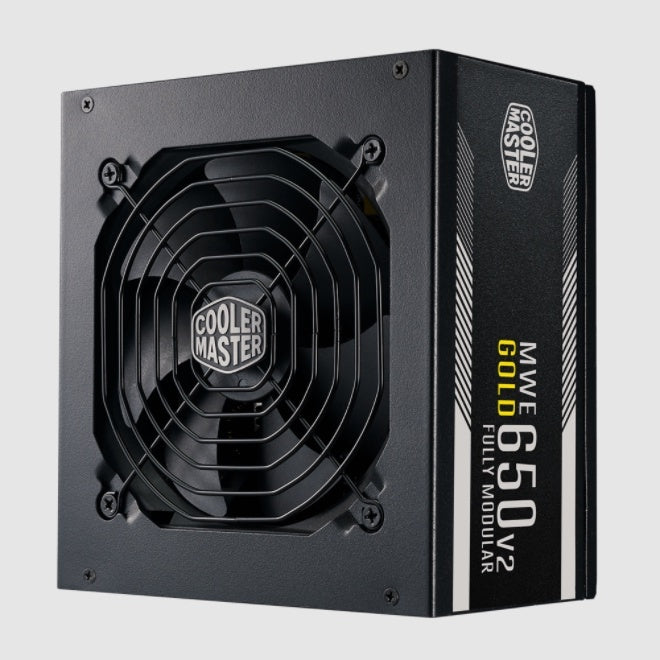

Cooler Master MWE 650W / 750W / 850W 80+ GOLD FULL MODULAR POWER SUPPLY PSU

PRODUCT NAME

MWE Gold 650 Full Modular

80 PLUS

Gold

MODEL

MPY-6501-AFAAG

ATX VERSION

ATX 12V V2.31

PFC

Active PFC

INPUT VOLTAGE

100-240V

INPUT CURRENT

12-6A

INPUT FREQUENCY

50/60Hz

DIMENSIONS (L X W X H)

160 x 150 x 86 mm

FAN SIZE

120mm

FAN BEARING

LDB

POWER GOOD SIGNAL

100 - 500 ms

HOLD UP TIME

>14ms at 100% load

EFFICIENCY

90% Typically

ERP 2014 LOT 3

Yes

MTBF

>100,000 Hours

OPERATING TEMPERATURE

0-45°C

PROTECTIONS

OVP, OPP, UVP, SCP, OTP, OCP

REGULATORY

CCC, CE, TUV-SUD, RCM, EAC, cTUVus, FCC, BSMI, KC, CB

MB 24-PIN CONNECTORS

1

CPU 12V 4+4 PIN CONNECTORS

1

CPU 12V 8 PIN CONNECTORS

1 (for updated models)

SATA CONNECTORS

8

PERIPHERAL 4-PIN CONNECTORS

6

FDD CABLE 4-PIN CONNECTORS

1

PCI-E 6+2 PIN CONNECTORS

4

MODULAR

Full Modular

WATTAGE

500 to 750W

SERIES

MWE Gold Series

Model - 750W V2 ATX 3.0

MPE-7501-AFAAG-3

ATX Version

ATX 12V Ver. 3.0

PFC

Active PFC

Input Voltage

100-240V

Input Current

10-5A

Input Frequency

50-60Hz

Dimensions (L x W x H)

160 x 150 x 86 mm

Fan Size

120mm

Fan Bearing

HDB

Efficiency

≥90% @ Typical Load

80 PLUS Rating

80 PLUS Gold

ErP 2014 Lot 3

Yes

Operating Temperature

0-50°C

Power Good Signal

100 - 150 ms

Hold Up Time

≥ 16ms

MTBF

>100,000 Hours

Protections

UVP / OVP / OPP / OTP / SCP / OCP

Regulatory

TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA

ATX 24 Pin Connectors

1

EPS 4+4 Pin Connectors

1

EPS 8 Pin Connector

1

SATA Connectors

12

Peripheral 4 Pin Connectors

4

PCI-e 6+2 Pin Connectors

4

12VHPWR Connector

1 (1 to 3)

Category

Above 750W

Series

MWE Gold Series

Modular

Fully Modular

Form Factor

ATX

80 Plus Efficiency

Gold

Watts

750W

Model - MWE Gold 850 V2 ATX 3.1

MPE-8501-AFAAG-3E**

ATX Version

ATX 12V Ver. 3.1

PFC

Active PFC

Input Voltage

100-240V

Input Current

12-6A

Input Frequency

50-60Hz

Dimensions (L x W x H)

160 x 150 x 86 mm

Fan Size

120mm

Fan Bearing

HDB

Efficiency

≥90% @ Typical Load

80 PLUS Rating

80 PLUS Gold

ErP 2014 Lot 3

Yes

Operating Temperature

0-50°C

Power Good Signal

100 - 150 ms

Hold Up Time

≥ 16ms

MTBF

>100,000 Hours

Protections

UVP / OVP / OPP / OTP / SCP / OCP

Regulatory

TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA

ATX 24 Pin Connectors

1

EPS 4+4 Pin Connectors

1

EPS 8 Pin Connector

1

SATA Connectors

12

Peripheral 4 Pin Connectors

4

PCI-e 6+2 Pin Connectors

4

12V-2x6 Connectors

1 (1 to 3)

Category

Above 750W

Series

MWE Gold Series

Modular

Fully Modular

Form Factor

ATX

80 Plus Efficiency

Gold

Watts

850W
