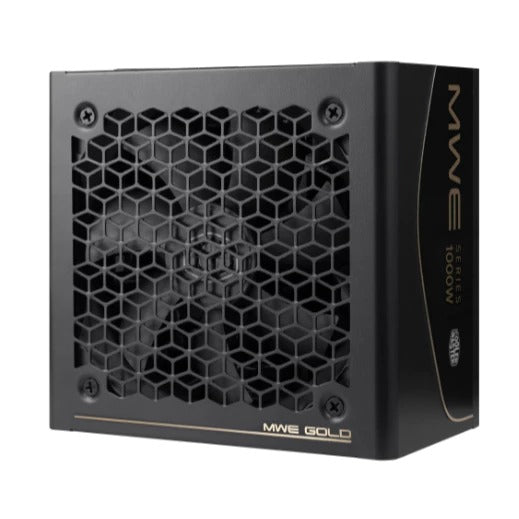

Specifications
Model
750W: MPM-75F4-AFG | 850W: MPM-85F4-AFG | 1000W: MPM-A0F4-AFG
ATX Version
ATX 12V Ver. 3.1
PFC
Active PFC
Input Voltage
100 – 240 V~
Input Current
750W / 850W: 10 – 6 A | 1000W: 15 – 8 A
Input Frequency
50-60Hz
Dimensions (L x W x H)
140 x 150 x 86 mm
Fan Size
120mm
Fan Bearing
Hydrodynamic bearing
Efficiency
≥90% @ Typical Load
80 PLUS Rating
80 PLUS Gold
ErP 2014 Lot 3
Yes
Operating Temperature
0-40°C
Power Good Signal
100 - 150 ms
Hold Up Time
≥ 11ms @ 100% Load
MTBF
>100,000 hours @ 25℃ ambient
Protections
SCP / OVP / UVP / OCP / OPP / OTP
Regulatory
cTÜVus / TÜV / RoHS / CB / CE / FCC / BSMI / CCC / KCC / RCM / UKCA
ATX 24 Pin Connectors
x1 = 1x (600mm)
EPS 4+4 Pin Connectors
x1 = 1x (700mm)
EPS 8 Pin Connector
x1 = 1x (700mm)
PCI-E 6+2 Pin Connectors
750W / 850W: x4 = 2x (600+120mm) ｜1000W: x3 = 3x (600mm)
12V-2x6(12+4 Pin) Connectors
x1 = 1x (600mm)
SATA Pin Connectors
x6 = 2x (400+120+120mm)
Peripheral 4 Pin Connectors
x3 = 1x (400+120+120mm)
