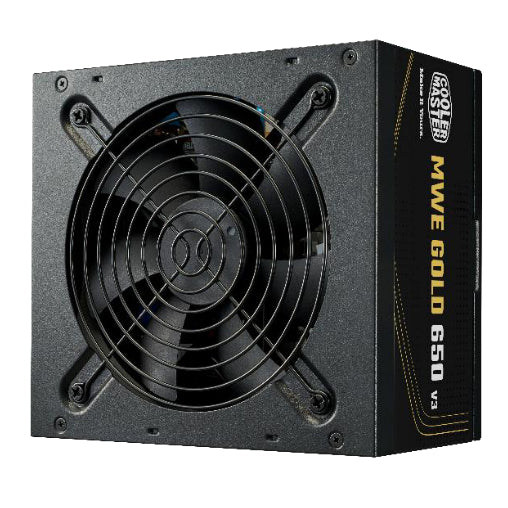

Cooler Master MWE NM 550W / 650W / 750W / 850W Gold V3 ATX3.1 80 PLUS POWER SUPPLY PSU

ATX version

ATX 12V Ver. 3.1

Power Factor Correction

Active PFC

Input voltage

100-240V

Input Current

10-6A (850/750W), 10-5A (650W), 8-4A (550W)

Input frequency

50-60Hz

Dimensions (L x W x H)

140 x 150 x 86 mm

Fan size

120mm

Fan bearings

HDB

Fan speed

2400 RPM (850/750/650W), 1800 RPM (550W)

Conversion efficiency

Typical conversion ≥90%

80 PLUS Rating

80 PLUS Gold

ErP 2014 Lot 3

conform to

Operating temperature

0-40°C

Power Good Signal

100 - 150 ms

Continuous output time

≥16ms at 80% Load

Mean Time Between Failures (MTBF)

>100,000 Hours (850/750W), >100,000 Hours @ 25℃ambient (650/550W)

Protection Mechanism

UVP/OVP/OPP/OTP/SCP/OCP

Safety

cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)

ATX 24 Pin Power Connector

1

EPS 8 Pin / 4+4 Pin Connectors

2

PCI-e 6+2 Pin Power Connector

4 (850/750/650W), 2 (550W)

SATA power connector

6

Peripheral 4-pin power connector

3

12V-2x6 (12+4 Pin) Connectors

1 (850/750W)

Product range

MWE Gold Series

Modularity

No modularity

Form Factor

ATX

80 Plus

Gold Certification
