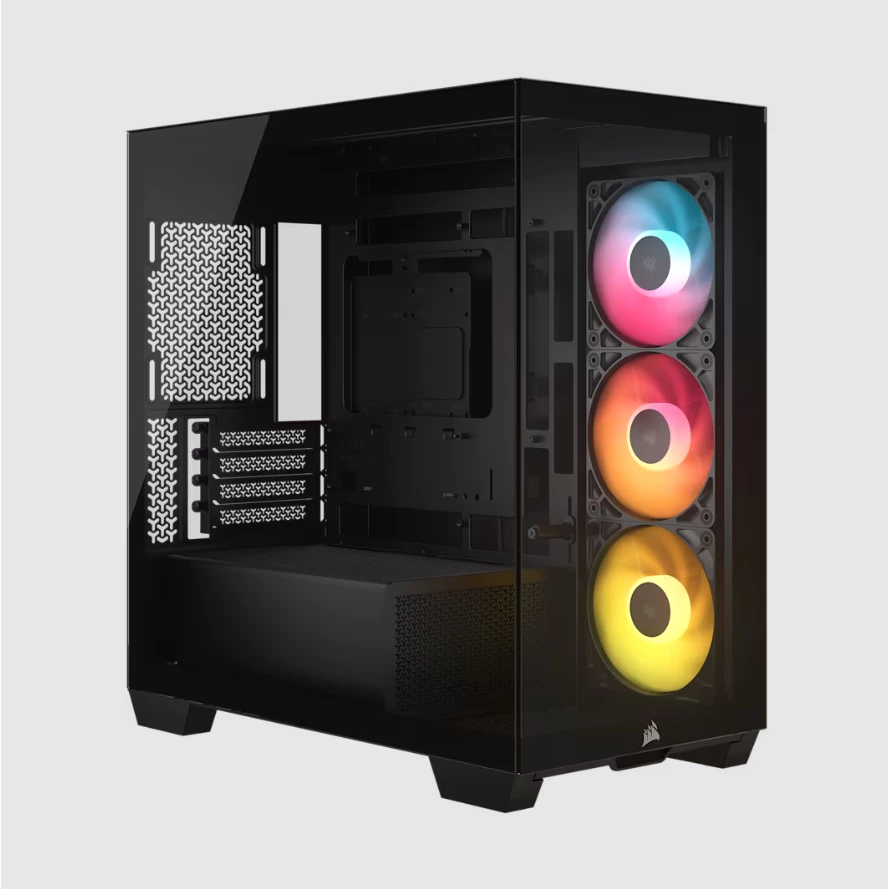

▶ 410mm of GPU clearance for big GPUs
▶ Supports a top-mounted 360mm AIO CPU Cooler
▶ A smaller desktop footprint with room to build
▶ 3x pre-installed RS120-R ARGB reverse-rotor intake fans
▶ Wraparound glass front and side panels
▶ Supports up to 10x 120mm fans for effective cooling
▶ Built-in GPU Anti-sag Stabilization Arm
▶ Compatible with reverse-connector mATX motherboards
Tech Specs
Case Supported
Mini-ITX, MicroATX
Case Height
447mm
Case Length
436.4mm
Case Width
232mm
Material
Steel, Tempered Glass, Plastic
Color
BLACK
Case Size
Micro-ATX
Radiator Compatibility
120mm, 140mm, 240mm, 280mm, 360mm
Case Window
Tempered Glass
Compatible Liquid Coolers
H60, H100, H115, H150, NAUTILUS, TITAN, TITAN II, TITAN ULTRA
Case Warranty
2 Year
Internal 3.5" Drive Bays
1
Internal 2.5" Drive Bays
2
Case Front IO
(1x) USB 3.2 Gen 2x2 Type-C, (1x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out
Weight
8.425kg
Case Expansion Slots
4 Horizontal
Case Power Supply
ATX
Radiator Support - Top
360mm, 280mm, 240mm
Radiator Support - Front
None
Radiator Support - Bottom
None
Radiator Support - Side
240mm
Radiator Support - Rear
120mm
Fan Support - Top
3x 120mm, 2x 140mm
Fan Support - Front
None
Fan Support - Bottom
3x 120mm
Fan Support - Side
3x 120mm
Fan Support - Rear
1x 120mm
Front IO Motherboard Connections
1x USB-3.2 Gen2x2 Type-E, 1x USB 3.2 Gen1 20-Pin, 1x F_PANEL, 1x HD Audio
Reverse Connector Motherboard Support
Yes
Included Fans
RS-R ARGB Series
Dust Filtration
Yes
Cable Routing Space
24mm
RapidRoute Included
No
Left Side Panel
Tempered Glass
Right Side Panel
Steel
Vertical Mount Support
Unsupported
