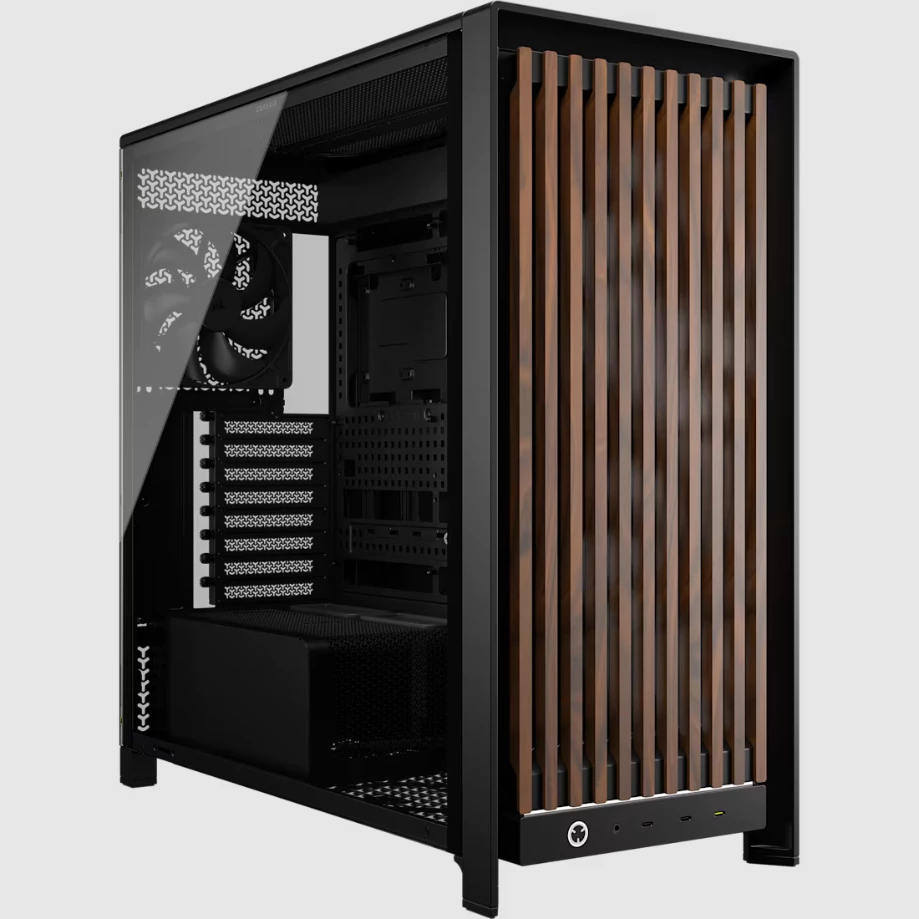

▶ Solid wood front panel design with great airflow
▶ FSC-certified wood from responsibly-managed forests
▶ 2x RS200 and 1x RS140 fans pre-installed
▶ 11x 120mm or 10x 140mm fan mounts for effective cooling
▶ InfiniRail™ Fan Mounting System for easier building
▶ Customizable FRAME Modular Case System
▶ Supports 3x mounting locations for 420mm radiators
▶ 425mm GPU clearance with front fans installed
▶ GPU Anti-sag Stabilization Arm included
▶ Compatible with reverse-connector motherboards
Tech Specs
Case Supported
Mini-ITX, MicroATX, ATX, E-ATX (305mm x 277mm)
Case Height
542mm
Case Length
556mm
Case Width
250mm
Material
Steel, Solid Wood, Tempered Glass, Plastic
Color
BLACK
Case Size
Mid-Tower
Case Window
Tempered Glass
Compatible Liquid Coolers
H60, H100, H115, H150, NAUTILUS, TITAN, TITAN II, TITAN ULTRA
Internal 3.5" Drive Bays
1
Internal 2.5" Drive Bays
4
Maximum CPU Cooler Height
175mm
Case Front IO
(1x) USB 3.2 Gen 2x2 Type-C, (2x) USB 3.2 Gen 1 Type-C, (1x) Audio in/out
Maximum GPU Length
450mm
Weight
16.24kg
Case Expansion Slots
7 Horizontal or 3 Vertical
Case Power Supply
ATX
Radiator Support - Top
420mm, 360mm, 280mm, 240mm
Radiator Support - Front
420mm, 360mm, 280mm, 240mm
Radiator Support - Bottom
None
Radiator Support - Side
420mm, 360mm, 280mm, 240mm
Radiator Support - Rear
140mm, 120mm
Fan Support - Top
3x 120mm, 3x 140mm
Fan Support - Front
3x 120mm, 3x 140mm, 2x 200mm
Fan Support - Side
3x 120mm, 3x 140mm
Fan Support - Rear
1x 120mm, 1x 140mm
Front IO Motherboard Connections
1x USB-3.2 Gen2x2 Type-E, 1x USB 3.2 Gen1 20-Pin, 1x F_PANEL, 1x HD Audio
Reverse Connector Motherboard Support
Yes
Included Fans
RS Series
Dust Filtration
Yes
Cable Routing Space
42mm
RapidRoute Included
Yes
Left Side Panel
Tempered Glass
Right Side Panel
Steel
Vertical Mount Support
Supported (Riser Card Sold Separately)
