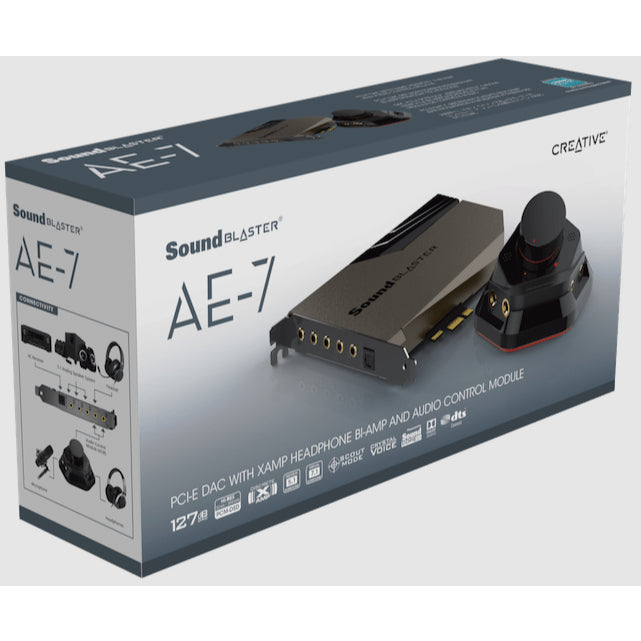

CREATIVE Sound Blaster AE-7 - Hi-Res PCI-e DAC and Amp Sound Card w/ Xamp Discrete Headphone Bi-amp+Audio Control Module

Specifications

Weight

Main Card: 215g / 7.58 oz, Audio Control Unit (ACM): 284g / 10.02 oz

Dimensions

Main Card: 145 x 20 x 128 mm / 5.71 x 0.79 x 5.04 inches, Audio Control Module (ACM): 100 x 92 x 70 mm / 3.94 x 3.62 x 2.76 inches

Headphone Amp

Output Impedance: 1Ω, Supported Headphone Impedance: 16–600Ω, IEM: 16–31Ω (1.9V RMS), Normal: 32–149Ω (3V Rms), High Gain: 150–600Ω (5.6V Rms)

Audio Technology

Sound Core3D

Direct Mode

Playback Resolution (Stereo): PCM 16-bit / 44.1, 48.0, 88.2, 96.0, 192.0, 384 kHz, PCM 24-bit / 44.1, 48.0, 88.2, 96.0, 192.0, 384 kHz, PCM 32-bit / 44.1, 48.0, 88.2, 96.0, 192.0, 384 kHz, DSD64 (2.8 MHz)

Playback Resolution (Optical Out): 16-bit / 44.1, 48.0, 88.2, 96.0 kHz, 24-bit / 44.1, 48.0, 88.2, 96.0 kHz

Recording Resolution

Mic-in: 16-bit / 16.0, 44.1, 48.0, 88.2, 96.0 kHz, 24-bit / 44.1, 48.0, 88.2, 96.0 kHz, 32-bit / 44.1, 48.0, 88.2, 96.0 kHz

AUX-in: 16-bit / 44.1, 48.0, 88.2, 96.0 kHz, 24-bit / 44.1, 48.0, 88.2, 96.0 kHz

What-U-Hear: 16-bit / 44.1, 48.0 kHz, 24-bit / 44.1, 48.0 kHz, 32-bit / 44.1, 48.0 kHz

DSP Mode

Playback Resolution (Stereo & Surround 5.1)

16-bit / 44.1, 48.0, 88.2, 96.0kHz, 24-bit / 44.1, 48.0, 88.2, 96.0kHz, 32-bit / 44.1, 48.0, 88.2, 96.0kHz

Platform

PCI-e

Connectivity Options (Main)

1 x TOSLINK Optical Out, 1 x ⅛″ Rear Out, 1 x ⅛″ Center / Sub Out, 1 x ⅛“ Mic-in / Line-in (Software selectable, default as Mic-in), 1 x ⅛“ Headphone / Headset Out (default as Headphone), 1 x ⅛″ Front-out

Connectivity Options (Accessory)

1 x ⅛″ Mic-in (Mono), 1 x ⅛″ HP Out (3-pole), 1 x ¼″ HP Out (3-pole), 1 x ¼″ Mic-in (Mono)

Headphone Amp

Output Impedance: 1Ω, Supported Headphone Impedance: 16–600Ω, IEM: 16–31Ω (1.9V RMS), Normal: 32–149Ω (3V Rms), High Gain: 150–600Ω (5.6V Rms)

Supported Operating Systems

Windows® 8, Windows® 8.1, Windows® 10, Windows® 11

DAC

THD+N (Stereo) : 0.0001%, Dynamic Range (Stereo): 127 dB

Power

PCI-e bus power

Package Contents

Sound Blaster AE-7 (Main Card)

Audio Control Module

Quick Start Leaflet

Warranty Leaflets

Warranty

1-year Limited Hardware Warranty
