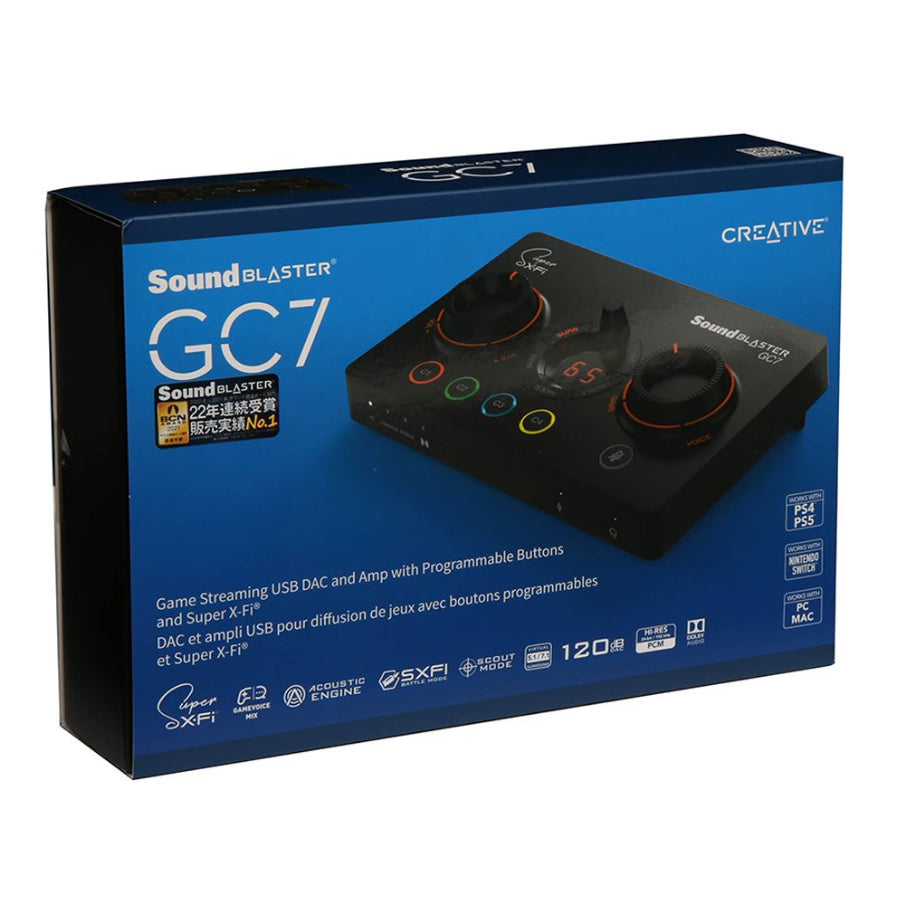

CREATIVE Sound Blaster GC7 Game Streaming USB DAC and Amp with Programmable Buttons and Super X-Fi

SPECIFICATIONS

GameVoice Mix

PS4 and PS5 (PS5 requires optional HDMI to SPDIF converter)

Bluetooth Low Energy (BLE)

Yes ( Mobile Creative app support, Super X-Fi Profile Transfer and OTA Firmware upgrades)

Controls

4 Reassignable C1-C4 buttons, Master volume dial, GameVoice Mix dial, SXFI button, Surround button, Bass button, Treble button, Mic button, Rotary dial, Mic mute / unmute button, Power button, Platform mode switch, Headphone gain switch

Weight

280g

Dimensions

47 x 114 x 173 mm

Dynamic Range (DNR)

116 dB

Audio Technology

SB-Axx1™, Super X-Fi Ultra DSP

Max. Playback Quality

DSP Mode: PCM 16 / 24-bit 48.0, 96.0kHz, 192 kHz, SPDIF Output: PCM 16 / 24-bit, 48.0 kHz

Max. Recording Quality

Optical-in:

16 / 24-bit 48.0, 96.0, 192.0 kHz, SPDIF Input:

16 / 24-bit, 48.0, 96.0, 192 kHz, SPDIF passthrough:

16 / 24-bit, 48.0, 96.0, 192 kHz

Line-in:

16/24-bit, 48.0, 96.0, 192.0 kHz

Mic-in:

16/24-bit / 48.0, 96.0, 192,0 kHz

Recording Resolution

SPDIF Input: 16 / 24-bit, 48.0, 96.0, 192 kHz

SPDIF passthrough: 16 / 24-bit, 48.0, 96.0, 192 kHz

Mic-in: 16 / 24-bit 48.0, 96.0, 192.0 kHz

Optical In: 16 / 24-bit 48.0, 96.0, 192.0 kHz

Line-in: 16 / 24-bit 48.0, 96.0, 192.0 kHz

Platform

USB 2.0, USB 3.0

Connectivity Options (Main)

1 x 1/8″ Ext. Mic-in Jack, 1 x 1/8″ Line In / Mobile, 1 x 1/8″ Line Out, 1 x 1/8″ 4-Pole Combo Jack, 1 x SPDIF In, 1 x SPDIF Out, 1 x Type-C port for PC / Mac / Consoles

Headphone Amp

32–300Ω, Output Impedance: 10Ω

Max Channel Output

Stereo

Audio Technologies

CrystalVoice

Supported Operating Systems

Windows® 10, Windows® 11

Included Accessories

US TOSLINK Cable, USB-C to USB-A Cable, 4-pole 3.5 mm AUX Cable

DAC

S/N (Noise Gate Enabled) 125 dB (A-weighted), THD+N: ~0.0005%

ADC

Dynamic Range: 114dB (A-weighted), THD+N: 0.0006%

Power

USB 2.0 / 3.0, USB Bus Powered

Recommended Usage

Gaming

SYSTEM REQUIREMENTS

Windows® OS

● Intel® Core™i3 or AMD® Ryzen equivalent processor

● Intel, AMD or 100% compatible motherboard

● Microsoft® Windows 10 32 / 64 bit or higher

● 1 GB RAM

● >600 MB of free hard disk space

● USB 2.0 / USB 3.0 port

Mac® OS

● macOS 10.15 Catalina or higher

● Supports Intel-based and Apple CPU chipsets

● 1 GB RAM

● USB 2.0 / USB 3.0 port

PS4

● Firmware Ver 5.0 or later

● Available USB port

Nintendo Switch

● Switch OS 5.0 or later

● Available 3.5 mm headphone port on console

● Available USB port (in docking mode)

*Voice communications supported when connected via 3.5 mm port and with Bluetooth to Android and iOS Nintendo Switch Online app or VOIP client

PACKAGE CONTENTS

● 1x Sound Blaster GC7

● 1x USB-C to USB-A Cable

● 1x Optical Cable

● 1x 3.5 mm AUX-in Cable
