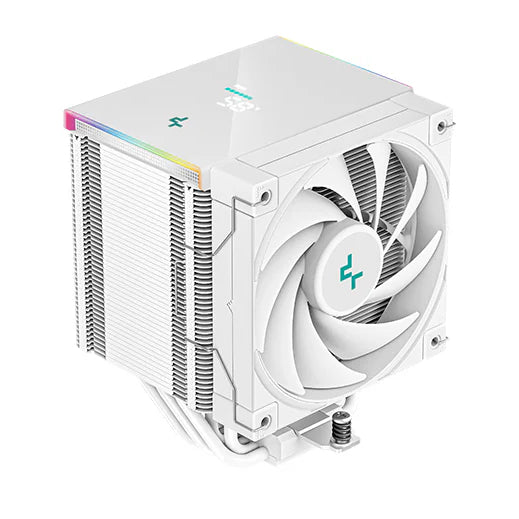

DeepCool AK400 / AK500 / AK620 Digital / PRO CPU Cooler With Digital Screen Temperature Display

AK400 DIGITAL BLACK/ WHITE

Application For

Intel LGA1700/1200/1151/1150/1155

AMD AM5/AM4.

Technical Spec

Product Dimensions126×97×156 mm(L×W×H)

Heatsink Dimensions120×60×152 mm(L×W×H)

Net Weight 695 g

Heatpipe Ø6 mm×4 pcs

Fan Dimensions 120×120×25 mm(L×W×H)

Fan Speed 500~1850 RPM±10%

Fan Airflow 68.99 CFM

Fan Air Pressure 2.19 mmAq

Fan Noise ≤28 dB(A)

Fan Connector 4-pin PWM

Bearing Type Fluid Dynamic Bearing

Fan Rated Voltage 12 VDC

Fan Rated Current 0.12 A

Fan Power Consumption 1.44 W

LED Type Addressable RGB LED

LED Connector 3-pin(+5V-D-G) and 9-pin USB 2.0

*****************************************************************************************

AK500 DIGITAL BLACK/WHITE

Application For

Intel LGA2066/2011-v3/2011/1700/1200/1151/1150/1155

AMD AM5/AM4

Application For

Intel

LGA2066/2011-v3/2011/1700/1200/1151/1150/1155

AMD

AM5/AM4

Technical Spec

Product Dimensions 127×117×160 mm(L×W×H)

Heatsink Dimensions 127×92×156 mm(L×W×H)

Net Weight 1291 g

Heatpipe Ø6 mm×5 pcs

Fan Dimensions 120×120×25 mm(L×W×H)

Fan Speed 500~1850 RPM±10%

Fan Airflow 68.99 CFM

Fan Air Pressure 2.19 mmAq

Fan Noise ≤28 dB(A)

Fan Speed (with LSP) 500~1550 RPM±10%

Fan Airflow (with LSP) 52.24 CFM

Fan Air Pressure (with LSP) 1.2 mmAq

Fan Noise (with LSP) ≤25.9 dB(A)

Fan Connector 4-pin PWM

Bearing Type Fluid Dynamic Bearing

Fan Rated Voltage 12 VDC

Fan Rated Current 0.12 A

Fan Power Consumption 1.44 W

LED Type Addressable RGB LED

LED Connector 3-pin(+5V-D-G) and 9-pin USB 2.0

*****************************************************************************************

AK620 DIGITAL BLACK / WHITE

Application For

Intel LGA2066/2011-v3/2011/1700/1200/1151/1150/1155

AMD AM5/AM4

Technical Spec

Product Dimensions129×138×162 mm(L×W×H)

Heatsink Dimensions127×110×157 mm(L×W×H)

Net Weight 1486 g

Heatpipe Ø6 mm×6 pcs

Fan Dimensions 120×120×25 mm(L×W×H)

Fan Speed 500~1850 RPM±10%

Fan Airflow 68.99 CFM

Fan Air Pressure 2.19 mmAq

Fan Noise ≤28 dB(A)

Fan Connecto r4-pin PWM

Bearing Type Fluid Dynamic Bearing

Fan Rated Voltage 12 VDC

Fan Rated Current 0.12 A

Fan Power Consumption 1.44 W

LED Type Addressable RGB LED

LED Connector 3-pin(+5V-D-G) and 9-pin USB 2.0

*****************************************************************************************

AK620 DIGITAL PRO BLACK / WHITE

Application For

Intel LGA2066/2011-v3/2011/1851/1700/1200/1151/1150/1155

AMDAM5/AM4

Technical Spec

Product Dimensions 129×138×163 mm(L×W×H)

Heatsink Dimensions 127×110×154 mm(L×W×H)

Net Weight 1491 g

Heatpipe Ø6 mm×6 pcs

Fan Dimensions 120×120×25 mm(L×W×H)Fan Speed 500~1750 RPM±10%

Fan Airflow 60.89 CFMFan Air Pressure 2.91 mmAq

Fan Noise ≤25 dB(A)

Fan Connector 4-pin PWMBearing Type Fluid Dynamic Bearing

Fan Rated Voltage 12 VDC

Fan Rated Current 0.25 A

Fan Power Consumption 3 W

LED Type Addressable RGB LED

LED Connector 3-pin(+5V-D-G) and 9-pin USB 2.0

LED Rated Voltage 5 VDC

LED Power Consumption 5.55 W
