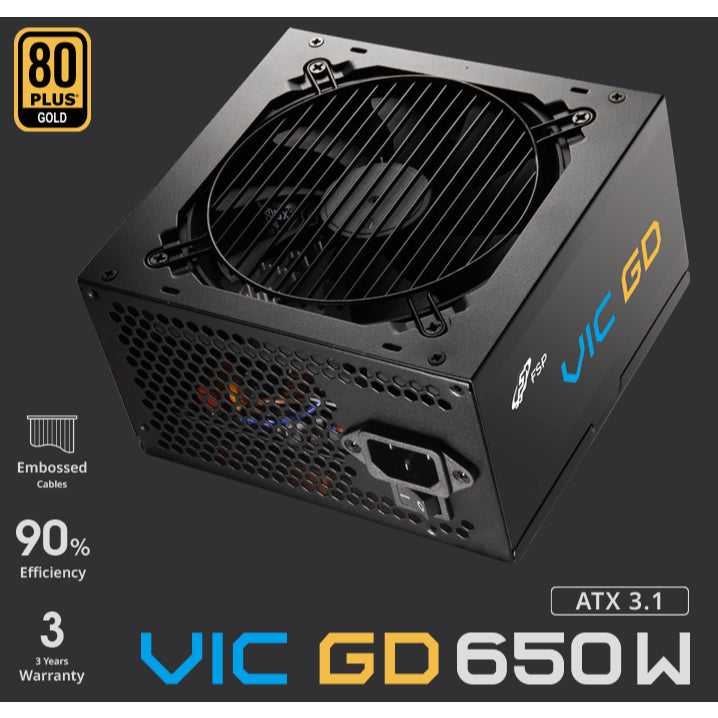

FSP VIC GD 650W / 750W / 850W ATX3.1 PCle 5.1 Ready 80 PLUS GOLD Non Modular PSU / Single +12V Rail

PENTING . IMPORTANT . 注意

KEPADA PELANGGAN YANG DIHORMATI,

SEBELUM MEMBUKA BUNGKUSAN SILA BUAT RAKAMAN VIDEO

BAGI TUJUAN TUNTUTAN KEROSAKAN DAN KEHILANGAN

SEBARANG TUNTUTAN TANPA RAKAMAN TIDAK AKAN DILAYAN.

SEGALA KERJASAMA AMATLAH DIHARGAI

DEAR VALUED CUSTOMER,

BEFORE UNBOXING THE PACKAGE PLEASE MAKE A

VIDEO RECORDING FOR FAULTY AND DAMAGE CLAIM PURPOSES

尊贵的顾客，请在打开包裹之前录制一段视频，

以确保产品损坏的情况有证据。未附带录制视频的索赔将无法受理。

谢谢您的合作

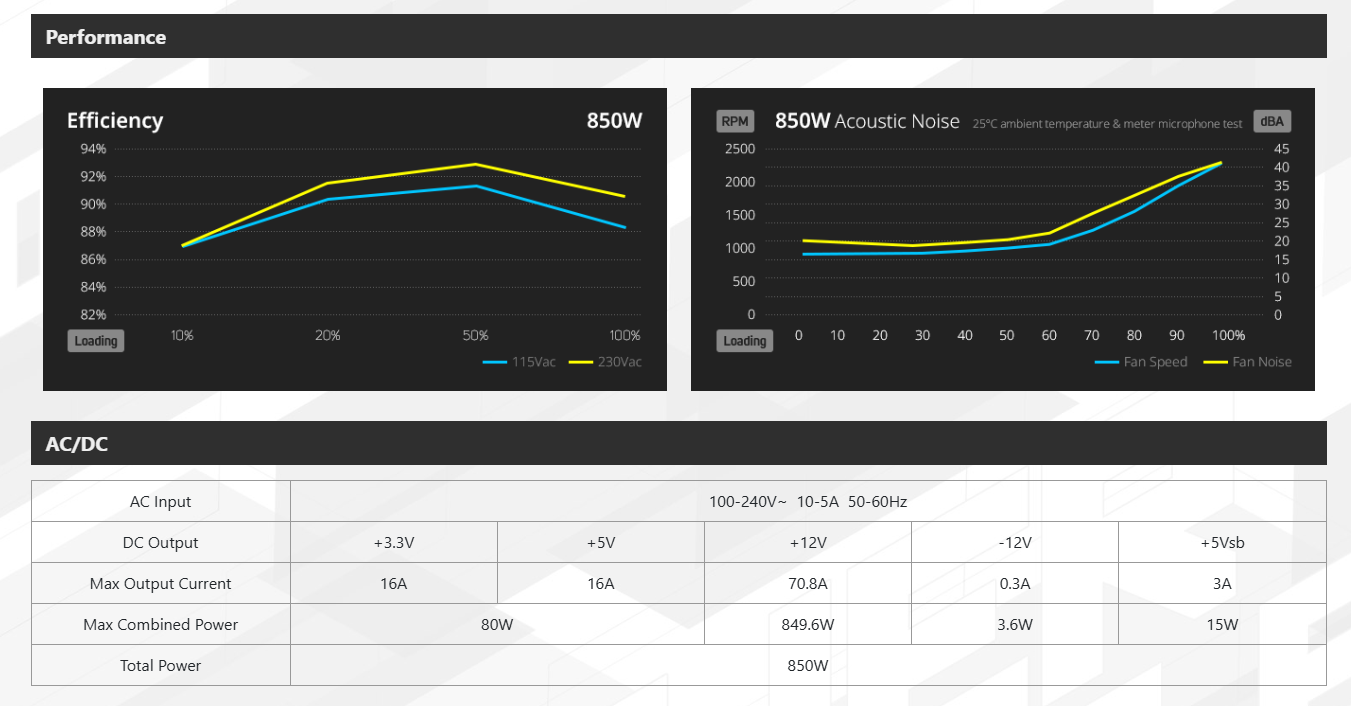

Specifications

Model VIC-850GD

Rated Output Power 850W

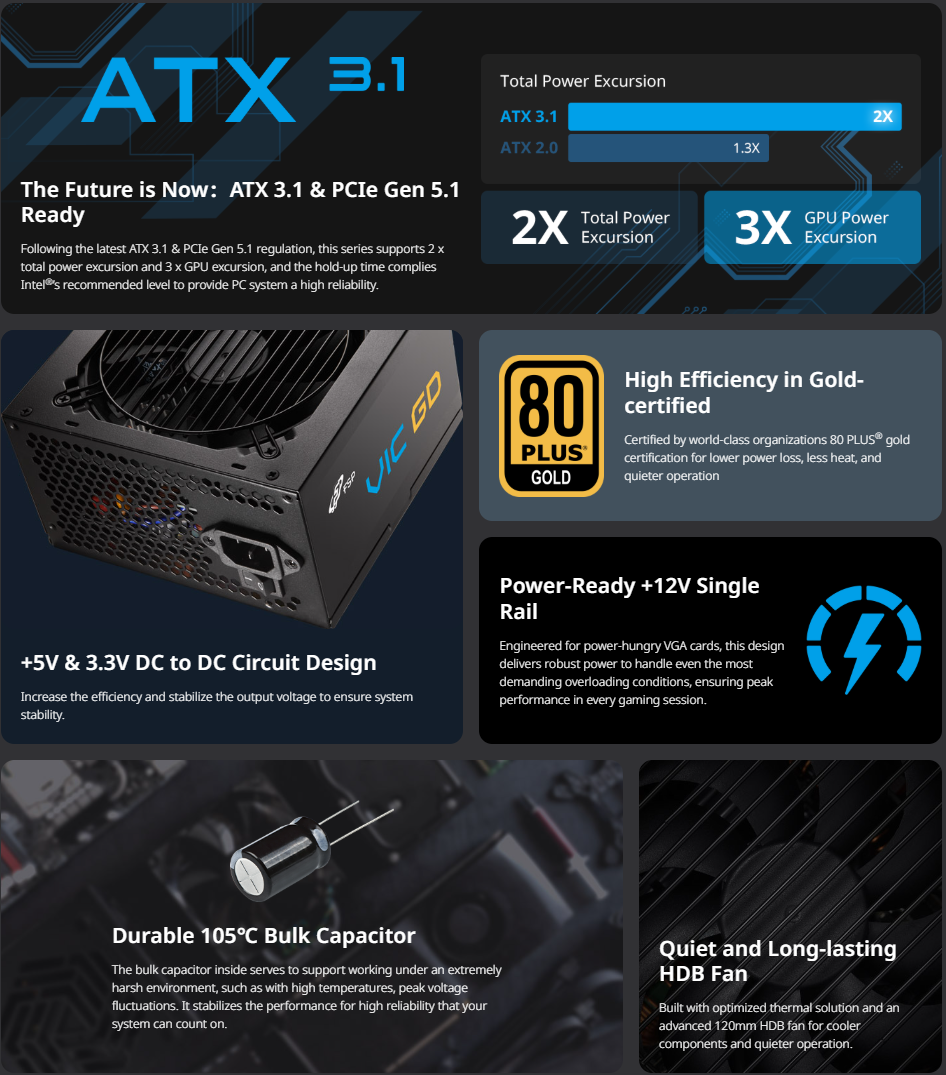

Form Factor ATX12V V3.1

80 PLUS Certification Gold

Input Voltage 100-240V

Input Current 10-5A

Input Frequency 50-60Hz

PFC Active ≧ 0.9

Efficiency(at typical load) ≥90% at typical load

Fan Type HDB Bearing, 120mm

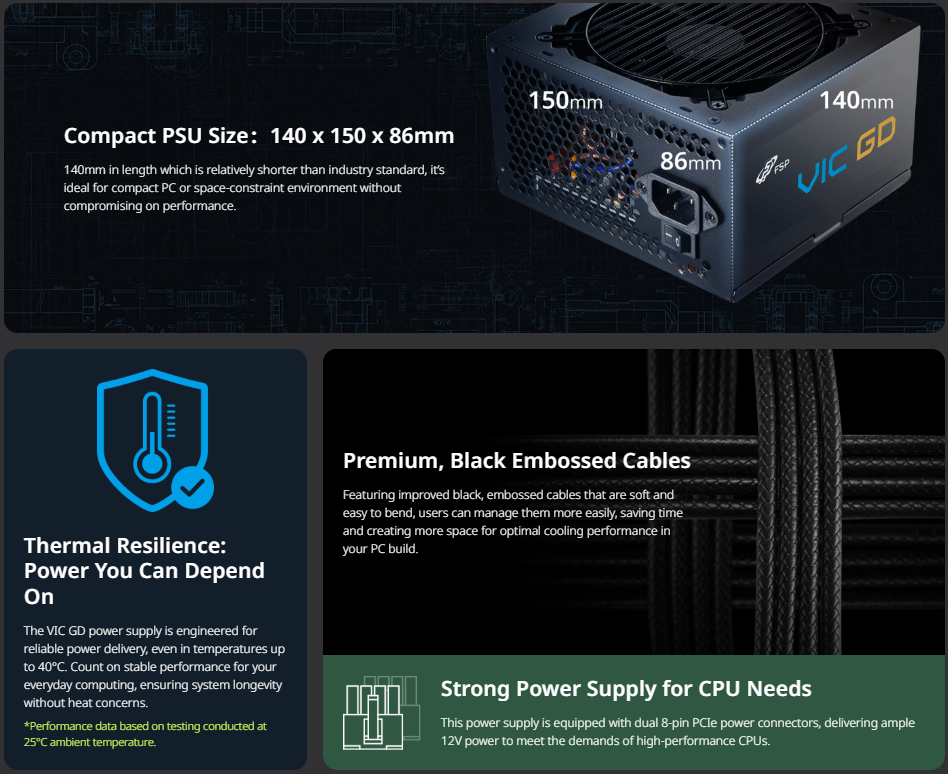

Dimensions(L x W x H) 140 × 150 × 86 mm

Operation Temp. 25°C

Protection OCP, OVP, SCP, OPP, UVP, OTP,SIP, NLO

Warranty 3 Years

Model VIC-650GD

MB 20+4 PIN/1 cable/1 connector

Cable Information：500mm

CPU 4+4PIN/1 cable/2 connectors

Cable Information : 650mm+150mm

PCIe 6+2 PIN / 1 cable /2 connectors

Cable Information : 500mm+150mm

SATA /1 cable/ 4 connectors

Cable Information : 450mm+150mm+150mm+150mm

MOLEX / SATA / 1 cable / 3xMOLE X 1xSATA

Cable Information : 450mm+150mm+150mm+150mm

Model VIC-750GD

MB 20+4 PIN 1 cable 1 connector

Cable Information： 500mm

CPU 4+4PIN 1 cable 2 connectors

Cable Information : 650mm+150mm

PCIe 6+2 PIN 1 cable 2 connectors

Cable Information : 500mm+150mm

PCIe 6+2 PIN 1 cable 1 connector

Cable Information : 600mm

PCIe 12V-2x6 1 cable 1 connector

Cable Information : 600mm

SATA 1 cable 4 connectors

Cable Information : 450mm+150mm+150mm+150mm

MOLEX / SATA 1 cable 3xMOLEX 1xSATA

Cable Information : 450mm+150mm+150mm+150mm

Model VIC-850GD

MB 20+4 PIN / 1 cable / 1 connector

Cable Information：500mm

CPU 4+4 PIN 1 cable 2 connectors

Cable Information : 650mm+150mm

PCIe 6+2 PIN 1 cable 2 connectors

Cable Information : 500mm+150mm

PCIe 6+2 PIN 1 cable 1 connector

Cable Information : 600mm

PCIe 12V-2x6 1 cable 1 connector

Cable Information : 600mm

SATA 1 cable 4 connectors

Cable Information : 450mm+150mm+150mm+150mm

MOLEX / SATA 1 cable 3xMOLEX 1xSATA

Cable Information : 450mm+150mm+150mm+150mm
