Model

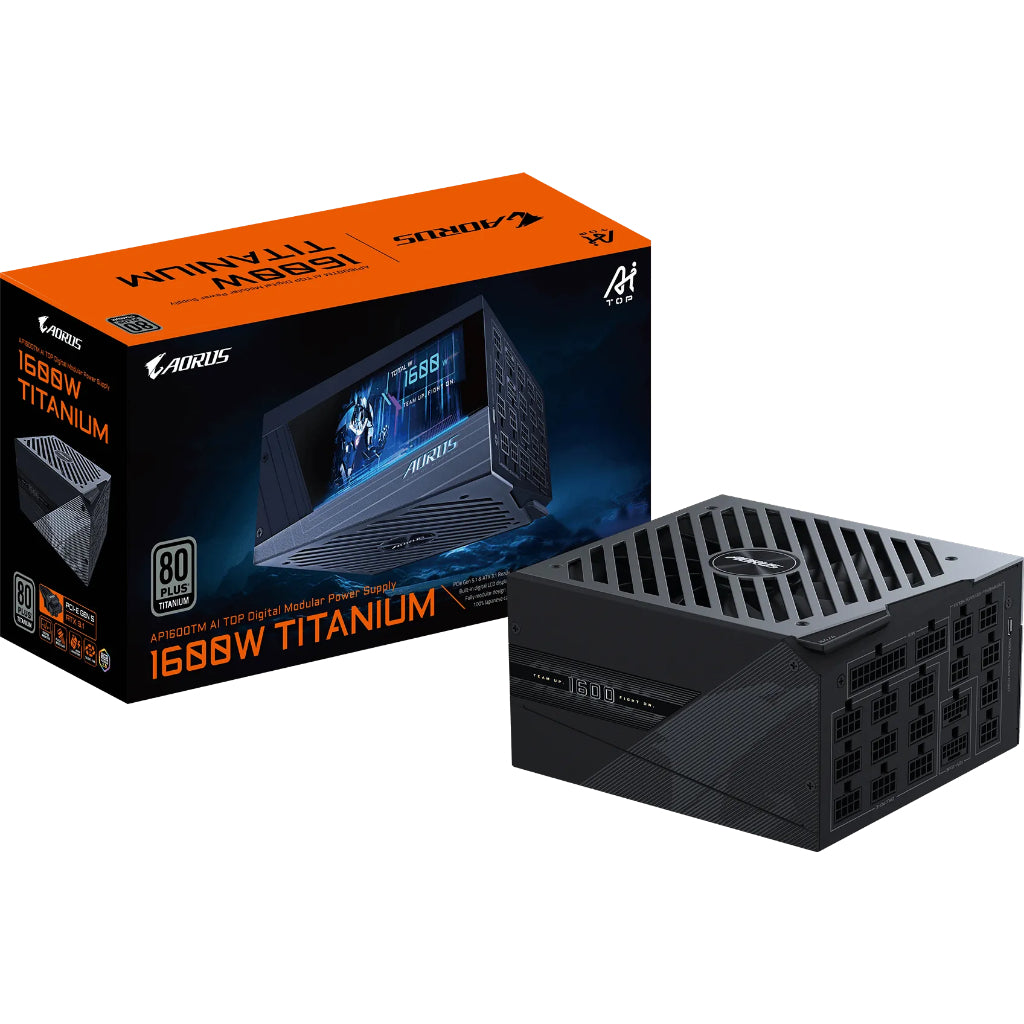

GP-AP1600TM PG5 AI TOP
Type
Intel Form Factor ATX 12V v3.1
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
15-7.5A
Input Frequency
60-50 Hz
Output Capacity
1600W
Dimensions
150 x 160 x 86mm
Fan Type
140mm Double ball bearing Fan
80 PLUS
Titanium
Efficiency
94% at typical load
MTBF
>100,000 hours
Protections
OVP / OPP / SCP / UVP / OCP / OTP / NLO / SIP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Sleeved, All black
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm*2
PCI-e 16 Pin x 2: 700mm*2
PCI-e 16 Pin to PCI-e 8 Pin x 2: 700mm*2
PCI-e 6+2 Pin x 10 : 650mm+150mm*5
SATA x 16 : 600mm+150mm+150mm+150mm*4
4 Pin Peripheral x 6+4 Pin Flobby x 2 : 500mm+150mm+150mm+150mm*1
