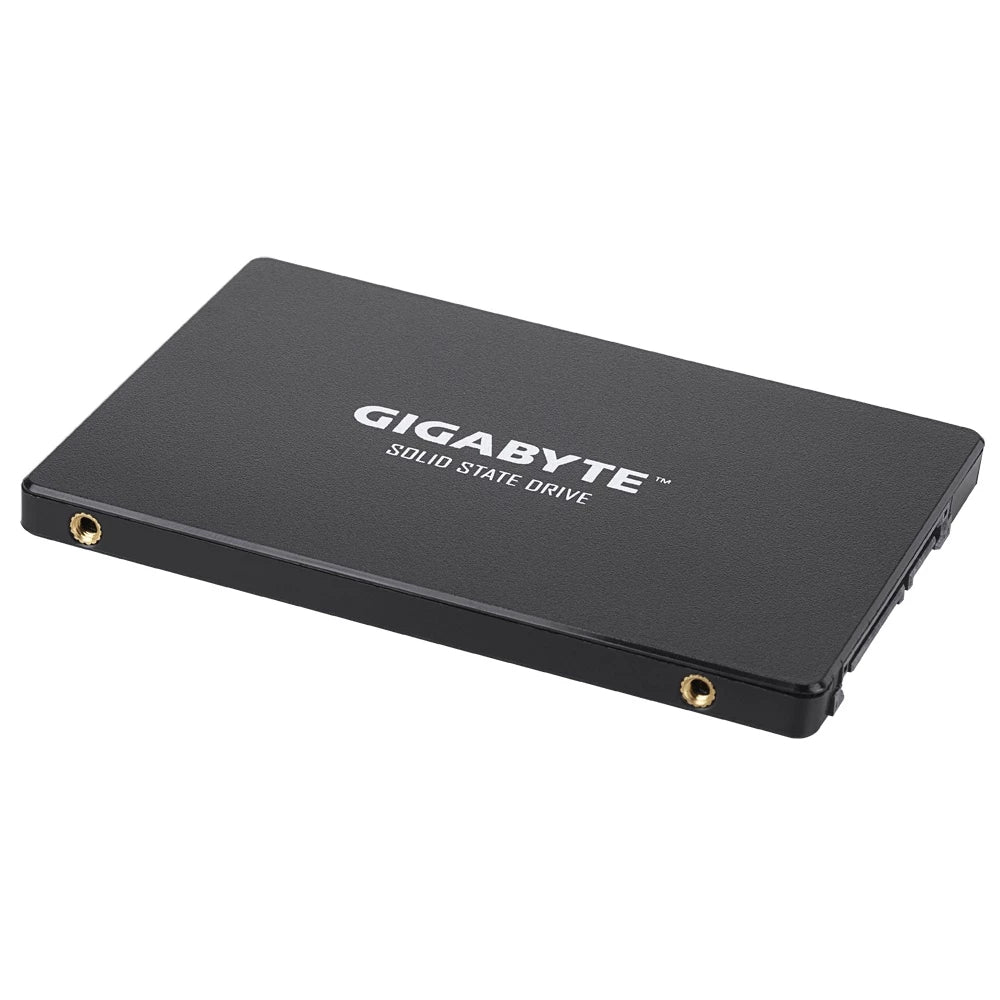

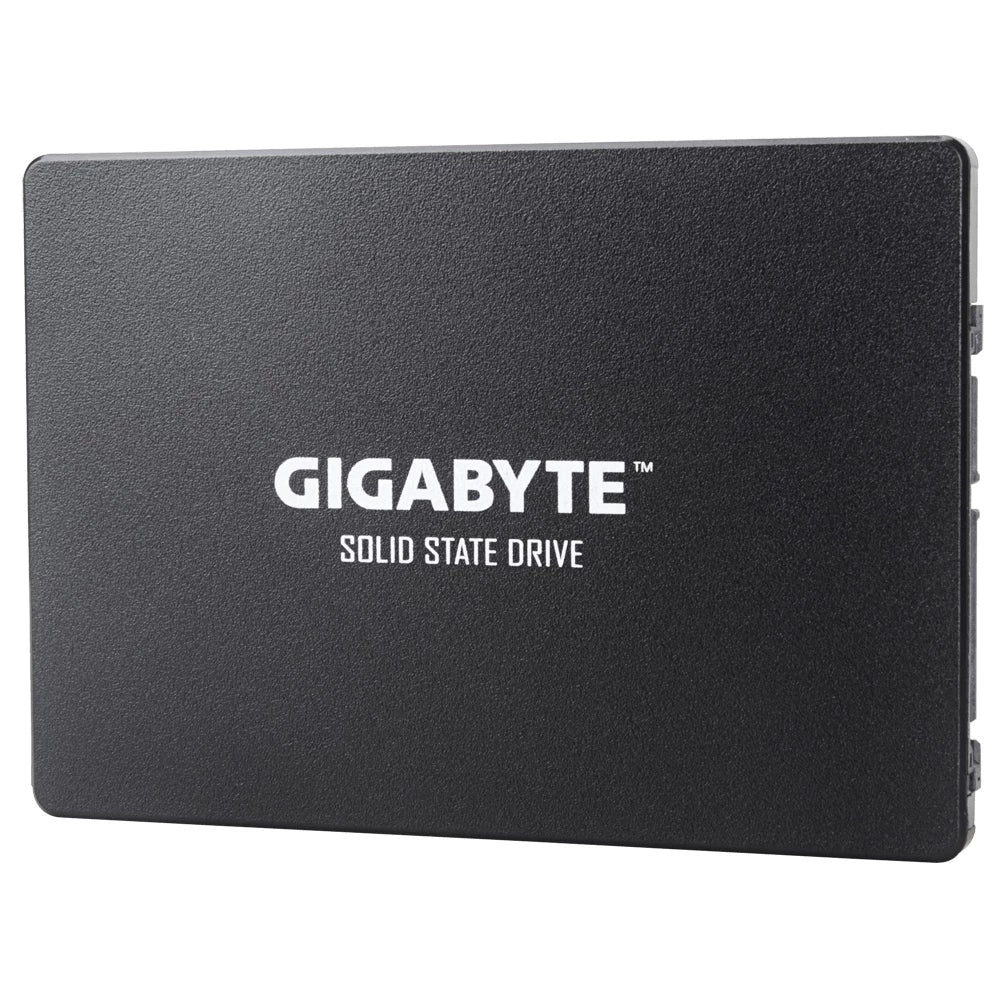

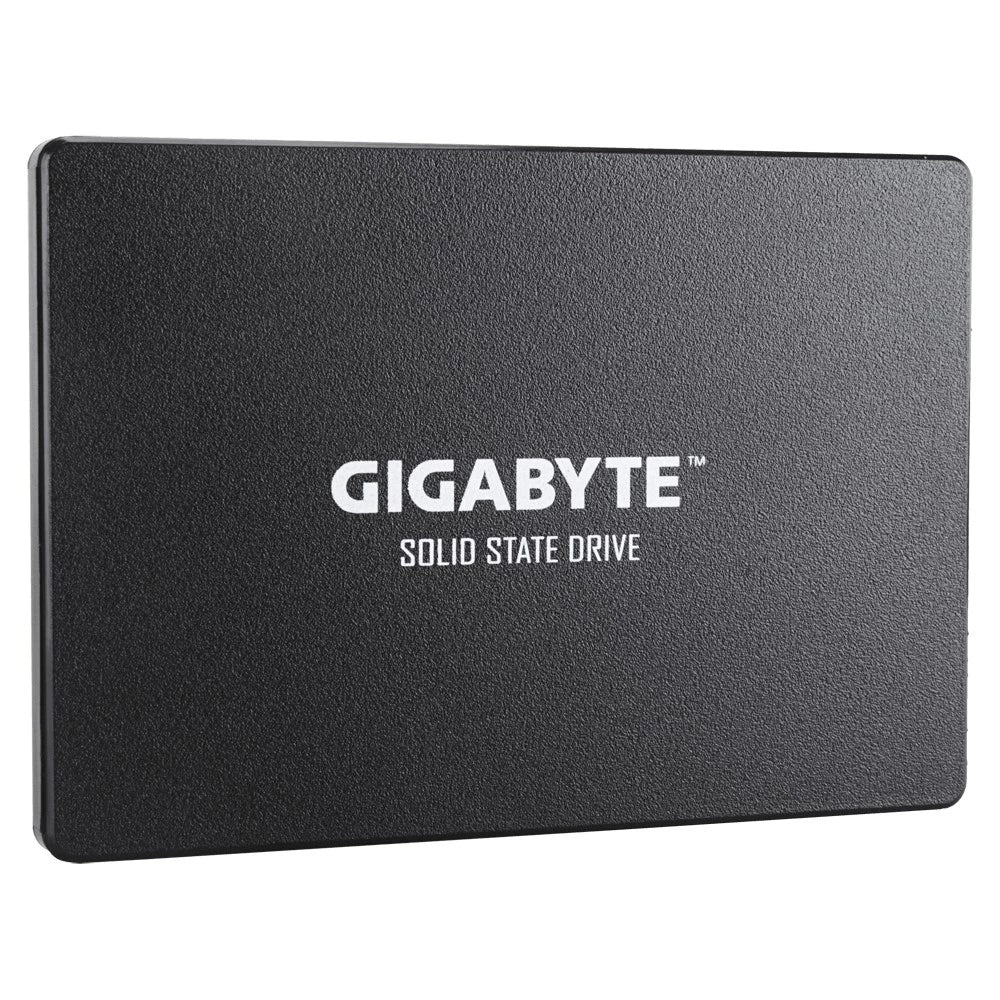

Form Factor: 2.5-inch internal SSD
Interface: SATA 6.0Gb/s
Total Capacity: 120GB*
Warranty: Limited 3-years
Sequential Read speed : up to 350 MB/s**
Sequential Write speed : up to 280 MB/s**
TRIM & S.M.A.R.T supported
* Note: 1GB = 1 billion bytes. Actual useable capacity may vary.
** Speeds based on internal testing. Actual performance may vary.
Interface SATA 6.0Gb/s
Form Factor 2.5-inch internal SSD
Total Capacity 120GB*
Warranty Limited 3-year or 75TBW***
NAND NAND Flash
External DDR Cache N/A
Sequential Read MB/s Up to 350 MB/s
Sequential Write MB/s Up to 280 MB/s
Random Read IOPS Up to 50k
Random Write IOPS Up to 60k
Dimension (W x H x L) 69.85 x 7 x 100 mm
Mean time between failure (MTBF) 2M hours
Power Consumption (Active) Average: R : 2240mW; W : 2610mW
Power Consumption (Idle) 170mW
Temperature (Operating) 0°C to 70°C
Temperature (Storage) -40°C to 85°C
Note * 1GB = 1 billion bytes. Actual useable capacity may vary.
** 3 years or 75 TBW, whichever comes first.
*** TBW (Terabyte Written):Terabytes Written" is the total amount of data that can be written into an SSD before it is likely to fail.
Form Factor: 2.5-inch internal SSD
Interface: SATA 6.0Gb/s
Total Capacity: 240GB*
Warranty: Limited 3-years
Sequential Read speed : up to 500 MB/s**
Sequential Write speed : up to 420 MB/s**
TRIM & S.M.A.R.T supported
* Note: 1GB = 1 billion bytes. Actual useable capacity may vary.
** Speeds based on internal testing. Actual performance may vary.
Interface SATA 6.0Gb/s
Form Factor 2.5-inch internal SSD
Total Capacity 240GB
Warranty Limited 3-year or 100TBW
NAND NAND Flash
External DDR Cache N/A
Sequential Read speed Up to 500 MB/s
Sequential Write speed Up to 420 MB/s
Random Read IOPS up to 50k
Random Write IOPS up to 75k
Dimension (W x H x L) 69.85 x 7 x 100 mm
Mean time between failure (MTBF) 2M hours
Power Consumption (Active) Average: R : 2240mW; W : 2610mW
Power Consumption (Idle) 170mW
Temperature (Operating) 0°C to 70°C
Temperature (Storage) -40°C to 85°C
Note * 1GB = 1 billion bytes. Actual useable capacity may vary.
** 3 years or 100 TBW, whichever comes first.
*** TBW (Terabyte Written):Terabytes Written" is the total amount of data that can be written into an SSD before it is likely to fail.
**** Speeds based on internal testing. Actual performance may vary.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
