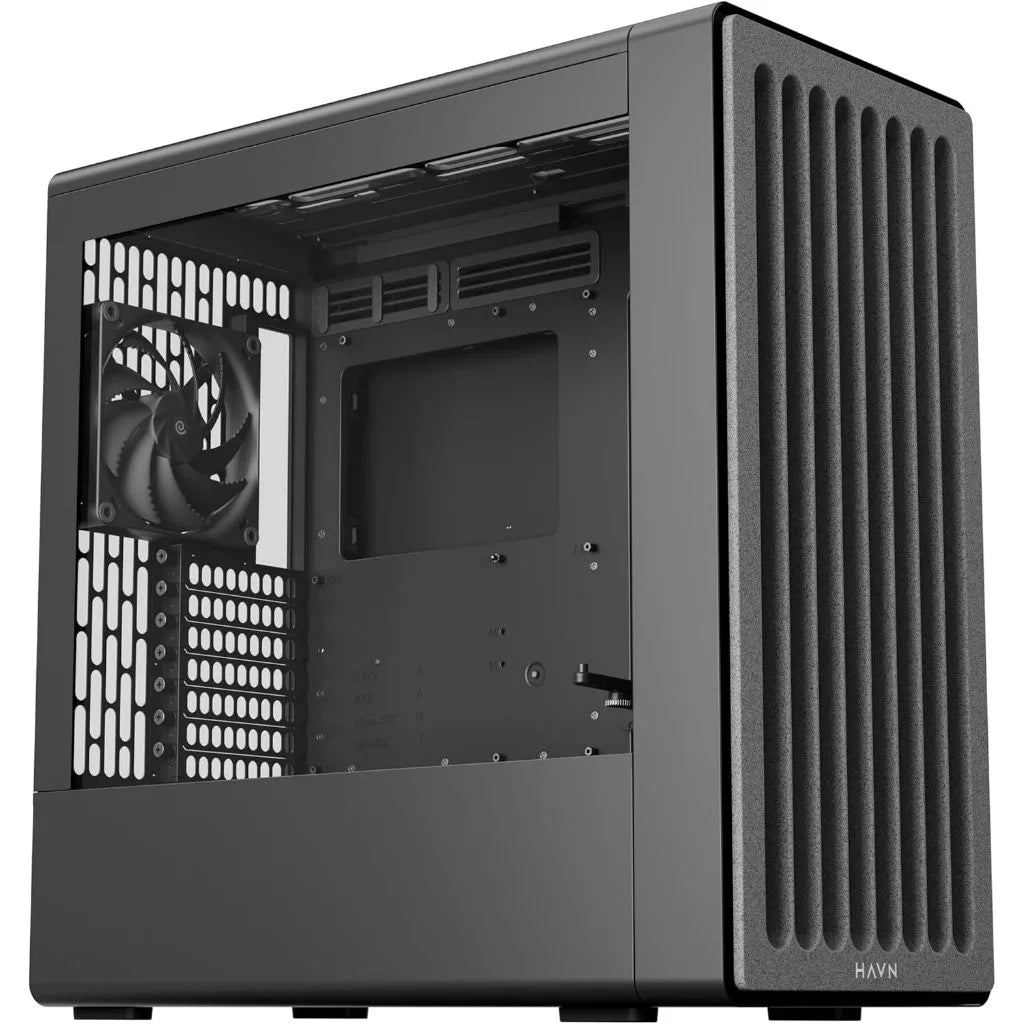

HAVN BF 360 Flow Mid Tower High Airflow PC Case / BLACK / WHITE

PENTING . IMPORTANT . 注意

KEPADA PELANGGAN YANG DIHORMATI,

SEBELUM MEMBUKA BUNGKUSAN SILA BUAT RAKAMAN VIDEO

BAGI TUJUAN TUNTUTAN KEROSAKAN DAN KEHILANGAN

SEBARANG TUNTUTAN TANPA RAKAMAN TIDAK AKAN DILAYAN.

SEGALA KERJASAMA AMATLAH DIHARGAI

DEAR VALUED CUSTOMER,

BEFORE UNBOXING THE PACKAGE PLEASE MAKE A

VIDEO RECORDING FOR FAULTY AND DAMAGE CLAIM PURPOSES

尊贵的顾客，请在打开包裹之前录制一段视频，

以确保产品损坏的情况有证据。未附带录制视频的索赔将无法受理。

谢谢您的合作

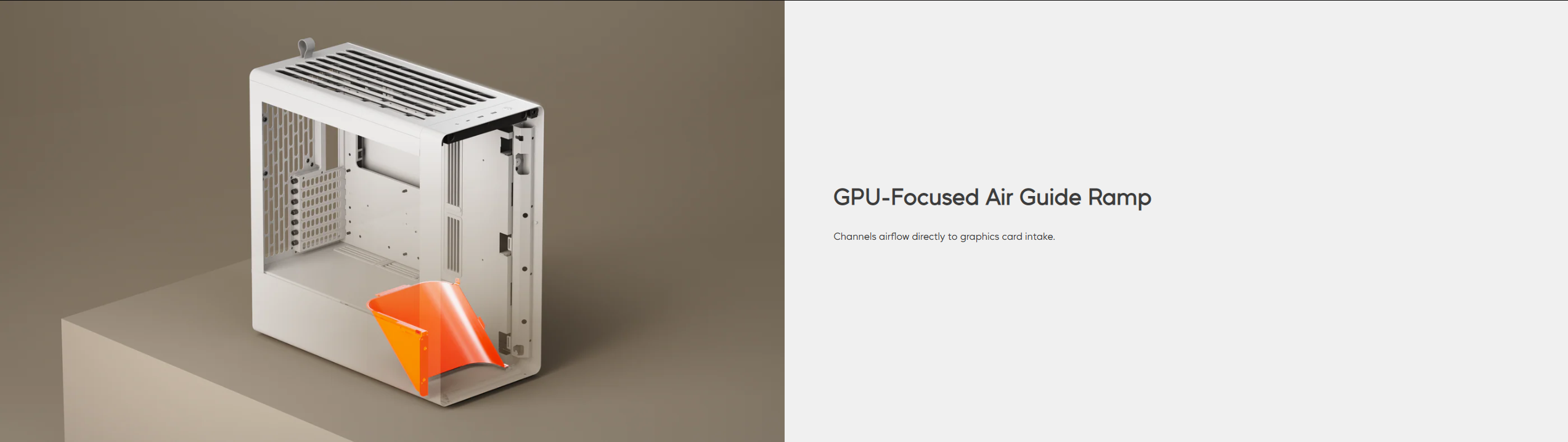

High-airflow ATX mid-tower with GPU-focused air guide ramp and dual 180mm fans.

Ultra-quiet operation with premium FDB bearings and vibration isolation.

Minimalistic stone-textured front panel with SimpliCable routing system for a cleaner build.

Specifications

Form Factor

Mid Tower

Material

SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets

PC Case Dimensions (L x W x H)

515 x 254 x 522.6 mm

Net Weight

14.79 kg

Warranty

1 year

Notice

Warranty support is only available for orders shipped within the United States. Orders via forwarding services are not supported.

Please review our full warranty terms for more information.

Front I/O

USB 3.2 Gen 2 Type-C x1

USB 3.2 Gen 1 Type-A x2

Audio Jack x1

Power & Reset Button x1

Motherboard Support

E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX

Expansion Slots

7

Fan Support

Maximum Amount: 6

Top: 2 x 180 mm / 2 x 140 mm / 3 x 120 mm

Front: 2 x 180 mm

Left: N/A

Right: N/A

Bottom: N/A

Rear: 1 x 140 / 1 x 120 mm

Fan PWM Repeater

Fan Ports: 1 x PWM repeaters, 6 ports total

Location: 1 x Cable Management Tray

Fan Connectors: 6 ports per repeater x 4-pin PWM

(Connect your primary fan to the white port to control PWM signal.

All other ports mirror the white port's signal.)

Fan Rated Voltage: 12V

Fan Safety Current: Up to 2.6A across 6 ports

Power Connector: 1 x SATA Power

Power Safety Current: 1 x SATA connector power input, 12V → 2.6A (max)

CPU Tower Cooler Clearance

Height: Up to 195 mm.

Liquid Cooling Support

Top: 240 / 280 / 360 mm

Front: N/A

Left: N/A

Right: N/A

Bottom: N/A

Graphics Card Clearance

Length: Up to 410 mm

Width: Up to 195 mm.

GPU Support

1 - 4.5 Slots

RAM Clearance

If the radiator & fans thickness is greater than 80 mm: 280 mm - 40 mm / 360 mm - 60 mm

Power Supply Support

ATX

Length: Up to 200mm (Clearance - 260mm)

Storage

Right Mount: 2 Storage Bays: 2 x 3.5'' / 8 x 2.5''

Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5''

Storage Bay Included: 2x (2 x 3.5'' / 4 x 2.5'')

Dust Filter

Front: 1 (Built-in)

Top: 1 (Built-in)

Rear Bottom: 1 (Removable)

Pre-installed Fans

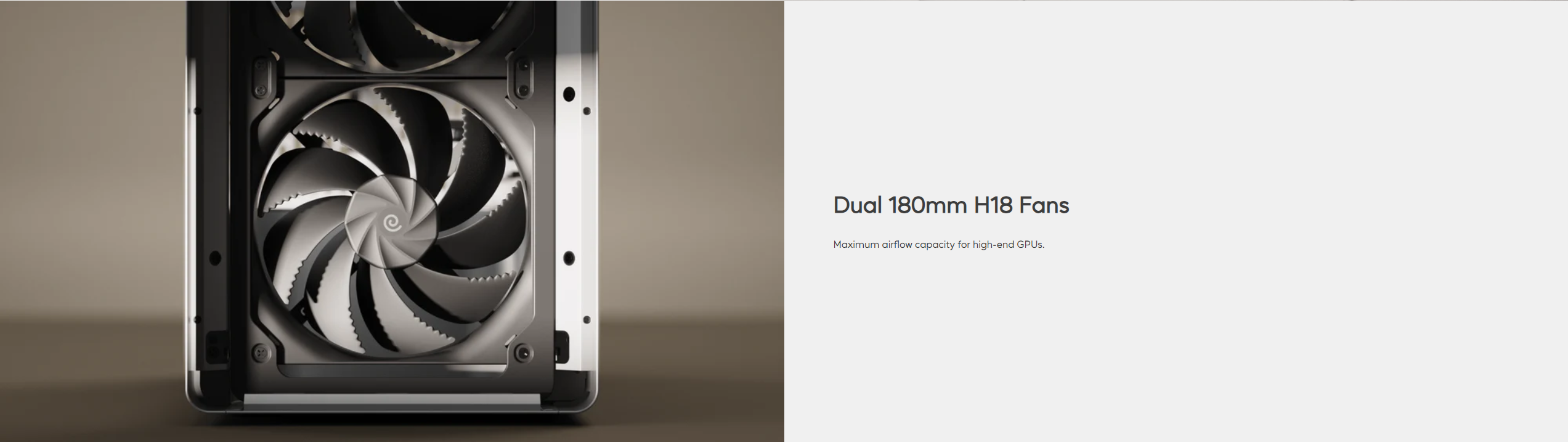

2x H18 Fan (Front) - Case Version

1x H14 Fan (Rear) - Case Version

(The Loopin System is available on the Retail Version only. Pre-installed case fans use single-female fan connectors.)
