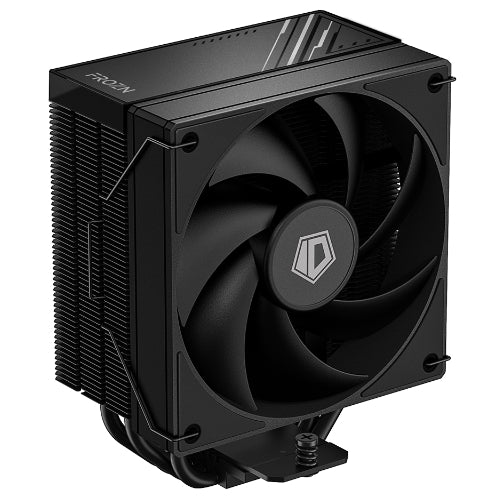

ID-COOLING FROZN BLACK / BLACK ARGB / WHITE ARGB Series A410 / A610 / A620 / A720 CPU Air Cooler

PENTING . IMPORTANT . 注意

KEPADA PELANGGAN YANG DIHORMATI,

SEBELUM MEMBUKA BUNGKUSAN SILA BUAT RAKAMAN VIDEO

BAGI TUJUAN TUNTUTAN KEROSAKAN DAN KEHILANGAN

SEBARANG TUNTUTAN TANPA RAKAMAN TIDAK AKAN DILAYAN.

SEGALA KERJASAMA AMATLAH DIHARGAI

DEAR VALUED CUSTOMER,

BEFORE UNBOXING THE PACKAGE PLEASE MAKE A

VIDEO RECORDING FOR FAULTY AND DAMAGE CLAIM PURPOSES

ANY CLAIM WITHOUT RECORDING WILL NOT BE ENTERTAINED.

WE APPERICIATE YOUR CORPORATION

尊贵的顾客，请在打开包裹之前录制一段视频，

以确保产品损坏的情况有证据。未附带录制视频的索赔将无法受理。

谢谢您的合作

Compatibility

Intel LGA20XX/1700/1200/1151/1150/1155/1156

AMD AM5/AM4

A720

TDP 300W

Overall Dimension 140×153×163mm (L×W×H)

Heatsink Material 7×Ф6mm Heatpipe + Copper Base + Aluminum Fin

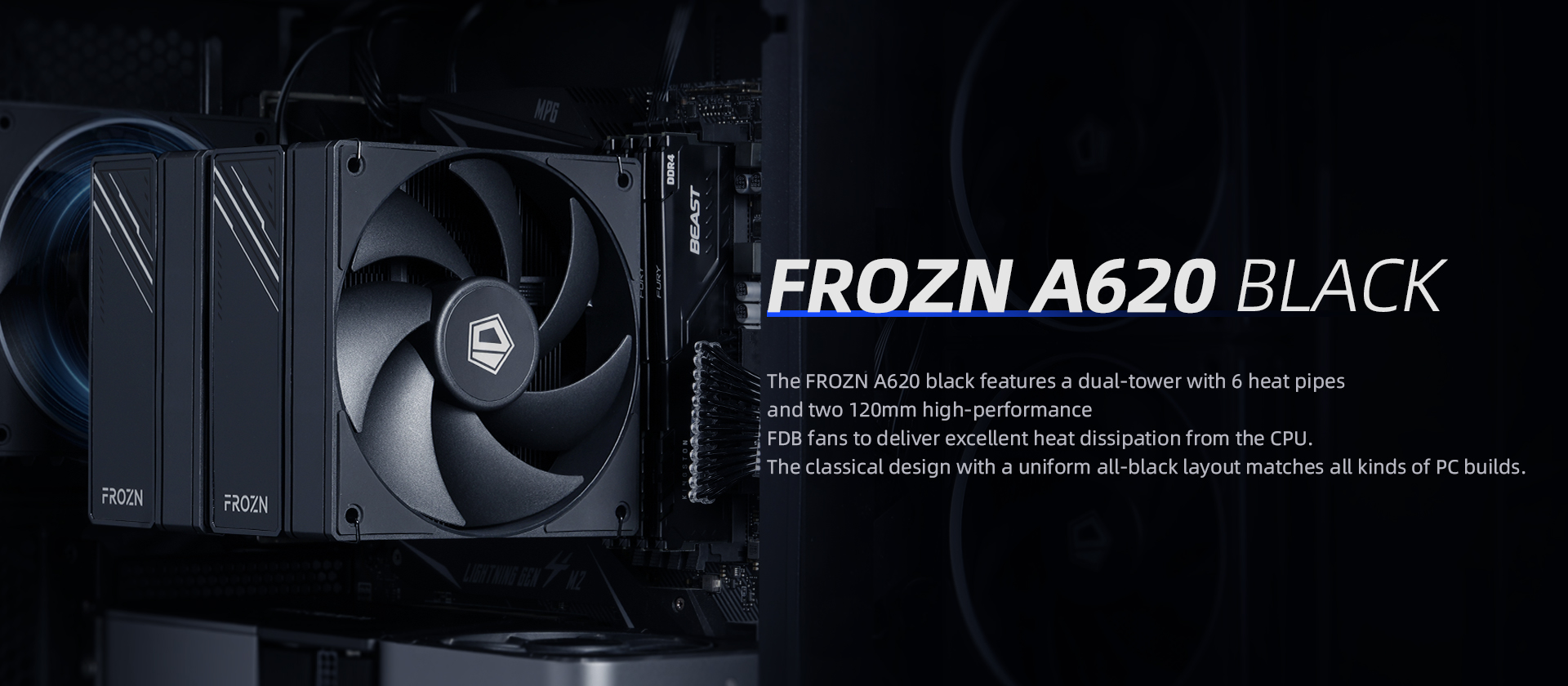

A620

TDP 270W

Overall Dimension 120×140×154mm (L×W×H)

Heatsink Material 6×Ф6mm Heatpipe + Copper Base + Aluminum Fin

A610

TDP 250W

Overall Dimension   120×92×155mm (L×W×H)

Heatsink Material  6×Ф6mm Heatpipe + Copper Base + Aluminum Fin

A410

TDP  220W

Overall Dimension   120×73×152mm (L×W×H)

Heatsink Material  4×Ф6mm Heatpipe (Direct Touch) + Aluminum Fin

Fan Dimension120×120×25mm

Fan Speed500±200 ~ 2000±10% RPM

Max. Air Flow78.25CFM

Max. Static Pressure2.68mmH2O

Noise29.85dB(A) Max.

Rated Voltage12VDC (4pin PWM)

Operating Voltage10.8 ～ 13.2VDC

Started Voltage7VDC

Rated Current0.25A

Power Input3W

Bearing TypeFDB

Connector 4Pin PWM

Compatibility

Intel LGA1851/1700/1200/1151/1150/1155/1156

AMD AM5/AM4

TDP

260W

Overall Dimension

120×142×157mm (L×W×H)

Heatsink Material

6×Ф6mm Heatpipe + Copper Base + Aluminum Fin

Weight

1190g (heatsink+fan)

Fan Dimension

120×120×25mm (2pcs)

Fan Speed

300±200 ~ 2000±10% RPM

Max. Air Flow

58CFM

Max. Static Pressure

1.94mmH2O

Noise

27.2dB(A) Max.

Rated Voltage

12VDC

Operating Voltage

10.8 ～ 13.2VDC

Started Voltage

7VDC

Rated Current

0.1A

Power Input

1.2W

Bearing Type

Hydraulic Bearing

Connector

4Pin PWM
