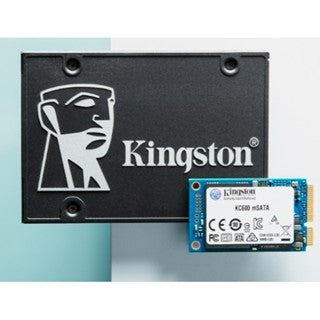

KC600 2.5" and mSATA SSD
Kingston’s KC600 is a full-capacity SSD designed to provide remarkable performance and optimised to provide functional system responsiveness with incredible boot, loading and transfer times. It comes in both 2.5" and mSATA form factors using SATA Rev 3.0 interface with backwards compatibility. The KC600 utilises the latest 3D TLC NAND technology while supporting a full security suite that includes AES 256-bit hardware encryption, TCG Opal 2.0 and eDrive. It features read/write speeds of up to 550/520MB/s1 to efficiently store your data up to 2TB2. It’s available in a bundle kit that provides everything you need for a smooth and easy desktop and notebook installation and upgrade.
Specifications

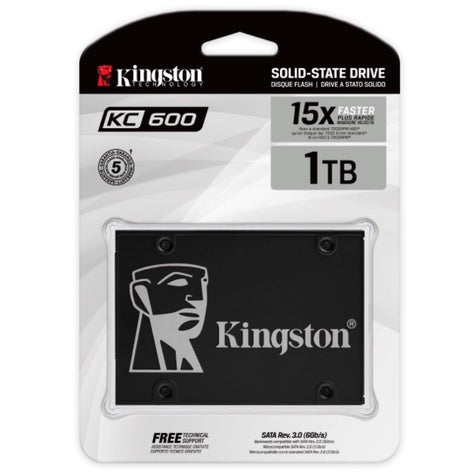

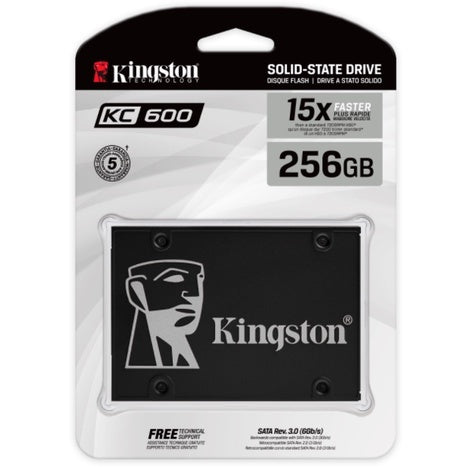

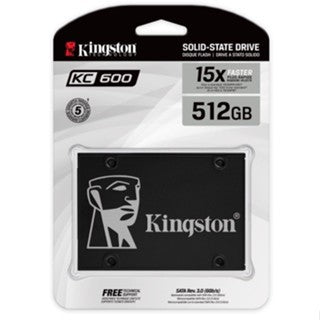

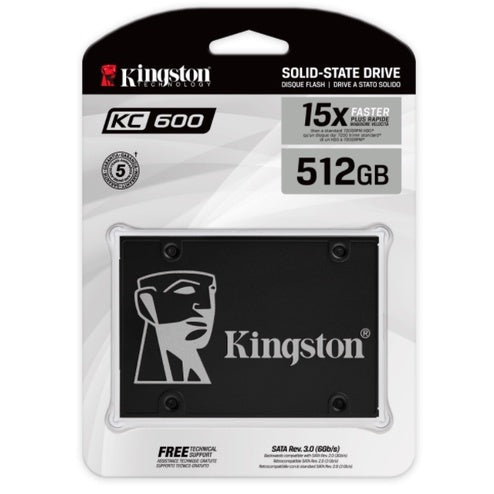

Form Factor 2.5"
Interface SATA Rev. 3.0 (6Gb/s) – with backwards capability to SATA Rev 2.0 (3Gb/s)
Capacities2 256GB, 512GB, 1024GB, 2048GB
Controller SM2259
NAND 3D TLC
Encrypted XTS-AES 256-bit encryption
Sequential Read/Write1 256GB — up to 550/500MB/s
512GB–2048GB — up to 550/520MB/s
Maximum 4K Read/Write1 up to 90,000/80,000 IOPS
Power Consumption 0.06W idle / 0.2W avg / 1.3W (MAX) read / 3.2W (MAX) write
Dimensions 100.1mm x 69.85mm x 7mm
Weight 40g
Operating temperature 0°C~70°C
Storage temperature -40°C~85°C
Vibration operating 2.17G Peak (7-800Hz)
Vibration non-operating 20G Peak (10-2000Hz)
Life expectancy 1 millions hours MTBF
Warranty/support3 Limited 5-year warranty with free technical support
Total Bytes Written (TBW)4 256GB — 150TB
512GB — 300TB
1024GB — 600TB
2048GB — 1200TB

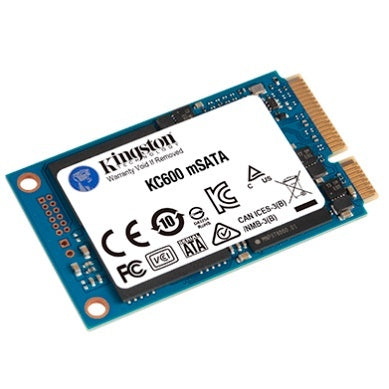

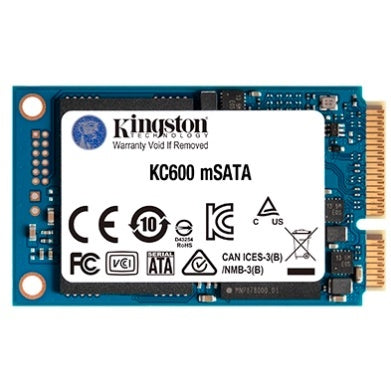

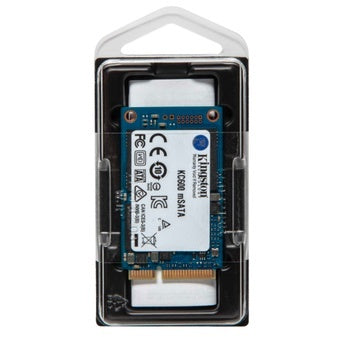

Form Factor mSATA
Interface SATA Rev. 3.0 (6Gb/s) – with backwards capability to SATA Rev 2.0 (3Gb/s)
Capacities2 256GB, 512GB, 1024GB
Controller SM2259
NAND 3D TLC
Encrypted XTS-AES 256-bit encryption
Sequential Read/Write1 256GB — up to 550/500MB/s
512GB – 1024GB — up to 550/520MB/s
Maximum 4K Read/Write1 up to 90,000/80,000 IOPS
Power Consumption 0.08W Idle / 0.1W Avg / 1.2W (MAX) Read / 2.4W (MAX) Write
Dimensions 50.8mm x2 9.85mm x 4.85mm
Weight 7g
Operating temperature 0°C~70°C
Storage temperature -40°C~85°C
Vibration operating 2.17G Peak (7-800Hz)
Vibration non-operating 20G Peak (10-2000Hz)
Life expectancy 1 millions hours MTBF
Warranty/support3 Limited 5-year warranty with free technical support
Total Bytes Written (TBW)4 256GB — 150TB
512GB — 300TB
1024GB — 600TB
