Timeless Elegance, Endless Performance

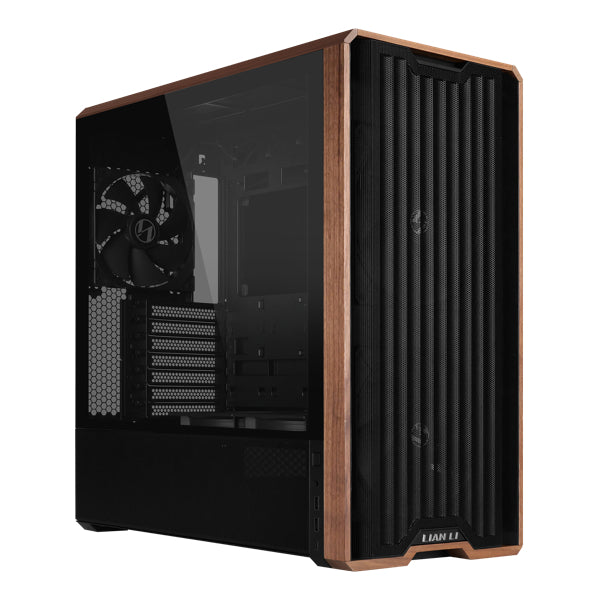

The LANCOOL 217 is a mid-tower case that combines innovative cooling design with real wood accents. It comes pre-installed with five fans, delivering optimized airflow right out of the box. A flexible PSU mounting design makes cable management easier. Available in Black with dark wood accents or White with light wood, it blends natural beauty with high-performance capability.
SPECIFICATIONS
MODEL NAME
LAN217X
LAN217W
COLOR
Black
White
DIMENSION
(D)482mm x (W)238mm x (H)503mm
MATERIAL
Steel / 4.0mm Tempered Glass / Wood
MOTHERBOARD SUPPORT
SSI-EEB(Width Max 330mm) /
E-ATX（Width Max 280mm）
ATX / Micro-ATX/Mini-ITX
BACK CONNECT
MOTHERBOARD SUPPORT
ATX / Micro-ATX
PSU SUPPORT LENGTH
Standard Mode：ATX（Under 220mm）
Rotated Mode：ATX（Under 180mm）
FAN SUPPORT
Front: 170mm x 2 (Included) / 140mm x 3 / 120mm x 3
Top: 3 x 120mm / 2 x 140mm
Above PSU Shroud: 3 x 120mm (2 Included)
Under the PSU shroud: 2 x 120mm
Rear: 1x 140mm(Included) / 1x 120mm
RADIATOR SUPPORT
Top: 360 / 280 / 240mm
DRIVE SUPPORT
Back Connect Motherboard: 2 x 2.5″ SSD /
1 x 2.5″ SSD(behind MB)
2 x Drive Cage: 1 x 3.5″HDD+
1 x 2.5″ SSD+(1 x 3.5″ HDD or 1 x 2.5″ SSD)
PSU Shroud: 1 x 2.5″ SSD
GPU LENGTH CLEARANCE
380mm (Max.)
CPU HEIGHT CLEARANCE
180mm (Max.)
EXPANSION SLOT
7
I/O PORTS
2 x Power Button
2 x USB 3.0
1 x USB Type-C
1 x Audio
DUST FILTER
1 x Bottom, 1 x Front
Hub
ARGB / FAN Hub：6 x PWM FAN port
4 x 5V ARGB port
WARRANTY
1 year(Fan: 3 years)
