PRODUCT NAME

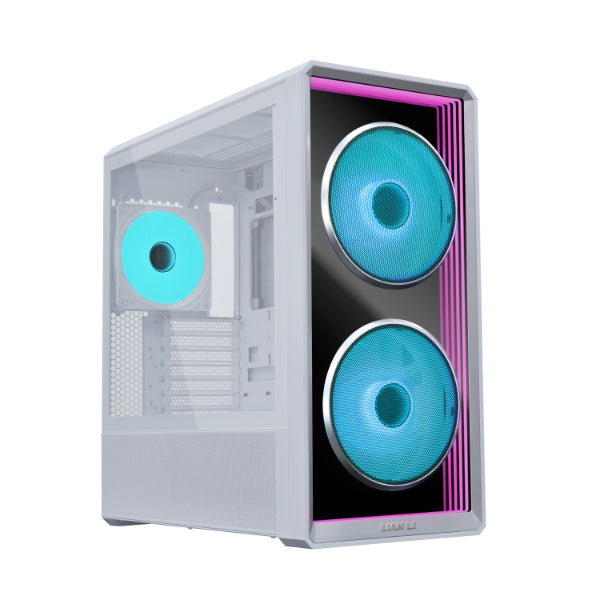

LANCOOL 217 INF
Model Name
LAN217INFX
LAN217INFW
TYPE
Mid-Tower Case
COLOR
BLACK
WHITE
DIMENSIONS
482 mm (L) × 238 mm (W) × 503 mm (H)
MATERIALS
Steel / 4.0 mm tempered glass
MOTHERBOARD SUPPORTS
SI-EEB (max width 330 mm) / E-ATX (max width 280 mm)
ATX / Micro-ATX / Mini-ITX
BACK CONNECT MOTHERBOARD SUPPORT
ATX / M-ATX
PSU LENGTH LIMIT
Standard orientation: ATX up to 220 mm
Rotated orientation: ATX up to 180 mm
FAN SUPPORT
Front: 2 × 170 mm (pre-installed)
Top: 3 × 120 mm or 2 × 140 mm
Bottom (above PSU shroud): 3 × 120 mm
Bottom (under PSU shroud): 2 × 120 mm
Rear: 1 × 140 mm (pre-installed) / 1 × 120 mm
RADIATOR SUPPORT
Top: 360 / 280 / 240 mm
DRIVE BAYS
Behind motherboard tray: up to 2 × 2.5″ SSD
(or 1 × 2.5″ SSD when using a back-connector mATX board)
Drive cages: 2; each supports 1 × 3.5″ HDD + 1 × 2.5″ SSD (or 1 × 3.5″ HDD / 2 × 2.5″ SSD)
PSU-shroud cover: 1 × 2.5″ SSD
GPU CLEARANCE
380 mm (length)
CPU COOLER HEIGHT
180 mm (max)
EXPANSION SLOTS
7
FRONT I/O
1 x Power button
2 × USB 3.0
1 × USB 3.2 Type-C
1 x Audio / Microphone Combo Jack
1 × M1 Front Panel Lighting Control Button
1 × M2 Fan Lighting Control Button
DUST FILTERS
Bottom ×1 / Front ×1 (x2 RU version only)
INTEGRATED HUB
ARGB / FAN HUB
(Sync Motherboard Fan Header x3 / ARGB Header x1)
WARRANTY
1 year (fans: 3 years)
