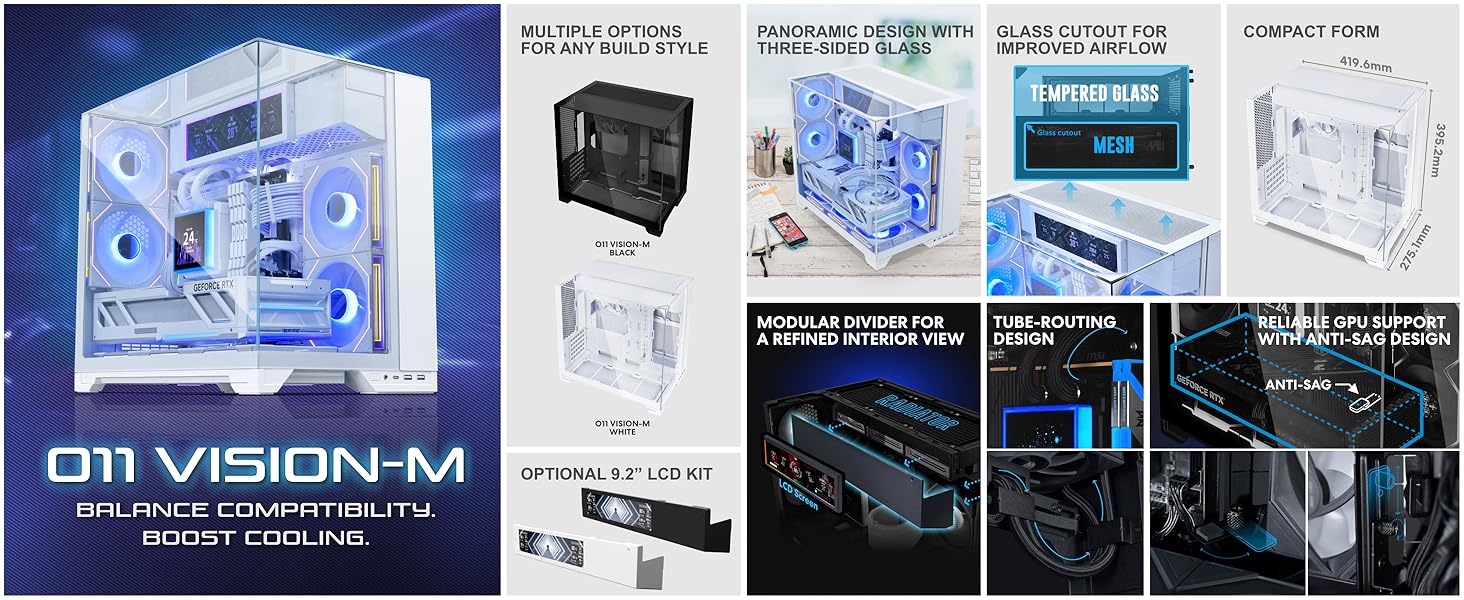

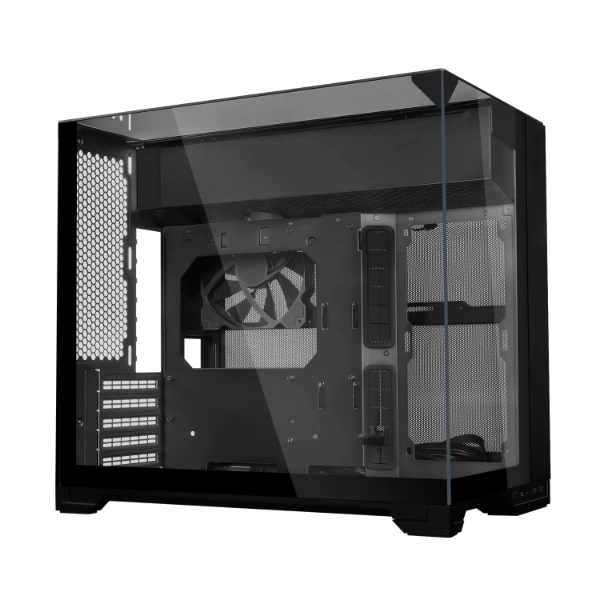

LIAN LI O11 Vision-M Compact Dual Chamber mATX T.G Chassis with Columnless Design

PENTING . IMPORTANT . 注意

KEPADA PELANGGAN YANG DIHORMATI,

SEBELUM MEMBUKA BUNGKUSAN SILA BUAT RAKAMAN VIDEO

BAGI TUJUAN TUNTUTAN KEROSAKAN DAN KEHILANGAN

SEBARANG TUNTUTAN TANPA RAKAMAN TIDAK AKAN DILAYAN.

SEGALA KERJASAMA AMATLAH DIHARGAI

DEAR VALUED CUSTOMER,

BEFORE UNBOXING THE PACKAGE PLEASE MAKE A

VIDEO RECORDING FOR FAULTY AND DAMAGE CLAIM PURPOSES

尊贵的顾客，请在打开包裹之前录制一段视频，

以确保产品损坏的情况有证据。未附带录制视频的索赔将无法受理。

谢谢您的合作

SPECIFICATIONS

PRODUCT NAME

O11 VISION-M

MODEL NO.

O11VMX

O11VMW

COLOR

BLACK

WHITE

DIGITAL SCREEN

No

DIMENSIONS

419.6mm x 275.1mm x 395.2mm (DxWxH)

MATERIALS

Steel /4.0mm Tempered Glass /3.0mm Tempered Glass /Aluminum

MOTHERBOARD SUPPORT

M-ATX, Mini-ITX,

Back-Connect: No

EXPANSION SLOT

5

STORAGE

3.5” HDD x 1 + 2.5” SSD x 2 or 2.5” SSD x 3

GPU LENGTH CLEARANCE

410 mm

CPU COOLER HEIGHT CLEARANCE

162 mm

PSU SUPPORT

ATX (Under 182mm)

RADIATOR SUPPORT

Top: 360mm / 240mm

Side: 240mm

FAN SUPPORT

Top: 120mm x 3

Side: 120mm x 2

Second Chamber: 140mm x 1 (Pre-installed) + 120mm x 2

Bottom: 120mm x 3

Rear: 120mm x 2

INCLUDED FANS

Side (Second Chamber): 140mm x 1

FAN CONNECTOR

4-Pin PWM

DUST FILTER

Removable Bottom Dust Tray x 1

I/O Ports

Power Button x 1

USB 3.0 Type A x 2

USB 3.2 Type C x 1

Audio x 1

WARRANTY

1 Year

*Change Of Mind/I Do Not Want The Product Anymore/Return Policy Does NOT Apply For Order(s) & Product(s) Which Has Been Used, Unboxed, Unsealed, Tampered, Not Returned Along Full Documentation/Tax Invoice & Original Retail Box With Shipping Packing

*For Warranty Purposes, Please Refer Our Official Website T&C
