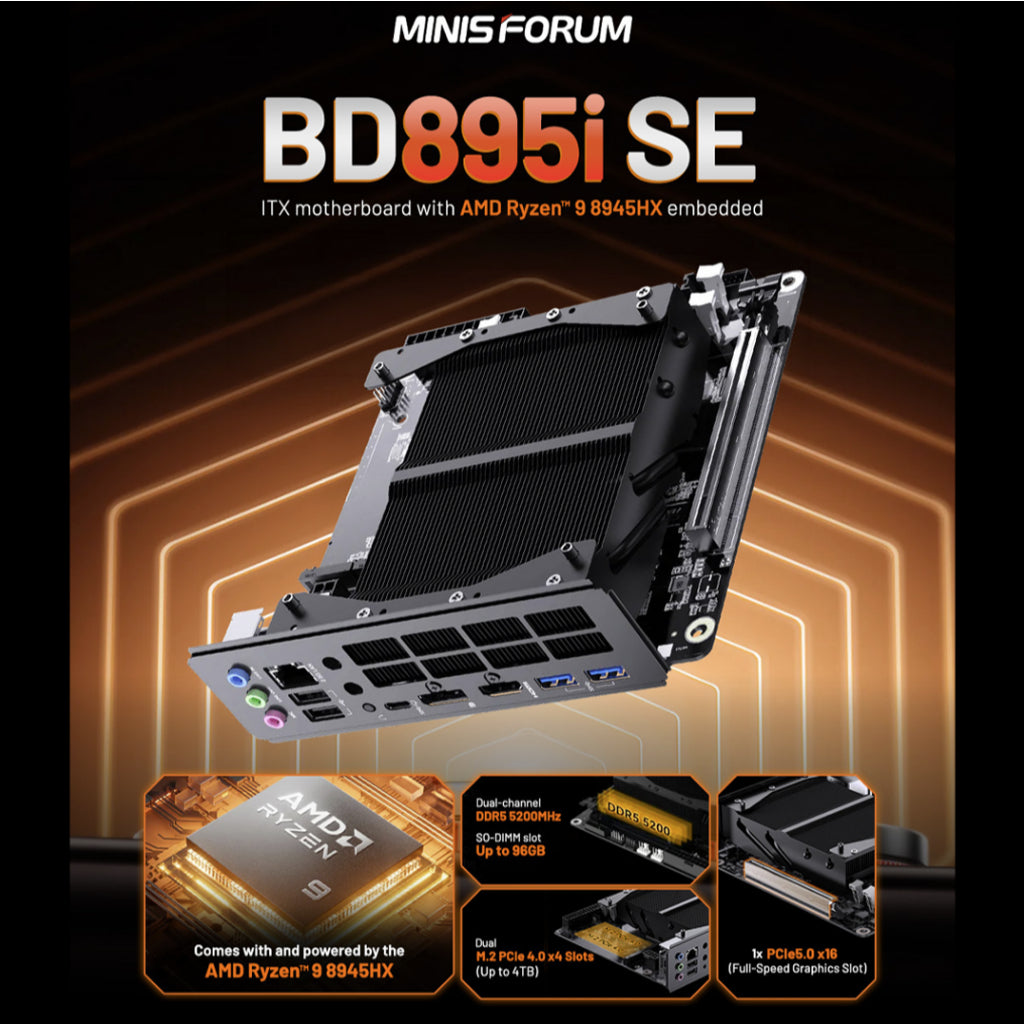

MINISFORUM BD895I SE Motherboard AMD RYZEN 9 8945HX / DDR5-5200 SO-DIMM

PENTING . IMPORTANT . 注意

KEPADA PELANGGAN YANG DIHORMATI,

SEBELUM MEMBUKA BUNGKUSAN SILA BUAT RAKAMAN VIDEO

BAGI TUJUAN TUNTUTAN KEROSAKAN DAN KEHILANGAN

SEBARANG TUNTUTAN TANPA RAKAMAN TIDAK AKAN DILAYAN.

SEGALA KERJASAMA AMATLAH DIHARGAI

DEAR VALUED CUSTOMER,

BEFORE UNBOXING THE PACKAGE PLEASE MAKE A

VIDEO RECORDING FOR FAULTY AND DAMAGE CLAIM PURPOSES

尊贵的顾客，请在打开包裹之前录制一段视频，

以确保产品损坏的情况有证据。未附带录制视频的索赔将无法受理。

谢谢您的合作

BD895i SE Specification

Product

BD775i SE

BD895i SE

CPU

Processor: AMD Ryzen™ 7 7745HX

Total Cores: 8

Total Threads: 16

Frequency: 3.6 GHz

Max Turbo Frequency: 5.1 GHz

TDP: 100W

Processor: AMD Ryzen™ 9 8945HX

Total Cores: 16

Total Threads: 32

Frequency: 2.5 GHz

Max Turbo Frequency: 5.4 GHz

TDP: 100W, 120W Max Turbo

CPU Cooler height: 37mm(12cm fan not included)

GPU

Graphics Cards: AMD Radeon™ 610M

Graphics Cards: AMD Radeon™ 610M

PCIe Expansion

1×PCle 5.0×16 Connector

1×PCle 5.0×16 Connector

Memory

Memory Type: DDR5 (SO-DIMM x 2)

Max Speed Support: 5200MHz

Max Capacity Support: 96GB

Memory Type: DDR5 (SO-DIMM x 2)

Max Speed Support: 5200MHz

Max Capacity Support: 96GB

Storage

Storage Type: 2xM.2 2280 NVME SSD Slot (up to 4TB)(PCle4.0x4)

Optional SKU SSD Capacity: N/A

Storage Type: 2xM.2 2280 NVME SSD Slot (up to 4TB)(PCle4.0x4)

Optional SKU SSD Capacity: N/A

Wireless Connectivity

M.2 2230 (Key E) WiFi Slot, Module not included

M.2 2230 E-Key(PCle Only)

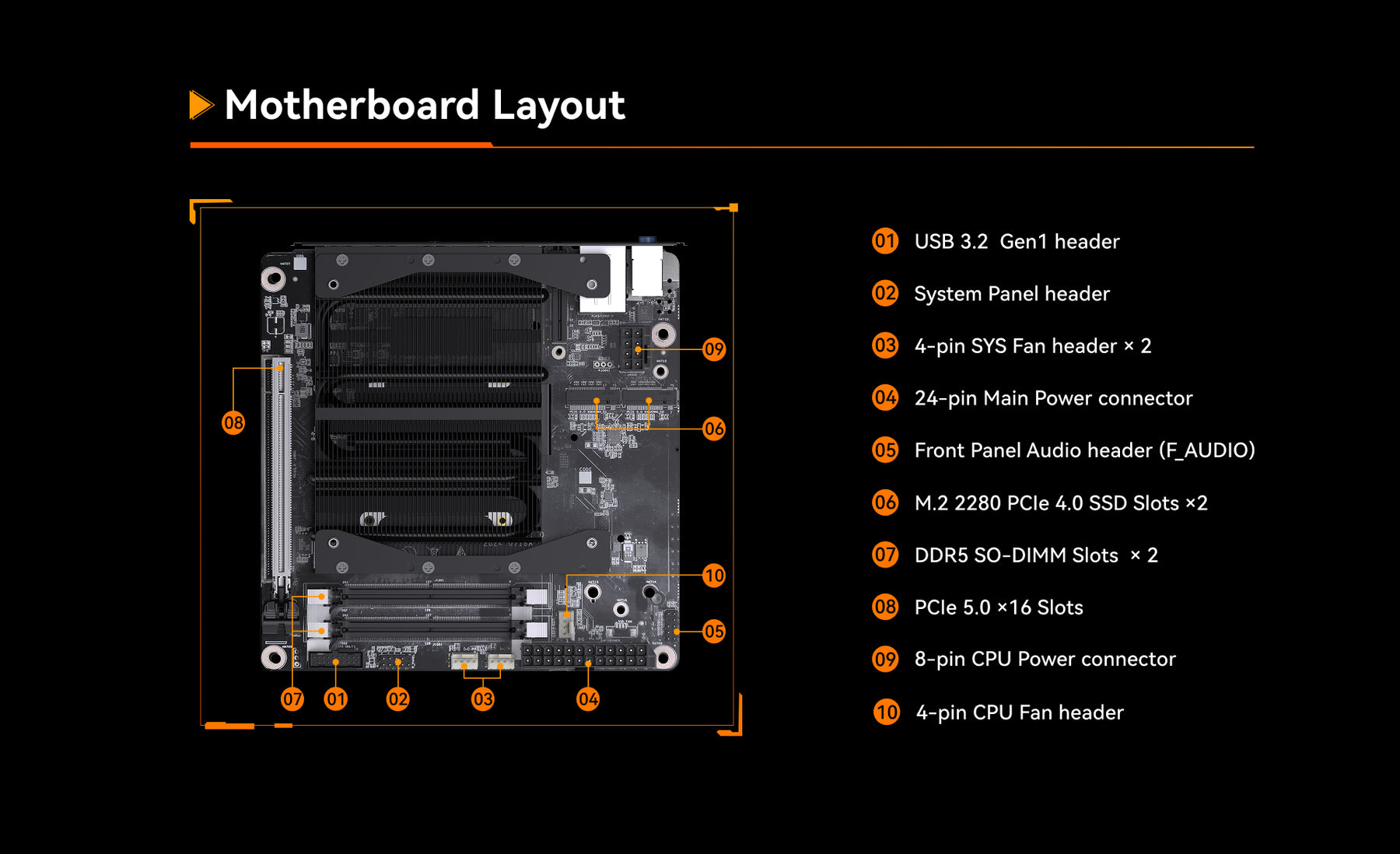

Headers & Connectors

1×24-pin Main Power connector

1x8-pin CPU Power connector

1x4-pin CPU Fan header

2 x 4-pin SYS Fan header

1×System Panel header

1xFront Panel Audio header (F_AUDIO)

1×USB 3.2 Gen1 header

1×24-pin Main Power connector

1x8-pin +12V CPU Power connector

1x4-pin CPU Fan header

2 x 4-pin SYS Fan header

1×System Panel header

1xFront Panel Audio header (F_AUDIO)

1×USB 3.2 Gen1 header

Video Output

HDMI™ 2.1 FRL x 1 (Up to

8K@60Hz/4K@120Hz)

DP 1.4 x 1 (Up to 8K@60Hz/4K@120Hz)

1 x USB-C (Up to 8K@60Hz/4K@120Hz)

HDMI™ 2.1 FRL x 1 (Up to

8K@60Hz/4K@120Hz)

DP 1.4 x 1 (Up to 8K@60Hz/4K@120Hz)

1 x USB-C (Up to 8K@60Hz/4K@120Hz)

Audio Output

HDMI™ x1

Line Out x1

HDMI™ x1

Line Out x1

Audio Input

Line in x1

Mic x1

Line in x1

Mic x1

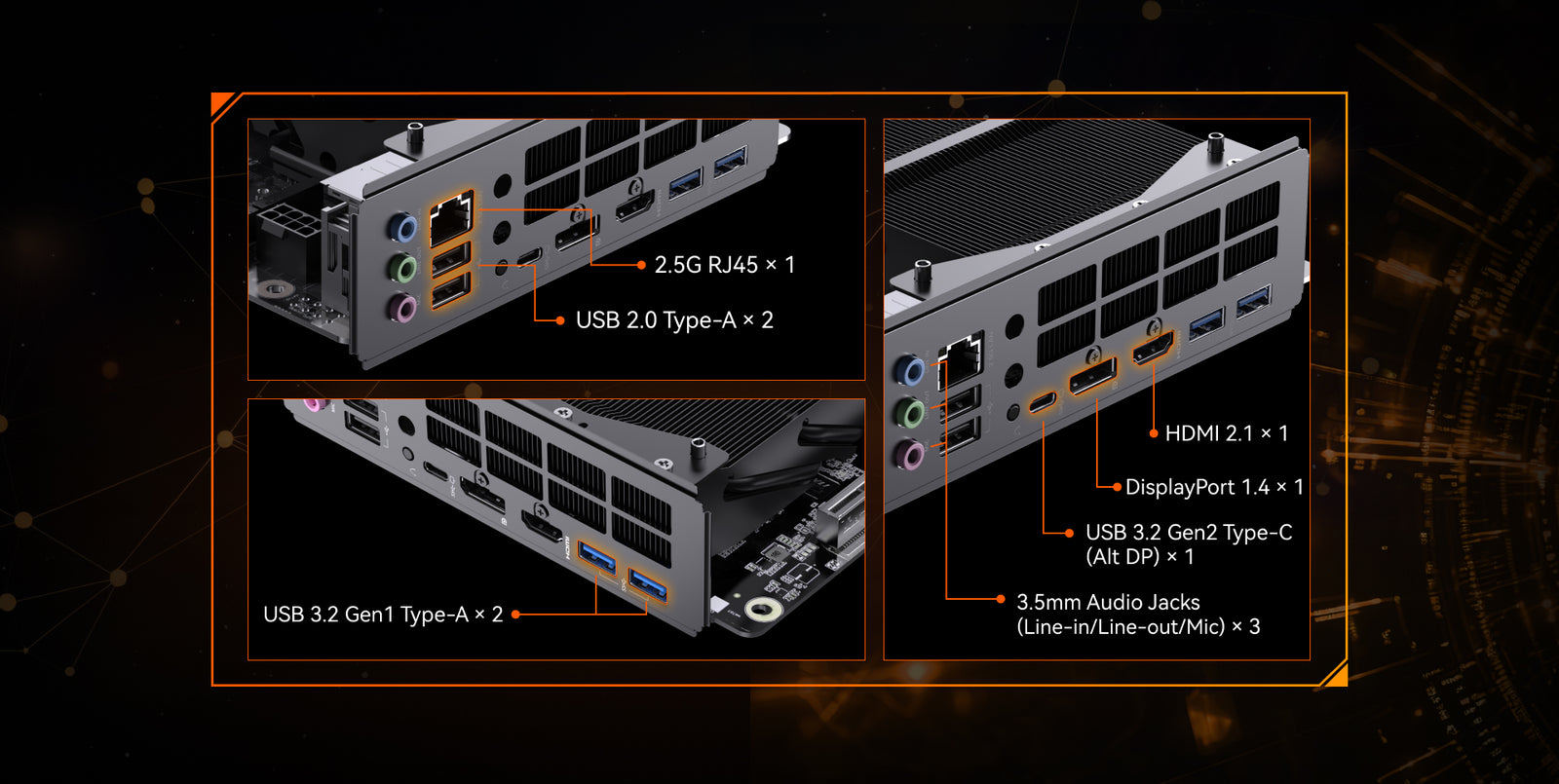

I/O Ports

2.5Gigabit LAN(RJ45) x1

USB Type A(USB2.0) x2

USB Type A(USB3.2 Gen1) x2

USB Type C (USB3.2 Gen2)(Alt DP) x1

HDMI2.1 x1

DP1.4 x1

Line in x1

Line Out x1

Mic x1

CLR COMS x1

2.5Gigabit LAN(RJ45) x1

USB Type A(USB2.0) x2

USB Type A(USB3.2 Gen1) x2

USB Type C (USB3.2 Gen2)(Alt DP) x1

HDMI2.1 x1

DP1.4 x1

Line in x1

Line Out x1

Mic x1

CLR COMS x1

Power

ATX Power(>200W)

ATX Power(>200W)

OS Support

Windows 11

Windows 11

Dimensions

170x170x1.6mm(LWH)

170x170x1.6mm(LWH)
