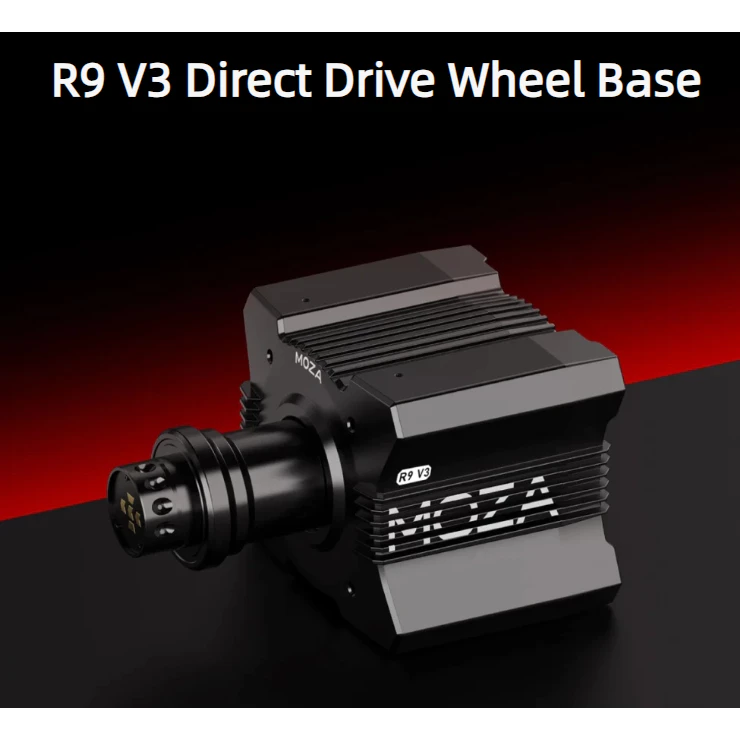

The V3 version supports iRacing 360Hz mode and features a 21-bit magnetic encoder with a resolution of up to 2.09 million.
SPECIFICATION
Platform
PC
FFB Drive System
Direct Drive
Communication Method
R9 V1: Wireless
R9 V2: Wired
Max Wheel Rotation
Limitless
Housing Material
Aviation Grade Aluminum Alloy
Color
Black
Peak Torque
9 Nm
Peak Power
180W
Input Voltage
110V~220V AC —> 36V DC
USB Refresh Rate
1000Hz
Encoder Resolution
32768 ppr (15-bits)
Indicator
YES
App Functions
Supported
Quick Release
Supported
Connection Ports
Power, DC Input, E-stop, USB, Dash
Accessories
User manual, Warranty card, Power supply, USB cable, Toolkit
Mounting Method
Bottom mount
Side Mount Option
With optional side mount bracket
Desk Clamp
Optional
Emergency Stop Switch
Optional
Online Firmware Upgrade
Applicable
Firmware Update
Applicable
Dimension (L x W x H)（mm）
240*157*124
Weight
6.8kg
WHAT'S INBOX
● Wheel Base R9
● Power Supply
● Power Cord – AC cable (1.5m) & DC cable (1.8m)
● Data Cable (1.8m)
● Screw Kit
● Cloth Bag
● Quick start guide & Warranty card
● MOZA Sticker
