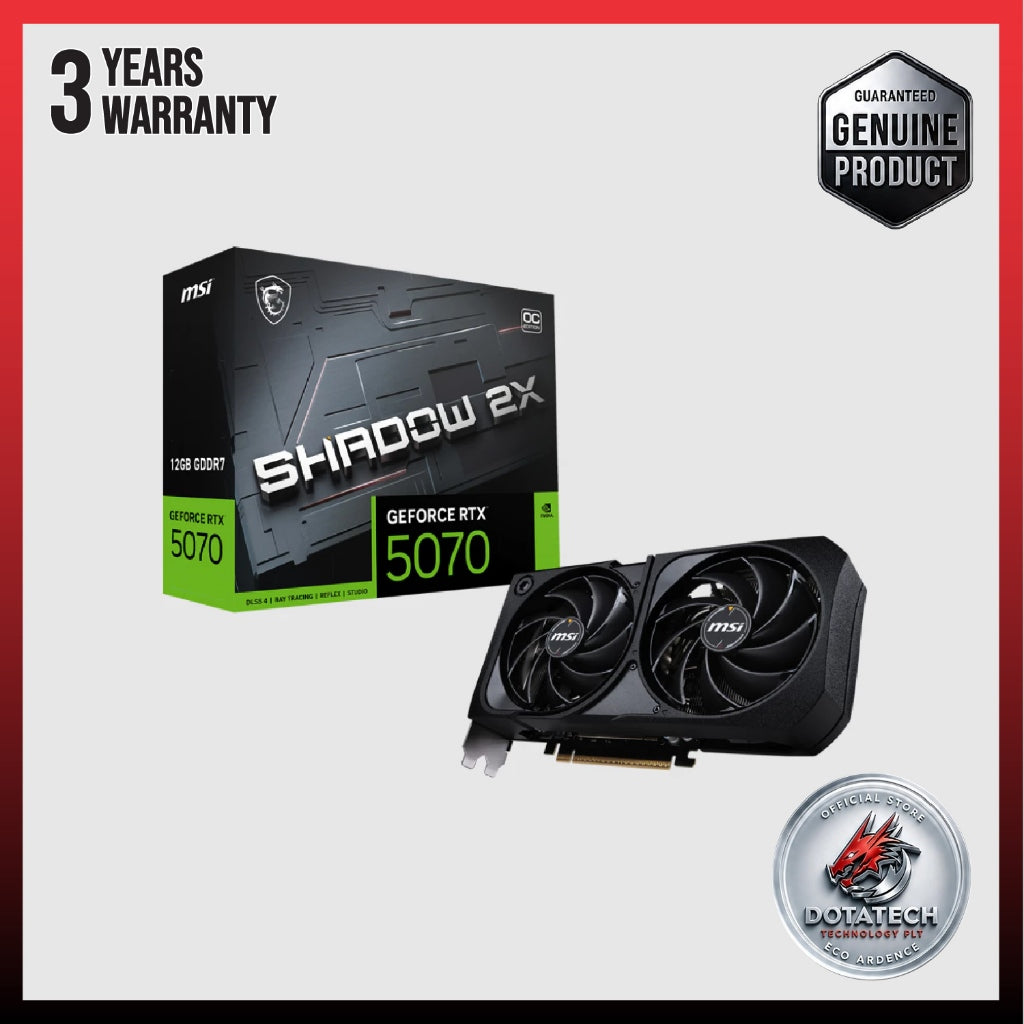

MSI GeForce RTX 5070 12G SHADOW 2X OC 12GB GDDR7 192bit DUAL FAN DisplayPort x3 HDMI x1 SFF-Ready Graphics Card

GeForce RTX 5070 12G SHADOW 2X OC

Powered by the NVIDIA Blackwell architecture and DLSS 4

SFF-Ready Enthusiast GeForce Card

Core Clocks:

Extreme Performance: 2557 MHz (MSI Center)

Boost: 2542 MHz

TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.

Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.

Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.

MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

SPECIFICATIONS

Marketing Name GeForce RTX 5070 12G SHADOW 2X OC

Model Name G5070-12S2C

Graphics Processing Unit NVIDIA GeForce RTX 5070

Interface PCI Express Gen 5

Core Clocks Extreme Performance: 2557 MHz (MSI Center) Boost: 2542 MHz

CUDA CORES 6144 Units

Memory Speed 28 Gbps

Memory 12GB GDDR7

Memory Bus 192-bit

Output DisplayPort x 3 (v2.1b) HDMI x 1 (As specified in HDMI 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) HDCP Support Y

Power consumption 250 W

Power connectors 16-pin x 1 (ATX 3.1 PSU recommended)

Recommended PSU 650 W

Card Dimension (mm) 231 x 126 x 50 mm

Weight (Card / Package) 724 g / 1107 g

DirectX Version Support 12 Ultimate

OpenGL Version Support 4.6

Maximum Displays 4

G-SYNC technology Y

Digital Maximum Resolution 7680 x 4320
