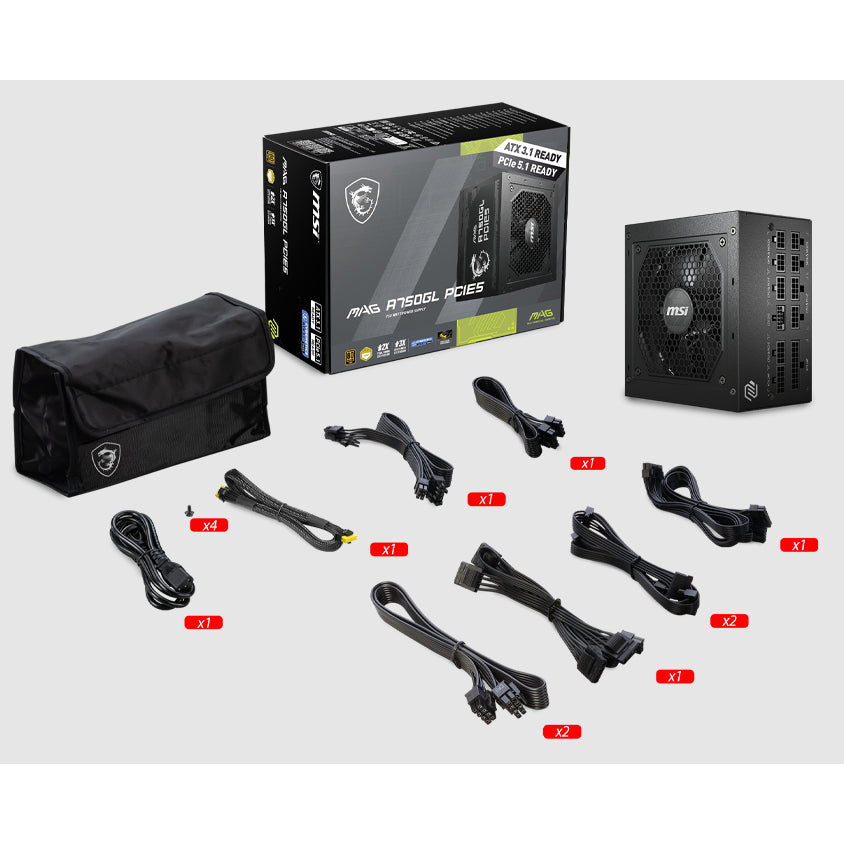

MSI MAG A750GL / A850GL / A1000GL / A1250GL 80 PLUS GOLD ATX 3.1 & PCIE 5.1 FULL MODULAR ATX POWER SUPPLY PSU

ATX 3.1 ready, native PCIe 5.1 dual-color 16-pin cable

Supports NVIDIA® GeForce RTX™ 40 Series graphics cards

Full modular design,Flat cables

80 Plus Gold certified for high efficiency

Active PFC design, Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP

LLC Full Bridge Topology with DC-DC module design

A750GL/ A850GL - 120mm Fluid Dynamic Bearing Fan

A1000GL/ A1250GL - 135 mm Fluid Dynamic Bearing Fan

SPECIFICATIONS

Efficiency Rating 80 PLUS Gold (up to 90%)

Modular Yes (full modular)

Fan Size 120 mm - A750GL/ A850GL

Fan Bearing Fluid Dynamic Bearing

Dimensions (DxWxH) 140 x 150 x 86 mm - A750GL/ A850GL

PFC Type Active PFC

Input Voltage Range 100~240 VAC

Input Frequency Range 47-63Hz

Protection OCP / OVP / OPP / OTP / SCP / UVP

Power Watt 750W

Power Excursion 1500W (*up to 200% of the PSU's rated power for 100μs)

ATX (24 pin) 1

EPS (4+4 pin) 2

PCI-E 5.0 (16 pin) 1 (450W)

PCI-E (6+2 pin) 3

SATA (15 pin) 8

MOLEX (4 pin) 4

FDD (4 pin) 1

Power Watt 850W

Power Excursion 1700W (*up to 200% of the PSU's rated power for 100μs)

ATX (24 pin) 1

EPS (4+4 pin) 2

PCI-E 5.0 (16 pin) 1 (600W)

PCI-E (6+2 pin) 4

SATA (15 pin) 8

PERIPHERAL (4 pin) 4

FDD (4 pin) 1

A1000GL

Fan Size 135 mm

Dimensions (DxWxH) 150 x 150 x 86 mm

Power Watt 1000W

Power Excursion 2000W (*up to 200% of the PSU's rated power for 100μs)

ATX (24 pin) 1

EPS (4+4 pin) 2

PCI-E 5.1 (16 pin) 1 (600W)

PCI-E (6+2 pin) 4

SATA (15 pin) 12

PERIPHERAL (4 pin) 4

FDD (4 pin) 1

A1250GL

Power Watt 1250W

Power Excursion 2500W (*up to 200% of the PSU's rated power for 100μs)

ATX (24 pin) 1

EPS (4+4 pin) 2

PCI-E 5.1 (16 pin) 1 (600W)

PCI-E (6+2 pin) 4

SATA (15 pin) 12

PERIPHERAL (4 pin) 4

FDD (4 pin) 1
