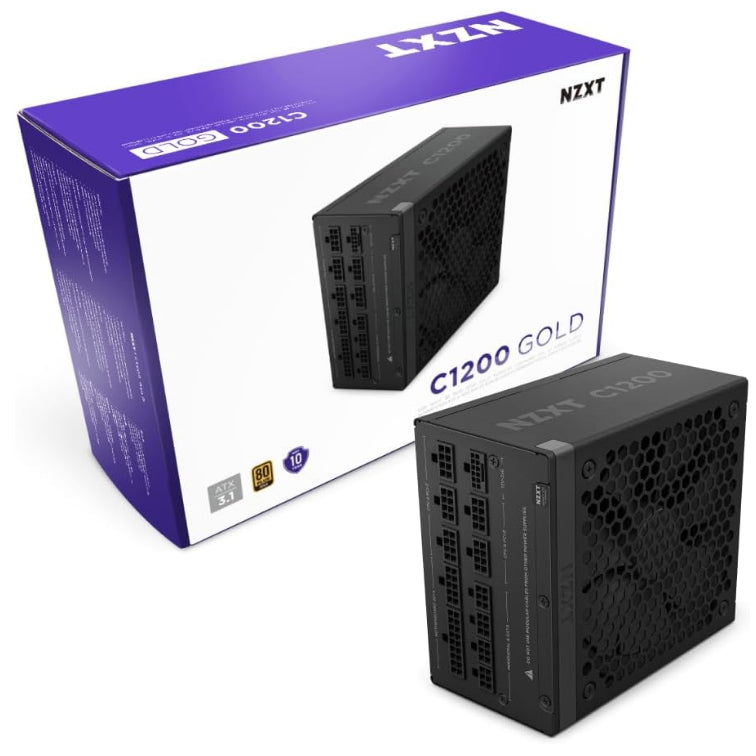

NZXT 2024 MODEL C850/ C1000/ C1200 80 PLUS GOLD FULL MODULAR ATX 3.1 POWER SUPPLY PSU

• Compliant with the ATX 3.1 standard to fuel high-performance PC components with stability, efficiency, and power spike resistance.

• Durable, heat-resistant 12V-2x6 connector pumps up to 600 watts to NVIDIA® GeForce RTX™ 40 Series graphics cards.

• 135mm fluid dynamic bearing fan with Zero Fan Mode is completely silent when under 50% load.

• 100% premium Japanese capacitors improve hold-up time and minimal ripple noise, ensuring reliable and stable power delivery.

• Fully modular design allows for only connecting essential cables, reducing clutter for better airflow and a neater build.

• Compact form factor frees up valuable room for cable management and more case airflow.

• Thanks to high-quality construction and rigorous product testing, NZXT PSUs are backed by a 10-year warranty.

Output Connectors

24-pin ATX Power Cable 1

4+4-pin CPU Power Cable 1

8-pin CPU Power Cable 1

6+2-pin PCIe Power Cable 3

16-pin (12+4) 12V-2x6 PCIe Cable 1

SATA Cable 12

Peripherals Cable 4

Cable Specs

24-pin ATX Power Cable 600mm with nylon sleeving

4+4-pin CPU Power Cable 700mm with nylon sleeving

8-pin CPU Power Cable 700mm with nylon sleeving

6+2-pin PCIe Power Cable 650mm with nylon sleeving

16-pin (12+4) 12V-2x6 PCIe Cable 650mm with nylon sleeving

SATA Cable 500 + 150mm

Peripherals Cable 500 + 150mm

Fan Specs

Dimensions 135 x 135 x 25 mm

Speed 2300 ± 10% RPM

Airflow 93.02 CFM (Min.)

Noise 44.5 dBA max

Bearing Fluid Dynamic Bearing (FDB)

Dimensions

Width 150 mm

Height 86 mm

Depth 160 mm

General

Material(s) Steel, PCB and Plastic

Compliance Standard ATX12V v3.1 / EPS12V v2.92

Regulation & Certification FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65

Warranty 10 Years

Model Number

C850 - PA-8G2BB-UK

C1000 - PA-0G2BB-UK

C1200 - PA-2G2BB-UK
