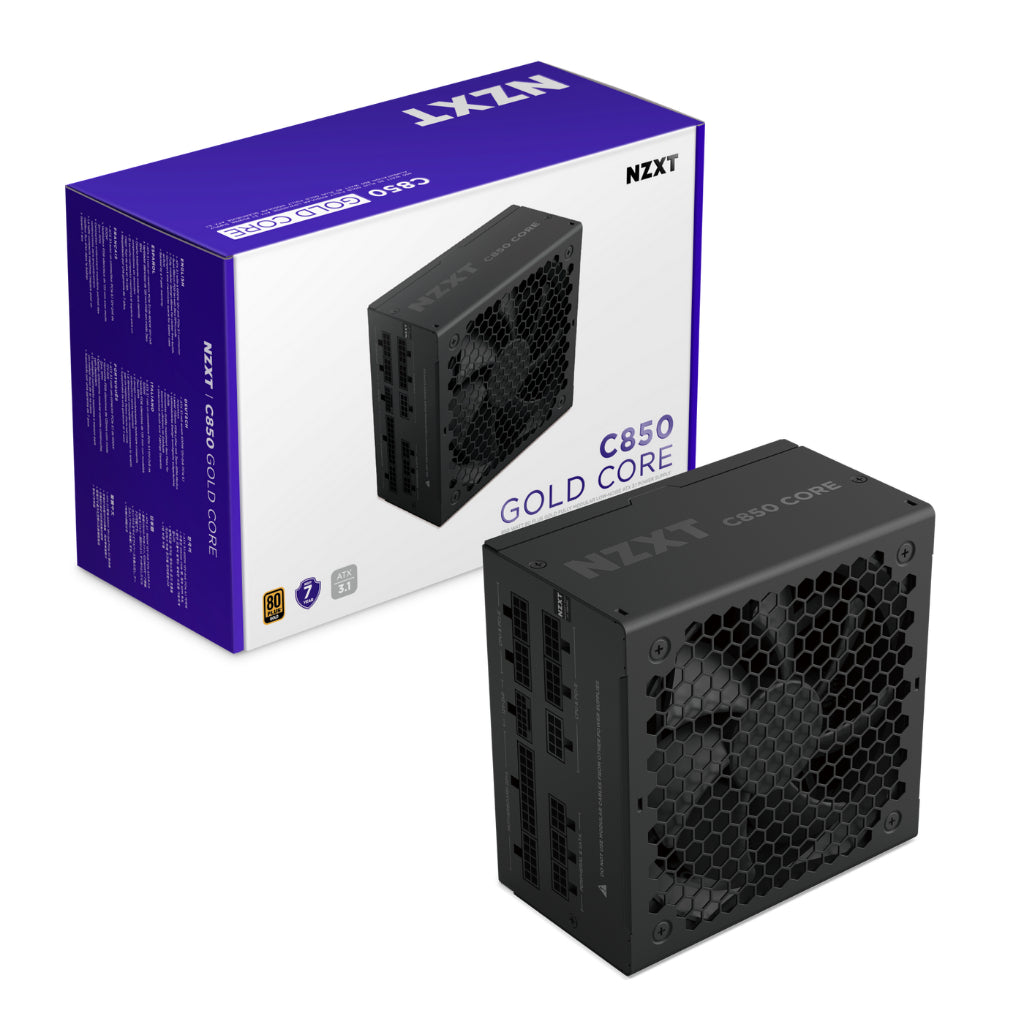

NZXT C SERIES GOLD CORE C750 / C850 / C1000 80 PLUS ATX3.1 FULL MODULAR POWER SUPPLY PSU BLACK

PENTING . IMPORTANT . 注意

KEPADA PELANGGAN YANG DIHORMATI,

SEBELUM MEMBUKA BUNGKUSAN SILA BUAT RAKAMAN VIDEO

BAGI TUJUAN TUNTUTAN KEROSAKAN DAN KEHILANGAN

SEBARANG TUNTUTAN TANPA RAKAMAN TIDAK AKAN DILAYAN.

SEGALA KERJASAMA AMATLAH DIHARGAI

DEAR VALUED CUSTOMER,

BEFORE UNBOXING THE PACKAGE PLEASE MAKE A

VIDEO RECORDING FOR FAULTY AND DAMAGE CLAIM PURPOSES

尊贵的顾客，请在打开包裹之前录制一段视频，

以确保产品损坏的情况有证据。未附带录制视频的索赔将无法受理。

谢谢您的合作

Dimensions

Width

150 mm

Height

86 mm

Depth

150 mm

General

Wattage

750 W

Form Factor

ATX

ATX Version

3.1

80 PLUS Rating

Gold

Cybenetics Efficiency

Platinum

Cybenetics Noise

A++

Modular

Fully modular

Capacitors

105°C performance capacitors

Cable Type

Individually embossed with cable comb

Zero RPM Fan Mode

Yes

Cable Length & Connector Quantity

24-pin ATX Power Cable

600 mm (1)

4+4-pin CPU Power Cable

700 mm (1)

8-pin CPU Power Cable

700 mm (1)

6+2-pin PCIe Power Cable

650 mm (2)

16-pin (12+4) 12V-2x6 PCIe Power Cable

650 mm (1) (300W)

SATA Cables

500 + 100 mm (8)

Peripherals Cable

500 + 100 mm (3)

AC Input Rating

100 – 240 Vac

10 – 5 A, 50 – 60 Hz

200 – 240 Vac (South Korea)

5 A, 50 – 60 Hz

DC Output Rating

+3.3 V and +5 V

20 A (120 W)

+12 V

62.5 A (750 W)

5VSB

3 A (15 W)

Total

750 W

Energy Efficiency

80 PLUS Rating

Gold

10% Load

87.9% @ 115 V

20% Load

91.63% @ 115 V

50% Load

92.11% @ 115 V

100% Load

89.53% @ 115 V

Fan Specs

Size

135 mm

Type

PWM

Speed

2,300 ± 10% RPM

Airflow

103.36 CFM

Noise Level

40.5 dBA

Bearing

Fluid dynamic bearing

Operation

MTBF

100,000 hours

Temperature

0 – 50°C (Continuous Full Load)

Electrical Features

PF Correction

Active @ 0.99

Protections

OVP (Over Voltage), UVP (Under Voltage), SCP (Short Circuit), OTP (Over Temperature), OPP (Over Power), OCP (Over Current)
