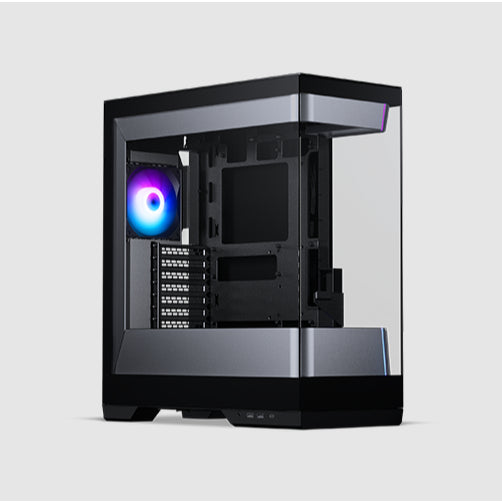

PHANTEKS Evolv S2 Mid-Tower Tempered Glass ATX PC Case w/ 4x DRGB Fans

Feature

• Unique see-through tempered glass chassis design

• Integrated D-RGB Lighting throughout the chassis

• Support for ATX rear-connect mainboards

• Four high airflow M25-120 mm D-RGB fans are included and built-in

• All fans and radiators fully integrate into the chassis for a clean look

• Triple 120mm fan positions in the bottom for air intake and direct GPU cooling

• Triple 120mm fan positions in the top with dedicated 360 radiator clearance

for exhaust

• Rear 120mm fan position for a total of 7x 120mm fan positions

Specifications

General Data

Product Dimension (D x W x H) 455 x 230 x 525 mm

Form Factor Mid Tower

Mainboard Support ATX, Micro-ATX, Mini-ITX, E-ATX (up to 280mm wide)

Rear-Sided Mainboard Support Yes, ATX

Integrated Fans Look Yes

Cable Management Cover Silkscreen on tempered glass

Integrated D-RGB Lightstrip Yes

Materials Steel Chassis, Tempered Glass, ABS plastic covers

Front IO 1x USB-C 3.2 Gen2x2 + 2x USB 3.0

Microphone/Headphone combo

Reset Button

Power Button

Connectors Power Switch

Reset Switch

HD-audio

USB 3.0

USB-C Type-E

Warranty 5 Years Limited

Weight 9.90 kg

What's Included 1x Evolv S2 chassis

1x M25-120 mm Regular D-RGB fan

3x M25-120 mm Reverse D-RGB fan

1x Storage Bracket (2x HDD / 2x SSD)

1x Accessory box with necessary screws

Expansion

PCI Slots 7

Internal 3.5" Bay 2 (1x if 2x SSD installed)

Internal 2.5" Bay 2 (0x if 2x HDD installed)

Vertical GPU Support Yes, with optional bracket: PH-VGPUKT4.0_03R or PH-PGPUKT4.0_01

Fans & Radiators

Top Fan 3 x 120 mm

Bottom Fan 3 x 120 mm (3x included)

Rear Fan 1 x 120 mm (1x included)

Top Radiator Up to 360

Clearances

GPU Length 395 mm

GPU Width 175 mm

CPU Cooler Height 175 mm

Power Supply 210 mm

Top 360 Radiator 410 x 125 x 55 mm
